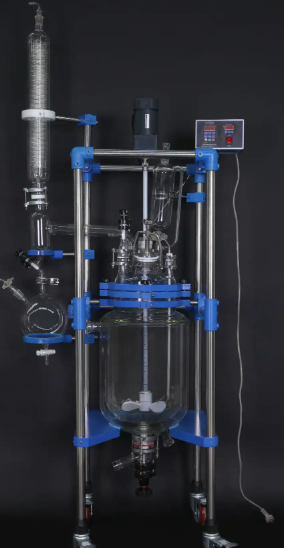

30L Multi-functional Distillation Jacketed Glass Reactor

Product features:

This multi-functional distillation glass reactor has obvious integrated advantages. The integrated distillation system eliminates the need for separate installation of reaction and distillation equipment, reducing the occupation of laboratory space and the cost of equipment transfer. The adjustable reflux ratio controller can realize precise control of the distillation process, improving the separation efficiency of the product. The 500mm stainless steel packed column with stainless steel spring packing has high separation efficiency, which can separate components with a boiling point difference of only 2-3℃. The sealed design adopts mechanical seal and PTFE gasket, ensuring good vacuum performance during the distillation process. In addition, the detachable packing column and pipeline design makes cleaning and replacement of packing more convenient.

Product specifications:

The detailed specifications of this 30L multi-functional distillation glass reactor are as follows: working volume is 30 liters, overall dimensions are 1100mm in length, 900mm in width and 1800mm in height, total weight is 220kg. The jacket working pressure is ≤0.5MPa, and the vacuum degree can reach up to -0.098MPa. The stirring shaft is made of 316L stainless steel, with a standard ground joint of 40/45. The power supply is AC220/380V 50Hz, and the motor power is 1.1kW. The temperature control range is from room temperature to 220℃, and the stirring speed is adjustable from 0 to 800rpm. The distillation column height is 500mm, and the packing volume is 2L. The reflux ratio can be adjusted from 0 to 100.

Product application:

This 30L multi-functional distillation jacketed glass reactor is widely used in multiple scenarios. It is suitable for the synthesis and purification of organic chemical products, such as the synthesis of pharmaceutical intermediates and the separation of organic solvents. For natural product enterprises, it can be used for the extraction and separation of plant essential oils, flavonoids, and other active ingredients. It is also suitable for the production of daily chemical raw materials, such as the synthesis of surfactants and the purification of essence. In addition, it can be used for the production of food additives, such as the extraction and purification of food flavors.
