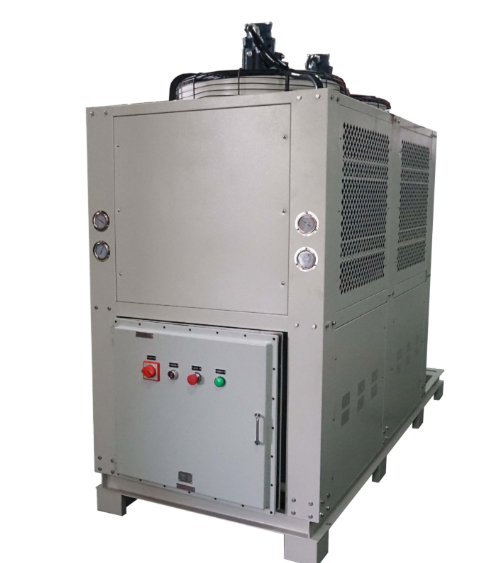

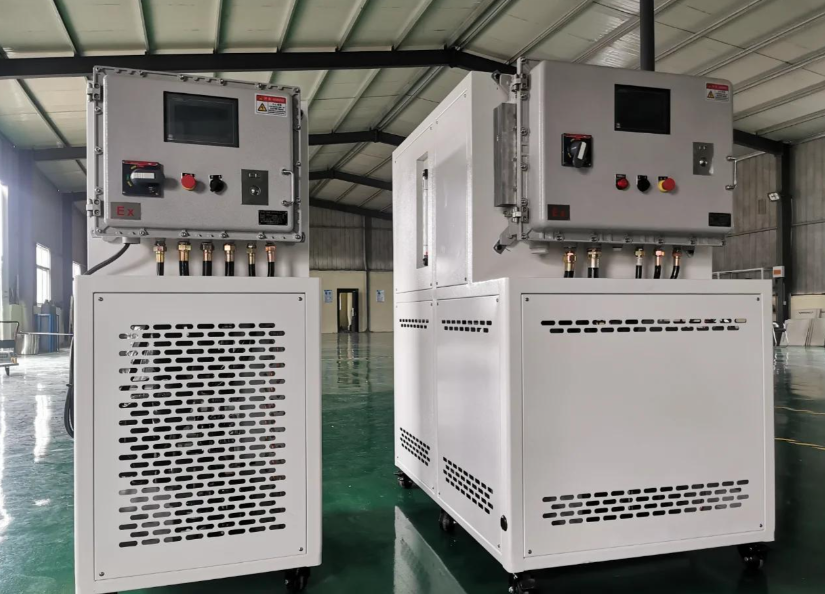

The core advantage is that it has passed the double explosion-proof certification of ATEX and IECEx, adopting a fully explosion-proof structural design. All electrical components meet explosion-proof standards and can be safely used in Zone 1/2 flammable and explosive environments. It adopts an explosion-proof fully enclosed compressor with stable cooling efficiency. The explosion-proof touch screen supports remote operation, eliminating the need for personnel to approach high-risk areas. The carbon steel explosion-proof coating shell is corrosion-resistant and adapts to chemical media. Compared with ordinary explosion-proof temperature control equipment, it is equipped with an intelligent leakage detection system, which can real-time monitor the medium leakage of the pipeline, solving the safety hazard problem of temperature control equipment in dangerous scenarios.
The overall size of the machine is 900mm×750mm×1400mm, with a net weight of 180kg. The circulating pipeline interface is G1 inch, the power supply is compatible with AC380V 50Hz, the medium storage volume is 25L, the maximum working pressure is 0.3MPa, and the operating noise is ≤60dB. It uses R404A environmentally friendly refrigerant, built-in explosion-proof pressure relief valve, and supports explosion-proof remote control modules to realize unmanned operation.
It is applicable to temperature control of flammable and explosive solvent reactions in the chemical industry, intermediate synthesis in pharmaceutical explosion-proof workshops, temperature-controlled mixing of paint and coating production, and downhole simulation temperature control experiments in oil exploitation. It can be adapted to explosion-proof reaction kettles, distillation towers and other high-risk industrial equipment, meeting the precise temperature control needs in dangerous scenarios.
