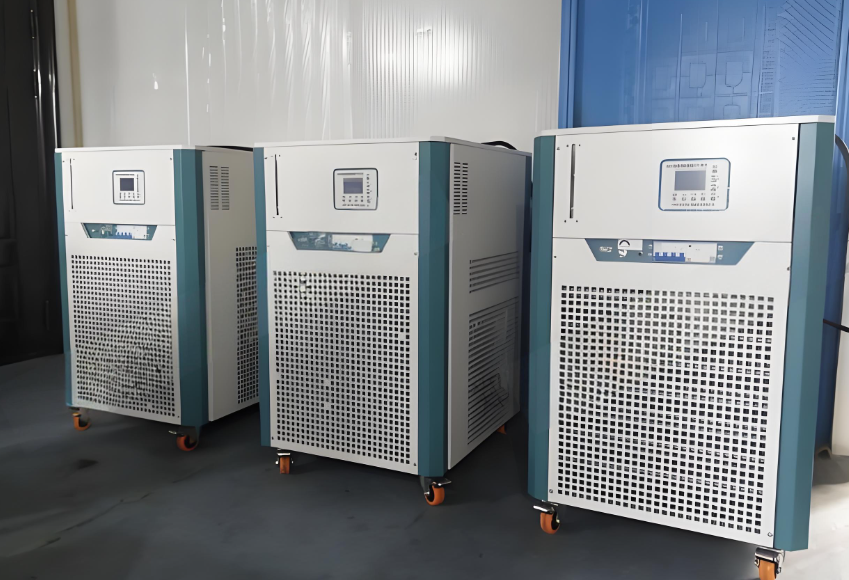

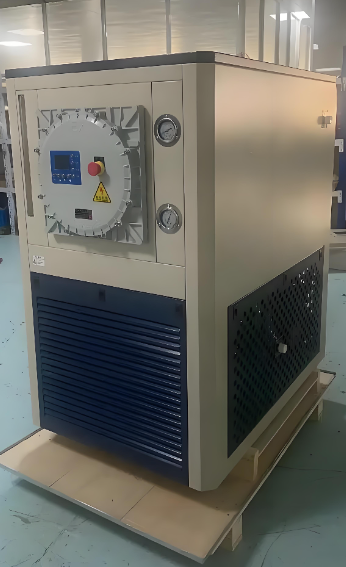

The core advantage lies in the adoption of cascade compressor cooling scheme to achieve wide-range stable temperature control, with ±0.1℃ accuracy far exceeding the ordinary industry models, solving the pain points of traditional high and low temperature equipment such as large temperature fluctuation and slow response. It is equipped with a 7-inch touch screen, which can view the temperature curve in real time, set parameters and support remote data transmission. The 304 stainless steel contact material is corrosion-resistant and easy to clean, meeting the laboratory cleanliness requirements. It has multiple safety protection mechanisms, including over-temperature protection, leakage protection and compressor overload protection, to ensure the safe operation of the equipment, and is compatible with a variety of small laboratory test tooling to flexibly adapt to different experimental needs.
The overall size is 600*550*1200mm, with a net weight of 180kg, a maximum circulating flow rate of 20L/min and a working pressure of 0.6MPa. It adopts a fully enclosed cascade refrigeration unit, with a heating power of 3kW and a cooling power of 4.5kW. The touch screen supports Chinese and English switching, can store 100 sets of experimental parameters, and is equipped with circulation inlet and outlet, communication interface and power interface. The overall design is quiet, with operating noise ≤55dB.
It is suitable for sample constant temperature treatment in university chemistry and materials science laboratories, thermal stability testing of materials by third-party testing institutions, high and low temperature performance verification of electronic components, temperature control of small chemical reaction kettles, and basic physics experiment temperature control scenarios of research institutes. It can be matched with supporting experimental equipment such as rotary evaporators and vacuum drying ovens, providing accurate and stable temperature environment for various constant temperature testing scenarios.
