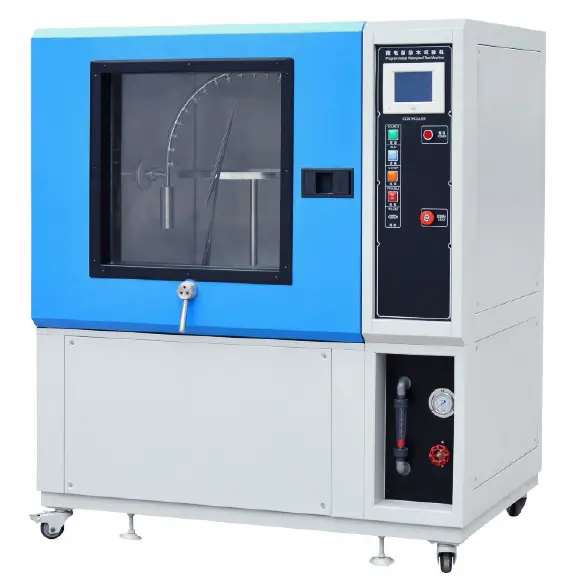

IP Water Spray Test Chamber

Product features:

This water spray test chamber has outstanding advantages: first, it adopts a precision pressure regulating system, which can accurately adjust the spray pressure and water flow rate to meet the test requirements of different IP grades. Second, it is equipped with a rotatable sample platform, which can drive the sample to rotate at a uniform speed during the test, ensuring that all parts of the sample are fully exposed to the water spray. Third, it has an automatic water supply and drainage system, which can automatically circulate the test water and filter impurities, ensuring the cleanliness of the test water. In addition, it is equipped with a large observation window and lighting system, which can observe the test process in real time, and the chamber door is equipped with a sealing rubber strip to avoid water leakage during the test.

Product specifications:

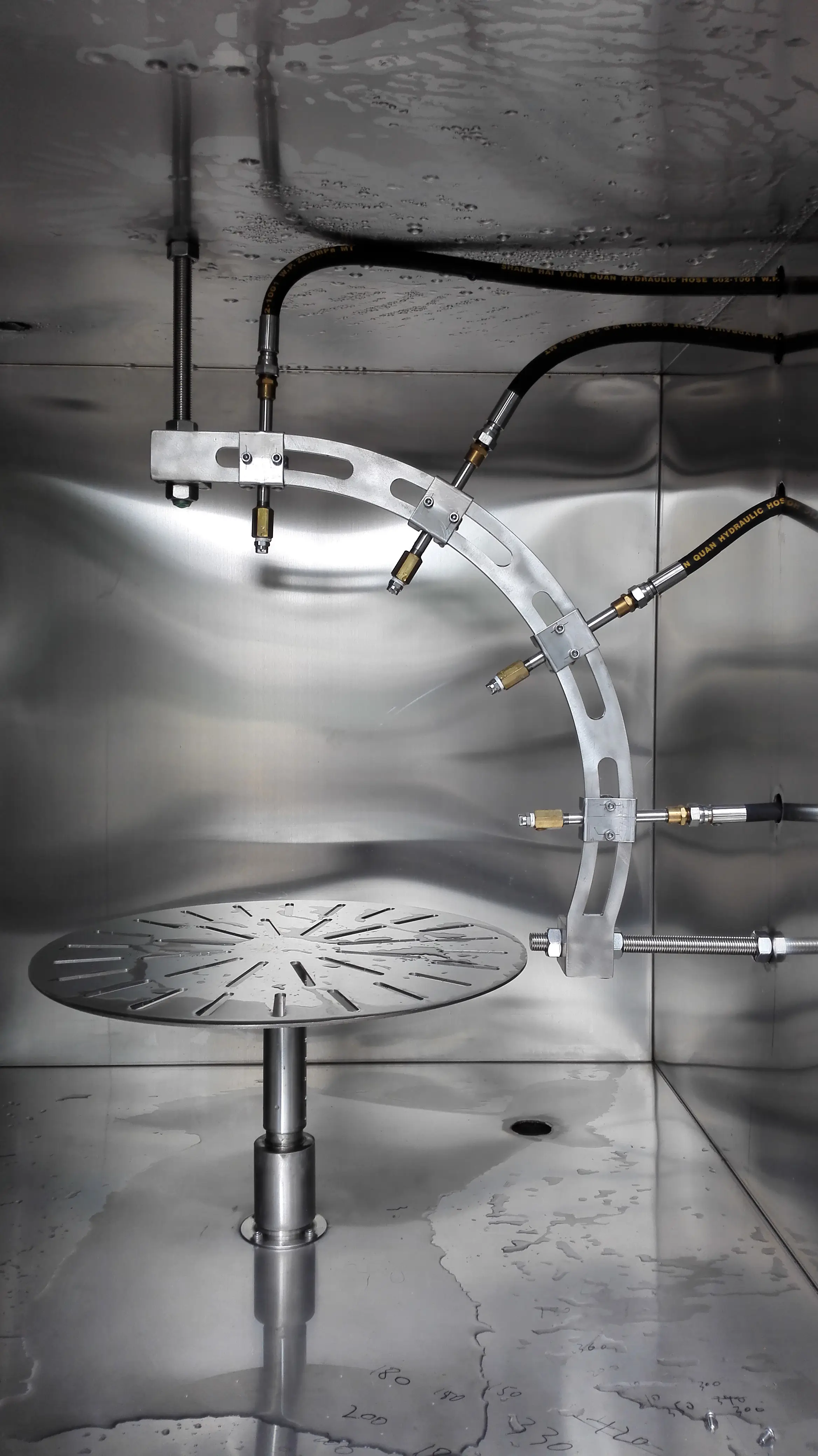

The external dimensions are 900*1000*1300mm, and the internal dimensions are 700*800*900mm with a volume of 200L. The spray system is equipped with two sets of spray devices: vertical spray and inclined spray, which can meet the test requirements of IPX3, IPX4, IPX5 and IPX6. The sample platform has a load capacity of 100kg, and the rotation speed can be adjusted steplessly. The water tank has a capacity of 100L, which is equipped with a filtering device to remove impurities in the water. The power consumption is about 2.0KW, and the working voltage is 220V 50/60Hz. The equipment also has a manual/automatic dual control mode, which can switch between manual and automatic control according to test needs.

Product application:

This IP water spray test chamber is mainly used for waterproof performance testing of various products. In the electronics industry, it can test the waterproof performance of mobile phones, headphones, outdoor cameras and other electronic products. In the auto parts industry, it can evaluate the waterproof performance of automotive headlights, door handles and electronic control systems. In the outdoor lighting industry, it can test the waterproof performance of street lamps, solar lamps and searchlights. It can also be used for waterproof testing of military equipment, medical devices and outdoor sports products, helping enterprises to ensure that products can work normally in rainy and humid environments.
