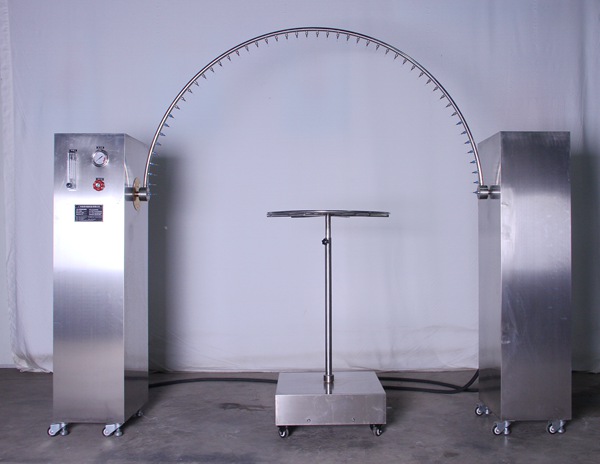

This rain test chamber adopts a fully enclosed spray system with adjustable spray pressure and drop size, which can accurately simulate different rain intensities. The 360° rotatable rotary table can drive the sample to rotate during testing, ensuring that all sides of the sample are evenly exposed to water spray. The touch screen control system allows users to set spray time, rotation speed, and other parameters, supporting automatic operation of the entire testing process. The circulating water supply system uses a filter device to purify the spray water, reducing water waste and ensuring the cleanliness of the testing environment. Multiple safety protection devices prevent equipment damage during long-term testing.
Internal dimensions: 1200*1000*1000mm (nominal volume 1200L), external dimensions: 1500*1300*1800mm, net weight: 450kg. Power supply: AC380V 50Hz, total power: 8kW. The spray arm can move horizontally to adjust the spray distance, and the maximum spray radius is 1.5m. The rotary table has a maximum load capacity of 100kg, and the rotation speed can be adjusted freely according to testing requirements. The equipment complies with international waterproof testing standards such as IEC 60529 and GB/T 4208.
This rain test chamber is widely used in outdoor lighting, automotive parts, electronic communication equipment, medical equipment, and military product industries. It is suitable for waterproof performance testing of outdoor lamps, automotive headlights, electronic enclosures, and communication base station equipment. It can help enterprises verify the protection level of products against rainwater intrusion, pass waterproof certification, and ensure the normal operation of products in rainy environments.
