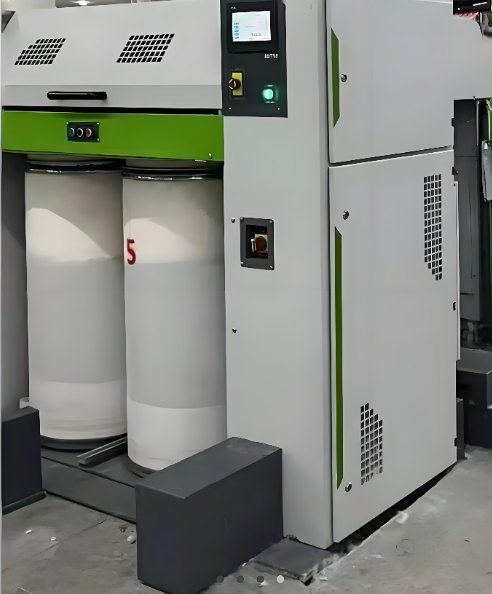

This intelligent IoT-connected weft winding machine features ultra-high winding speed up to 1500m/min, which is 25% faster than ordinary high-speed winding machines, greatly improving large-scale production efficiency. The industrial Internet cloud platform supports real-time remote monitoring of equipment operation status, winding parameters, and production data, allowing enterprise managers to master production progress at any time through mobile phones or computers. The precision tension control system with ±0.3g adjustment accuracy ensures consistent winding density and appearance of each yarn spool, reducing subsequent processing waste. The heavy-duty carbon steel body with nano anti-corrosion coating has excellent wear resistance and corrosion resistance, extending the service life of the equipment. It is equipped with an automatic yarn changing and spool conveying mechanism, reducing labor intensity and improving the degree of automation of the production line. The CE, ISO 9001, and ISO 14001 certifications ensure that it meets international safety, quality, and environmental protection standards, making it suitable for use in global high-end textile factories.
The overall dimensions of this machine are 2500mm (length) × 1200mm (width) × 1600mm (height), suitable for standard large-scale industrial workshop layouts. The net weight is 2200kg, and it requires a 380V 3-phase 50/60Hz power supply for stable operation. The rated power is 18kW, meeting the energy demand of high-speed winding and cloud platform control systems. The maximum spool capacity is 8kg, adapting to large-scale yarn spool specifications for high-volume production. The winding tension can be precisely adjusted within the range of ±0.3g, meeting the strict requirements of high-end textile processing. The industrial Internet cloud platform supports real-time data upload, remote operation, and fault warning, facilitating enterprise production management and equipment maintenance. It is compatible with various types of upstream and downstream textile equipment, and can be integrated into the intelligent production line of the entire factory.
This equipment is mainly applicable to large-scale high-end textile factories, functional fabric manufacturing enterprises, home textile production bases, and industrial textile processing plants. Typical application scenarios include the winding of cone yarn for high-grade clothing fabrics, spool yarn for home textile products, and yarn for industrial textiles such as filter materials and safety belts. It can be integrated into the fully automated intelligent textile production line, realizing unmanned winding operation and real-time production data management, helping enterprises improve production efficiency, reduce labor costs, and realize intelligent and standardized production management. It is especially suitable for large-scale textile enterprises that need to improve their intelligent production level and meet international quality and environmental protection standards.
