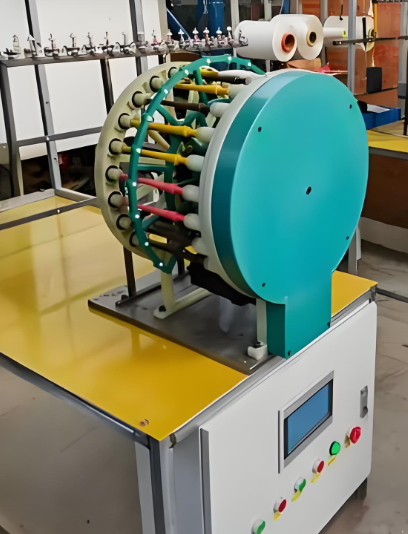

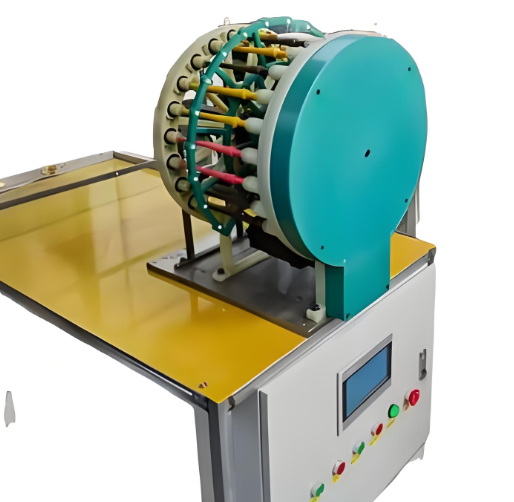

This knitting-specific weft winding machine adopts an intelligent servo drive system to achieve precise speed control, ensuring stable winding speed even at high operating speeds. The real-time tension feedback system can adjust the tension dynamically to meet the requirements of fine denier yarn winding, with a tension accuracy of ±2%, effectively reducing yarn breakage rate. It is equipped with automatic tube changing and yarn break detection functions, which can automatically shut down when a yarn break occurs to avoid waste of raw materials. The machine also supports data statistics and storage, allowing managers to track production data in real time and optimize production plans.
The detailed technical specifications of this high-speed knitting weft winding machine include: spindle speed range of 1500-2000 rpm, maximum winding speed of 1200 m/min, compatible with yarn fineness ranging from 20D to 200D, suitable for yarn tubes with a diameter of 4-7 inches, power supply of 415V 50/60Hz three-phase AC, net weight of 1500 kg, overall dimensions of 2500*1600*1900 mm, production capacity of 50-60 kg per hour, and forced air cooling system for heat dissipation. It has a protection level of IP54 and is equipped with emergency stop and safety protection devices.
This high-speed weft winding machine is mainly applicable to knitted underwear factories, sports fabric production workshops, seamless knitting workshops and other knitted textile production scenarios. It is suitable for winding fine denier chemical fiber, spandex core-spun yarns and other yarns commonly used in knitting production, and can be matched with circular knitting machines, computerized flat knitting machines and other knitting equipment. It can improve the production efficiency of knitted fabric enterprises, reduce the labor intensity of workers, and ensure the consistency of yarn winding quality, which is very suitable for the production of high-end knitted products such as sports clothing, underwear and outdoor fabrics.
