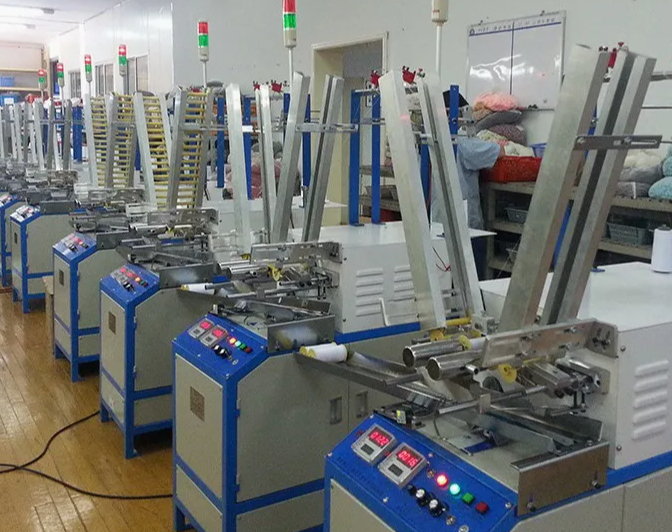

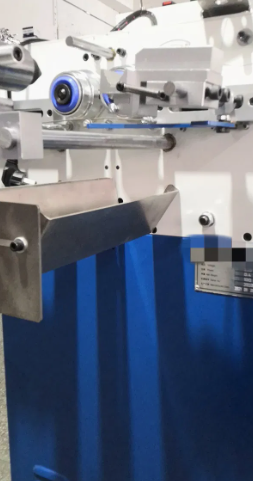

This intelligent CNC weft winding machine adopts an industrial-grade touch screen PLC control system, allowing users to set and adjust production parameters with one click, with simple and intuitive operation. The closed-loop tension control system ensures a tension accuracy of ±1%, ensuring consistent winding quality for high-performance fiber yarns such as carbon fiber and glass fiber. It is equipped with automatic tube changing and automatic palletizing functions, which can complete the entire winding and stacking process without manual intervention, saving labor costs and improving production efficiency. It supports industrial IoT connection, allowing managers to remotely monitor production status, export production data and optimize production plans, and has a protection level of IP55 to adapt to complex workshop environments.
The detailed technical specifications of this intelligent CNC weft winding machine include: spindle speed range of 1000-2500 rpm, maximum winding speed of 1500 m/min, compatible with yarn fineness ranging from 10D to 10000D, suitable for yarn tubes with a diameter of 3-8 inches, power supply of 380-480V 50/60Hz three-phase AC, net weight of 1800 kg, overall dimensions of 2800*1700*2000 mm, production capacity of 70-90 kg per hour, and equipped with forced water cooling + air cooling system for heat dissipation. It has a protection level of IP55, supports industrial IoT connection, and is equipped with emergency stop and overheat protection devices.
This intelligent CNC weft winding machine is mainly applicable to high-performance fiber textile factories, aerospace textile material workshops, high-end outdoor fabric production factories and carbon fiber composite material weaving workshops. It is suitable for winding various textile yarns including carbon fiber, glass fiber and other high-performance fibers, providing consistent and high-quality weft yarns for the production of high-end textile products. It can improve the automation level of the production workshop, reduce the labor intensity of workers, and ensure the consistency of product quality, which is very suitable for the production of high-value-added textile products.
