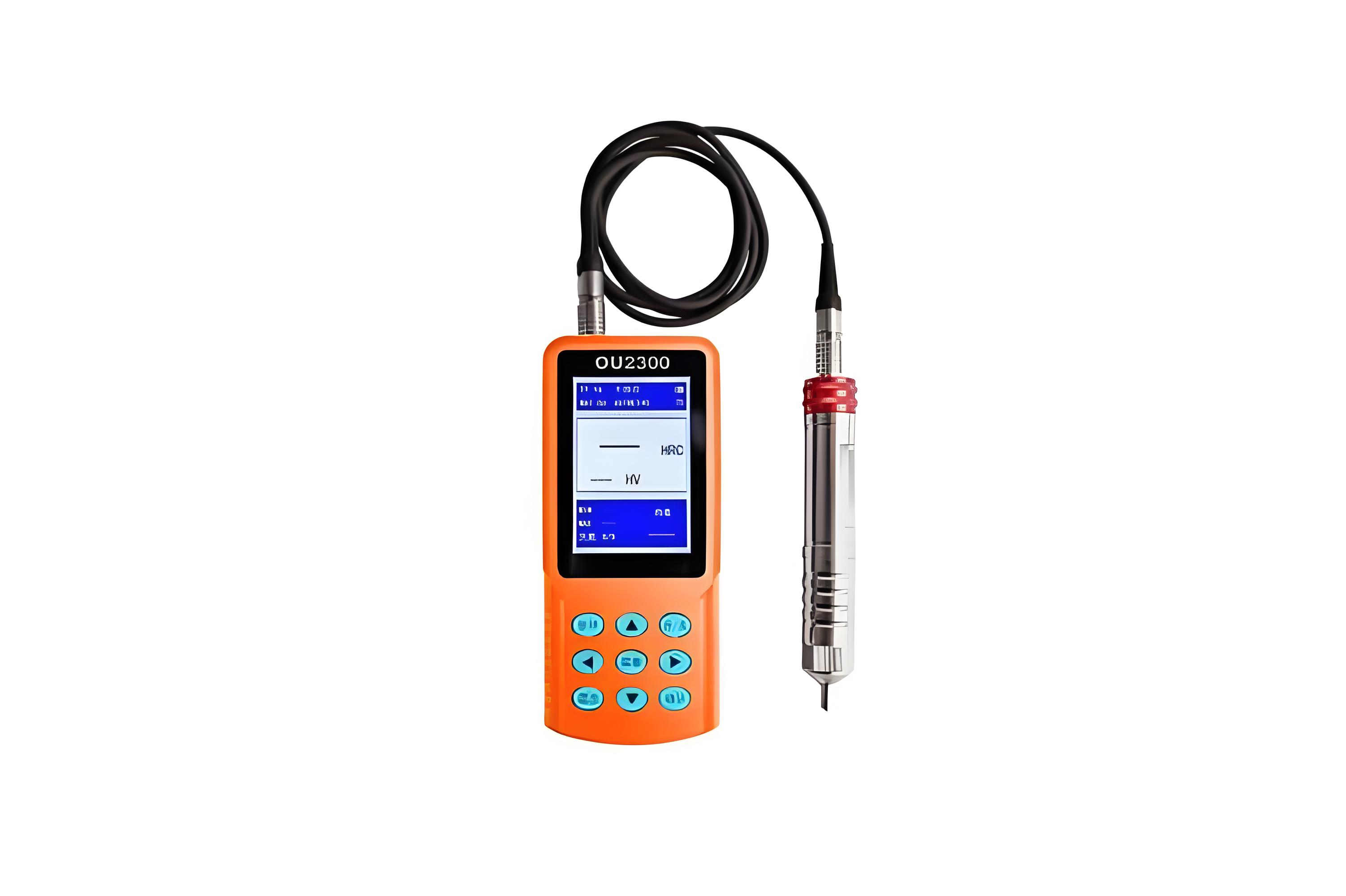

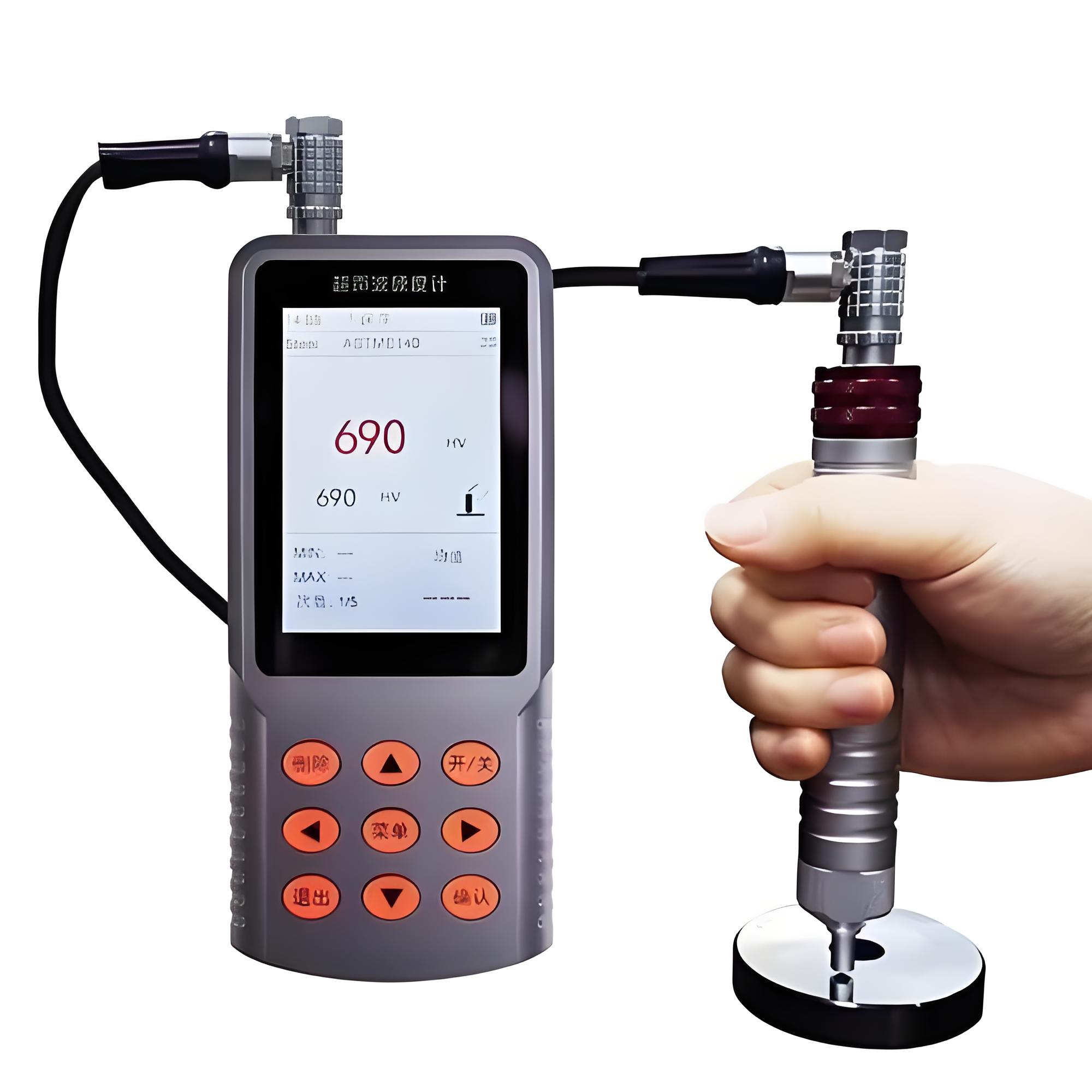

The key features of this tester include 400x optical magnification, which can clearly observe the indenter shape, and the automatic hardness calculation function, which eliminates the tedious steps of manual calculation. The rechargeable lithium battery supports 12 hours of continuous use, and the charging time is only 1.5 hours. The adjustable LED light source ensures clear imaging in different environments. It also has a data locking function, which can lock the test results to avoid misoperation. The compact design allows it to be carried in a pocket, making it suitable for on-line testing of production lines.
The tester supports adjustable indenter load from 0.01kgf to 1kgf, meeting the testing needs of different hardness ranges. The minimum testable workpiece size is 0.5mm, which is suitable for testing micro hardware parts, electronic components and other small products. The built-in camera can capture indenter photos with a resolution of 1920×1080, which can be stored and exported for follow-up analysis. The total size is 150×70×25mm, and the net weight is only 0.8kg, which is very portable.
This handheld vickers hardness tester is widely used in precision electronic component testing, micro hardware parts testing, jewelry hardness testing, automotive fastener testing, and medical device small parts testing. It can be used to test the hardness of non-ferrous metals, thin metal sheets, micro screws and other small products, and is suitable for working scenarios such as electronics factories, hardware processing plants and jewelry stores.
