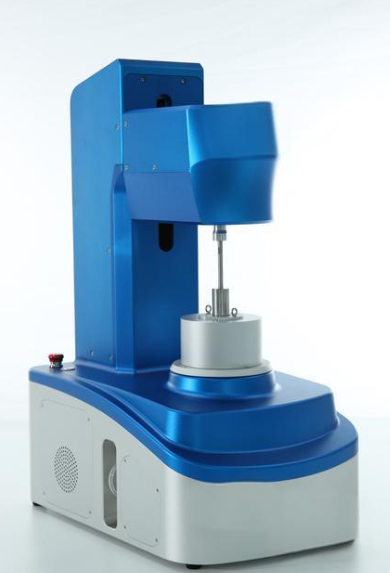

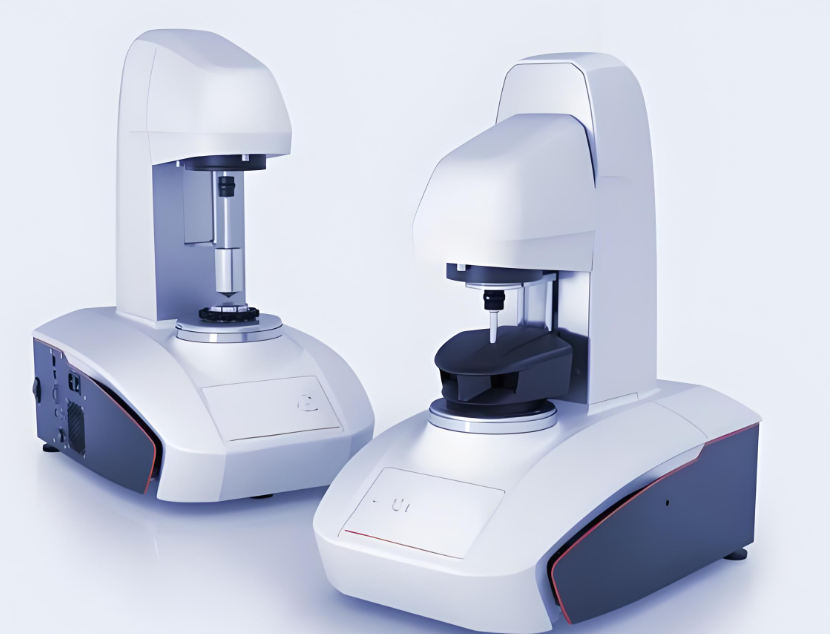

It adopts a lightweight aviation aluminum alloy body with a total weight of only 12 kg, which is convenient for rapid movement and deployment. It is equipped with a micro high-precision torque sensor with a resolution of up to 0.001 N·m, meeting the high-precision testing requirements of small-volume materials. It uses a touch-screen operation interface that supports one-click test process without complex parameter configuration. It is equipped with a USB Type-C interface that can be directly connected to a laptop or mobile device for data transmission and control, adapting to outdoor mobile office scenarios. It has a built-in rechargeable lithium battery that supports offline testing for up to 4 hours without relying on external power supplies.
Torque measurement range: 0.01~50 N·m, accuracy ±1%FS; Temperature control range: 25℃~200℃, temperature control accuracy ±2℃; Effective barrel volume: 10 cm³, suitable for small batch material testing; Rotor speed range: 1~200 rpm, speed accuracy ±0.2 rpm; Overall dimensions: 300mm (L) × 250mm (W) × 400mm (H); Total weight: 12 kg; Power supply: 100-240V AC / 12V DC built-in lithium battery; Data output format: CSV/PDF; Supporting certification: CE, FCC.
It is suitable for university material experiment teaching demonstrations, on-site incoming material rapid quality inspection, temporary formula testing of small plastic processing plants, mobile rheological testing of outdoor R&D teams and other scenarios. It can help R&D personnel obtain material rheological data at the first time without bringing samples back to the laboratory, greatly improving on-site R&D and testing efficiency, and can also be used as a popular science display device for materials science theme exhibitions.
