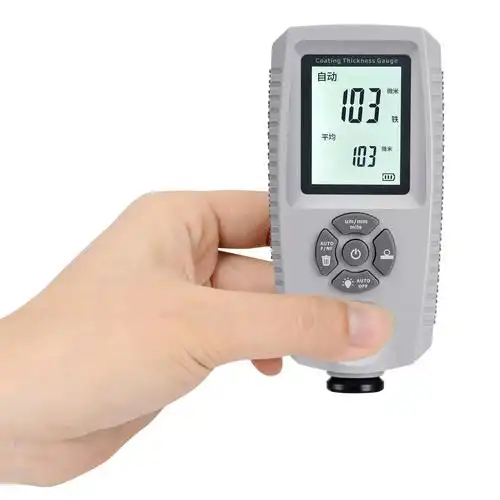

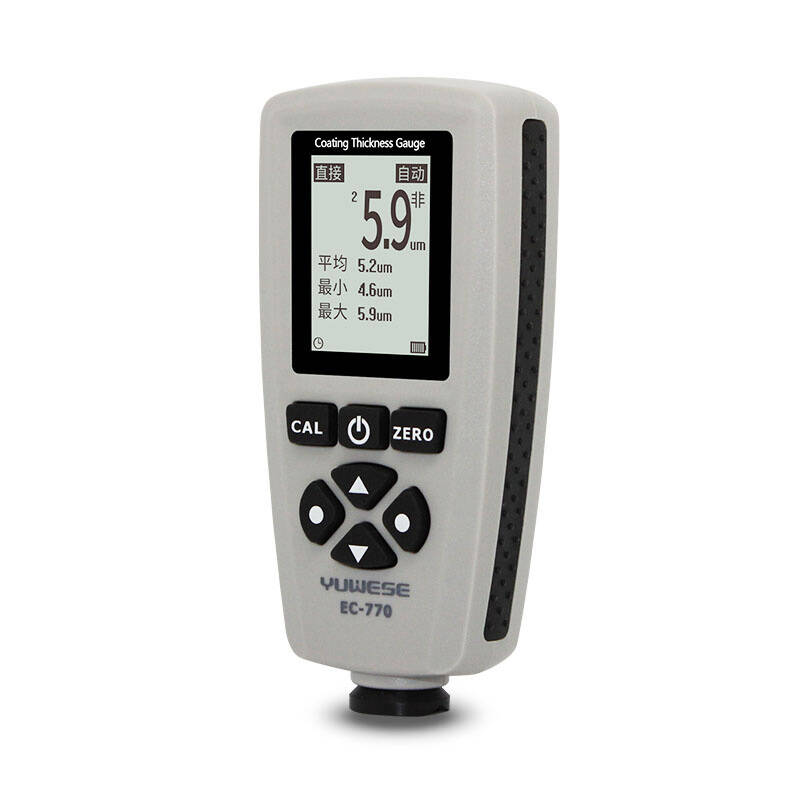

It adopts high-precision permanent magnet steel probe, which can achieve stable detection without external power supply. The IP54 protection grade is suitable for complex on-site environments such as workshops and outdoor sites. The 1.44-inch LCD display has adjustable backlight, which can clearly read data even in strong light. It has a built-in 100-group data storage that can be exported and viewed at any time. Compared with traditional mechanical thickness gauges, the detection efficiency is increased by more than 40%. It supports one-key zero calibration to avoid environmental errors. The lightweight body is only 120g, which can be easily put into a work pocket for carrying.
Detection Principle: Magnetic Method; Measuring Range: 0-2000μm; Accuracy: ±(3%+0.5μm); Probe Size: Φ8mm; Host Dimensions: 120mm×60mm×30mm; Total Weight: 120g (excluding battery); Power Supply: 2 AA Alkaline Batteries; Battery Life: About 80 Hours of Continuous Use; Data Storage: 100 Sets of Measurement Data; Calibration Method: One-key Automatic Calibration; Applicable Matrix: Ferrous Metal Matrix; Protection Grade: IP54 Dust and Water Proof.
It is suitable for scenarios such as auto parts plating layer detection, hardware fastener plating quality control, steel structure anti-corrosion coating thickness detection, and home appliance shell plating acceptance. It can quickly complete detection in production lines, outdoor construction sites and second-hand equipment evaluation sites, without disassembling samples, and can obtain data by directly attaching to the surface. It helps enterprises quickly complete incoming material inspection, process control and finished product quality inspection.
