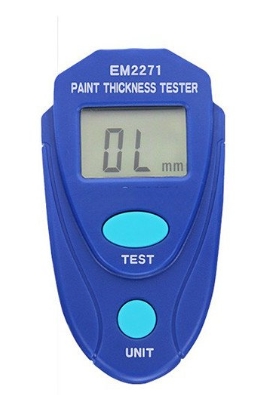

It adopts an integrated magnetic induction probe, no need to replace probes for different substrates, and is equipped with a backlit LCD screen for clear reading in dim workshops. It has a built-in 500-group data storage that can be exported to a computer for traceability analysis. The ABS anti-fall shell adapts to complex operation environments, and 3-minute automatic power off saves power. The one-key calibration function can quickly adapt to different workpiece curved surfaces, reducing the learning cost of operators. The accuracy is controlled at ±2%+1μm, meeting conventional quality inspection needs, and solves the pain point that traditional desktop equipment cannot be used for on-site detection.
Detection Principle: Magnetic induction; Measuring Range: 0-1200μm; Measurement Accuracy: ±(2% + 1μm); Probe: Integrated magnetic probe; Power Supply: 2 x AAA Alkaline Batteries; Operating Temperature Range: 0℃ to 40℃; Storage Temperature Range: -10℃ to 60℃; Display: Backlit LCD Screen; Data Storage Capacity: 500 measurement records; Housing Material: Impact-resistant ABS Plastic; Net Weight: 120g; Product Dimensions: 135mm (L) × 60mm (W) × 30mm (H); Auto Power-off Time: 3 minutes of inactivity; Calibration Method: One-button self-calibration; Compatible Substrates: Ferrous metals (steel, iron)
It is suitable for on-site incoming material inspection, process quality inspection and finished product acceptance in hardware fastener processing plants, auto parts manufacturing workshops and hardware plating plants. It can quickly detect the thickness of zinc, chromium and nickel coatings on steel workpiece, and can also be used for plating residue detection during used equipment renovation and rapid sampling inspection of anti-corrosion layers of outdoor steel structures. It is suitable for all handheld operation scenarios, and can be used immediately after turning on.
