This product supports two-way data transmission, allowing remote issuance of recharge and timing calibration commands. The ductile iron outer shell and brass inner core balance structural strength and corrosion resistance. It supports multi-meter networking with a maximum communication distance of 1200 meters, suitable for large park pipe networks. It can real-time monitor battery power and pipeline pressure abnormalities and automatically report fault information. The cumulative flow storage duration can reach 1 year, meeting the annual billing needs of water utilities, and is compatible with existing water utility management systems without additional infrastructure transformation.
Nominal Diameter: Available in DN20, DN25, DN32, DN40, DN50; Accuracy Class: Complies with ISO 4064 Class B metering standards; Rated Working Pressure: 1.6MPa; Operating Temperature Range: 0℃ to 50℃; Communication Interface: M-Bus or RS485 with 9600bps baud rate; Power Supply: AC 220V ±10% + 1 × 3.6V lithium backup battery; Body Material: Ductile iron outer shell + food-grade brass inner core; Flow Range for DN20 model: 0.1~25m³/h; Protection Rating: IP67 waterproof; Installation Orientation: Horizontal fixed installation; Data Storage: Stores 1 year of historical water usage data; Dimensions: DN20 model: 280mm in length × 150mm in diameter.

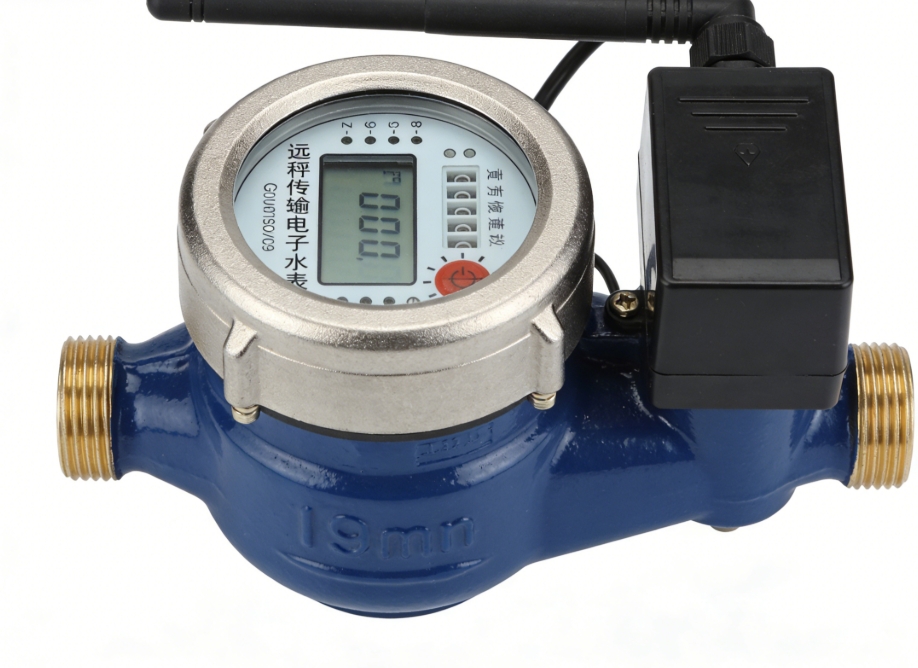

This wired remote electronic water meter is suitable for medium-sized water usage scenarios such as residential community centralized water supply, medium-sized commercial complexes, industrial parks, and school canteens. It can realize remote batch meter reading, automatic billing, and abnormal water usage early warning, helping water enterprises reduce more than 80% of meter reading labor costs and improve water management efficiency. It is compatible with existing municipal water supply pipeline specifications and can be directly deployed in existing water supply networks.
