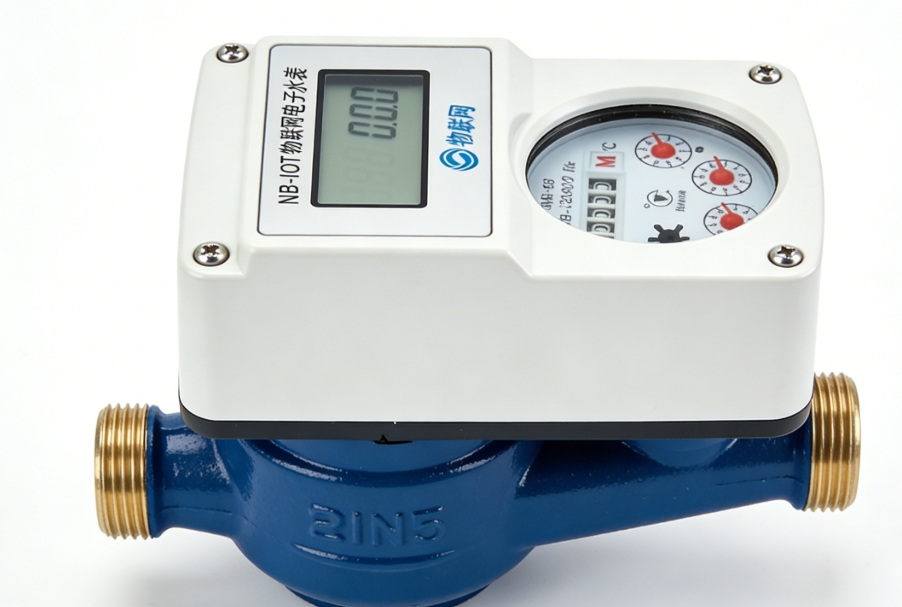

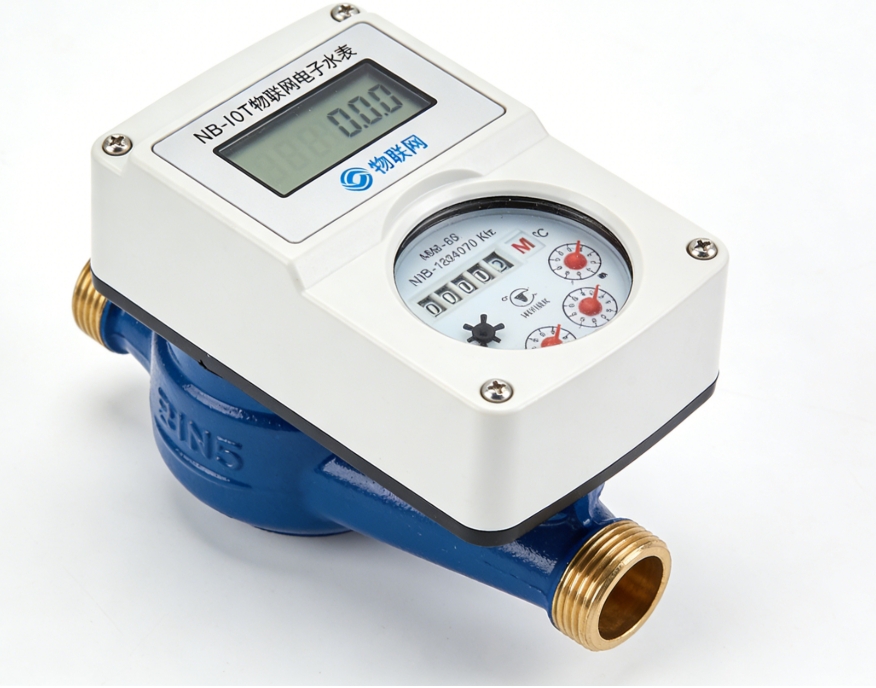

This product uses NB-IoT low-power communication module with wide signal coverage and strong penetration capability, suitable for scenarios with weak signals such as underground pipelines and dense residential areas. It supports remote valve control function, allowing remote closing and opening of water supply valves for scenarios such as arrears shutdown and emergency water stop. It has a built-in water leakage detection function, automatically reporting an alarm when continuous micro flow exceeds 10 minutes, effectively reducing pipeline water leakage losses. The low-power design allows the 3.6V lithium battery to last up to 5 years. It has an IP68 waterproof rating suitable for underground pipeline installation, and supports remote firmware upgrade without on-site maintenance. It is compatible with smart water management platforms and can connect to existing water utility systems.
Nominal Diameter: Available in DN15, DN20, DN25, DN50; Accuracy Class: Complies with ISO 4064 Class B metering standards; Rated Working Pressure: 1.0MPa; Operating Temperature Range: -10℃ to 60℃; Display: Backlit LCD digital display showing cumulative usage, real-time flow, and battery level; Power Supply: 1 × 3.6V lithium battery (up to 5 years of service life under normal usage); Body Material: Lead-free brass + ABS engineering plastic; Flow Range for DN15 model: 0.03~10m³/h; Protection Rating: IP68 waterproof; Installation Orientation: Horizontal or vertical installation; Communication Mode: NB-IoT Cat-NB1; Data Update Frequency: 1 time per 10 minutes; Data Storage: Stores 3 years of historical water usage data; Remote Valve Control: Supported; Dimensions: DN15 model: 140mm in length × 90mm in diameter.
This NB-IoT electronic water meter is suitable for smart water overall solutions, multi-story residential community centralized water supply, rural and urban fringe decentralized water supply stations, and old community water meter renovation projects. It can realize remote batch meter reading, automatic billing, water leakage early warning, arrears shutdown and other functions, helping water enterprises improve management efficiency, reduce operating costs, and contribute to smart city and smart water construction.
