The core differentiated advantages of this remote meter include dual communication protocol compatibility, which can adapt to different on-site platform access requirements. It supports adjustable data upload intervals, allowing users to balance data timeliness and power consumption according to actual needs. The built-in anti-magnetic interference design effectively prevents illegal water theft by pasting magnets on the meter. The IP68 waterproof rating allows it to be installed in open-air pipe trenches without additional protective measures. It also has a valve control function that can automatically close the water supply when the prepaid balance is exhausted (optional pre-paid version), reducing the risk of overdue water fees for property managers. The device uses a low-power main control chip, which can reduce the overall power consumption and extend the service life of the backup battery.

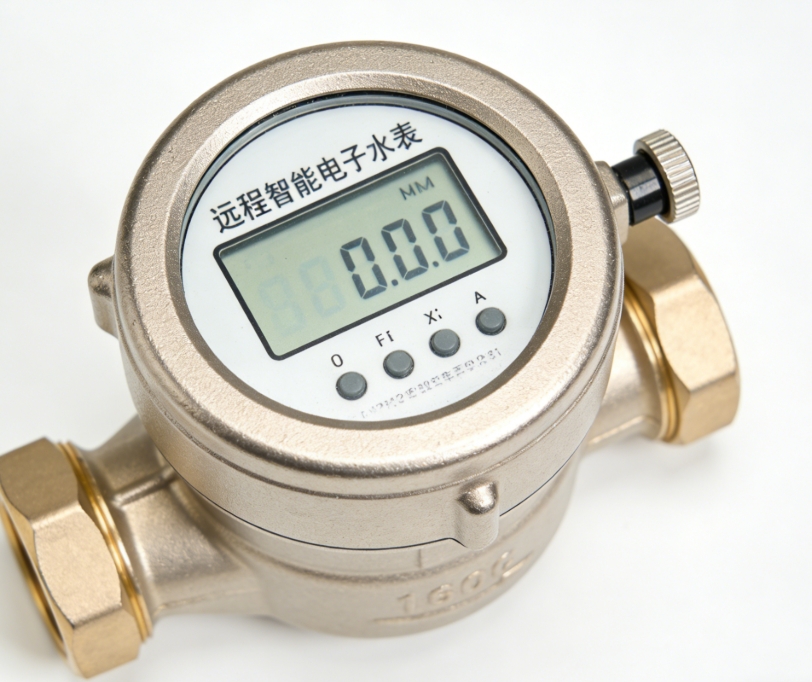

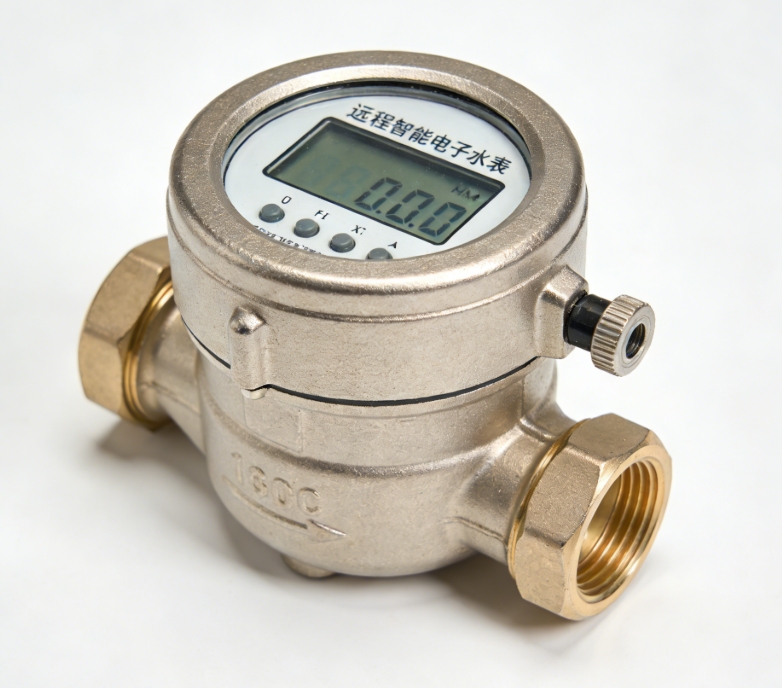

This DN20 remote intelligent electronic water meter adopts a standard threaded interface conforming to international plumbing standards, with a flow measurement range of Q1=0.02m³/h to Q3=25m³/h, meeting the metering needs of medium-sized residential water consumption. It is powered by AC220V mains power, with a CR123 backup battery that can support 72 hours of normal data transmission in case of power outages. The backlit LCD display clearly shows current water consumption, remaining balance (optional) and equipment working status. The shell is made of high-strength brass and stainless steel, with epoxy resin anti-corrosion coating, which can adapt to harsh outdoor environments such as high humidity and acid rain. The overall dimensions are 220mm in height, 90mm in width and 70mm in thickness, with a total weight of 1.8kg, and it supports fixed installation through mounting brackets.
This remote intelligent electronic water meter is mainly applicable to large residential communities, commercial office buildings, school campuses and other medium-sized water metering scenarios. Property management companies can use it to realize one-stop centralized meter reading, without arranging staff to go door-to-door for reading, which greatly reduces the daily management workload. It can be connected to municipal water supply monitoring platforms to help water supply companies master the overall water consumption of the area, carry out refined water management and timely detect large-area water leakage accidents. It can also be used in smart park water management to realize real-time monitoring of each tenant's water consumption and accurate fee settlement.
