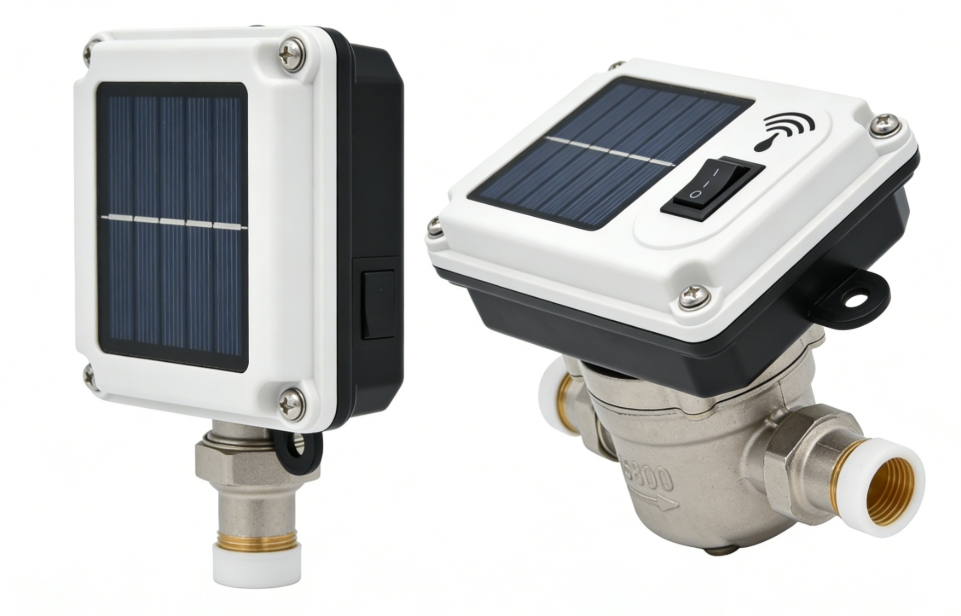

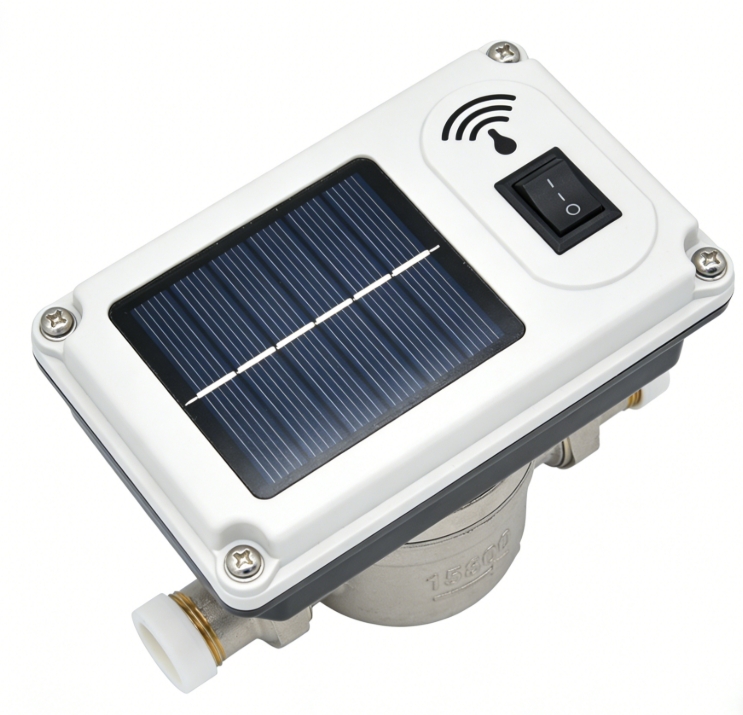

Adopts integrated dust-proof and waterproof structure with IP68 protection grade, which can be buried underground or installed overhead for a long time. Equipped with high-efficiency solar charging panel. It supports remote valve control, water leakage alarm and tiered water pricing billing, and is compatible with outdoor smart water utility platforms. There is no need to open the cover manually to read data, reducing the labor cost of outdoor operation and maintenance.
Nominal diameter range is DN15~DN40, maximum working pressure is 1.0MPa. The size of DN15 model is 220mm×100mm×150mm, and the total weight is about 1.5kg. The protection grade is IP68. The communication protocol is NB-IoT/LoRaWAN. The power supply mode is ER14505 lithium-thionyl chloride battery + 5V/2W solar panel. The battery life is ≥12 months without sunlight. The data sampling interval can be adjusted to 15 minutes. The interface type is G1/2~G1 1/2 internal thread, and the operating temperature range is -10~60℃.
Suitable for outdoor water use scenarios such as outdoor municipal pipe networks, rural drinking water projects and open-air construction sites. It can be buried underground or installed overhead, and water consumption data can be obtained remotely without on-site manual meter reading, helping municipal departments and water utilities realize global outdoor water management, improving the management efficiency of rural drinking water projects and reducing operation and maintenance costs.
