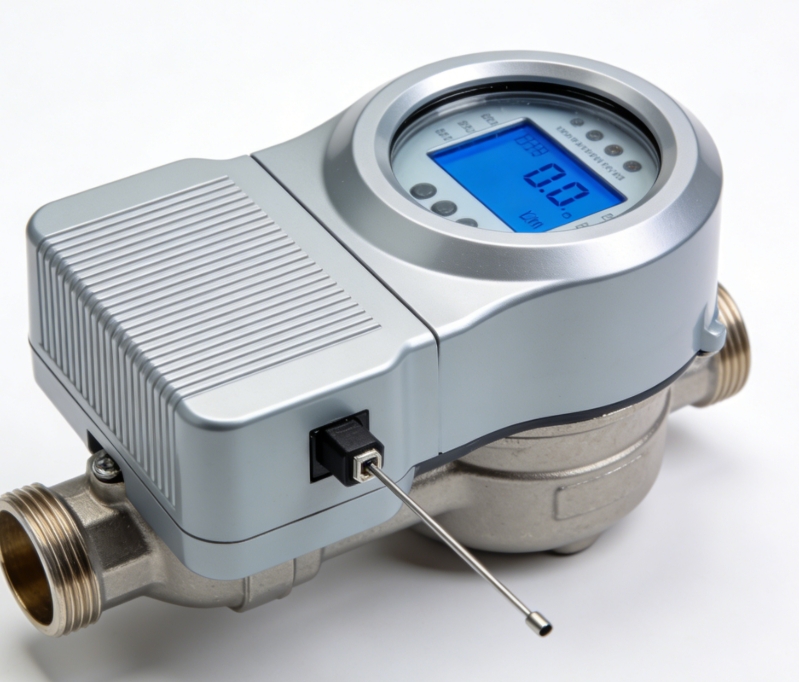

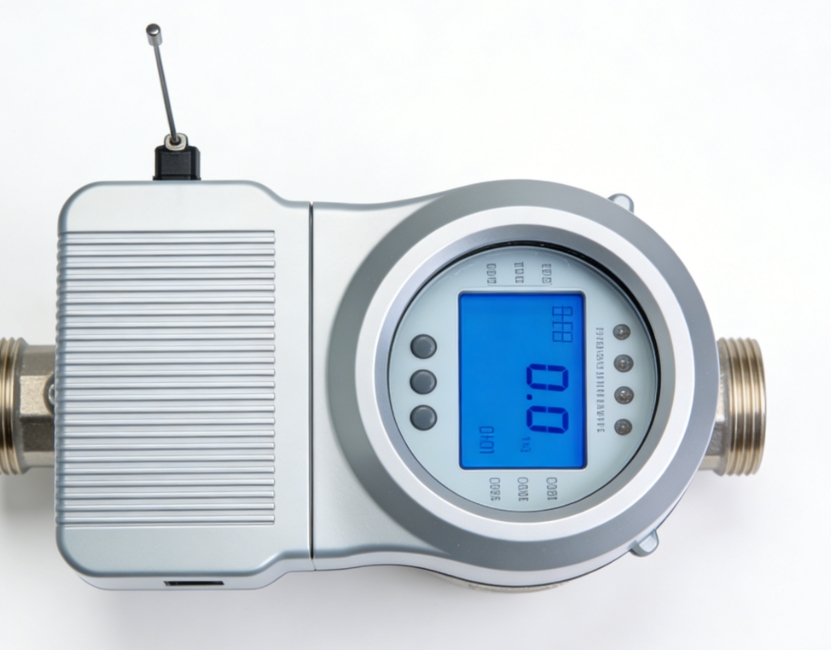

Adopts wireless split design with a transmission distance of up to 10m in indoor environment. The probe adopts fully sealed structure and can be buried in walls or underground for a long time. The host supports local display and remote data transmission, and has functions of abnormal water usage reminder and valve closing after arrears. It is compatible with mobile phone mini-programs for payment and data query, and can be installed without professional tools, reducing installation costs and maintenance difficulty.
Nominal diameter range is DN15~DN20, maximum working pressure is 1.0MPa. The size of the probe is 120mm×60mm×50mm, and the size of the host is 150mm×100mm×30mm. The total weight is about 0.8kg. The protection grade of the probe is IP68, and the host is IP54. The communication protocol is NB-IoT, and the battery life is ≥10 years in standby mode. The data sampling interval can be adjusted to 30 minutes, and the interface type is G1/2 internal thread.
Suitable for scenarios with limited installation space such as apartment pipe wells, old community renovations and commercial stores. It can be used as a concealed water meter, solving the problem of difficult meter reading caused by inconvenient installation position of traditional water meters, and helping property companies and water utilities realize remote management, improving meter reading efficiency and user payment experience.
