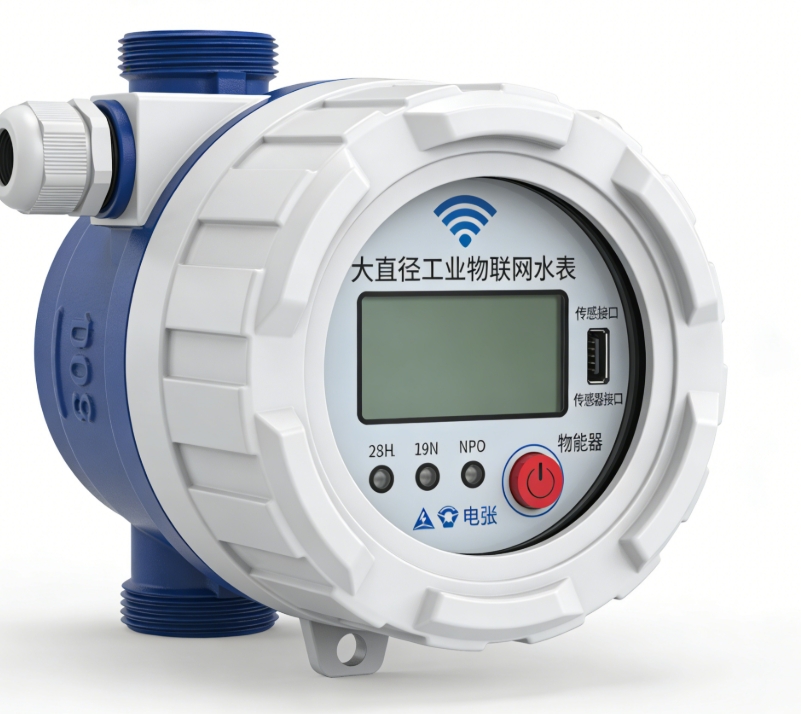

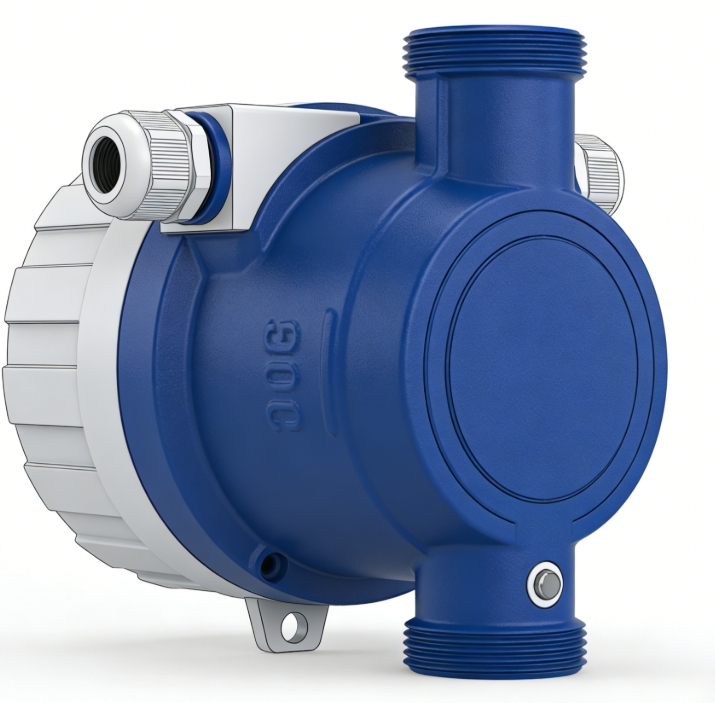

Adopts impeller flow sensor structure to achieve high-precision measurement under large flow conditions. Equipped with dual power supply mode to ensure all-weather operation, the backup battery can continue to work for ≥30 days in case of power failure. Supports remote parameter configuration and data export, and can be connected to enterprise energy management systems and municipal water supervision platforms. It supports Modbus protocol to access industrial control systems, solving the problems of inaccurate measurement and difficult manual meter reading of industrial water meters.
Nominal diameter range is DN50~DN300, maximum working pressure is 1.6MPa. The size of DN100 model is 560mm×420mm×320mm, and the total weight is about 25kg. The protection grade is IP67, suitable for outdoor open-air installation. The communication distance of LoRaWAN mode can reach 3~5km in open environment. The data sampling interval can be adjusted to 15 minutes. The external power supply is AC85~265V, and the backup battery is ER34615 3.6V lithium-thionyl chloride battery pack.
Suitable for large flow water measurement scenarios such as factory areas, commercial complexes, municipal water supply main pipes and water intake ports of sewage treatment plants. It helps enterprises monitor production water costs in real time, and helps municipal departments count regional water consumption data to realize full coverage of smart water utilities, replacing traditional large diameter mechanical water meters to improve measurement accuracy and management efficiency.
