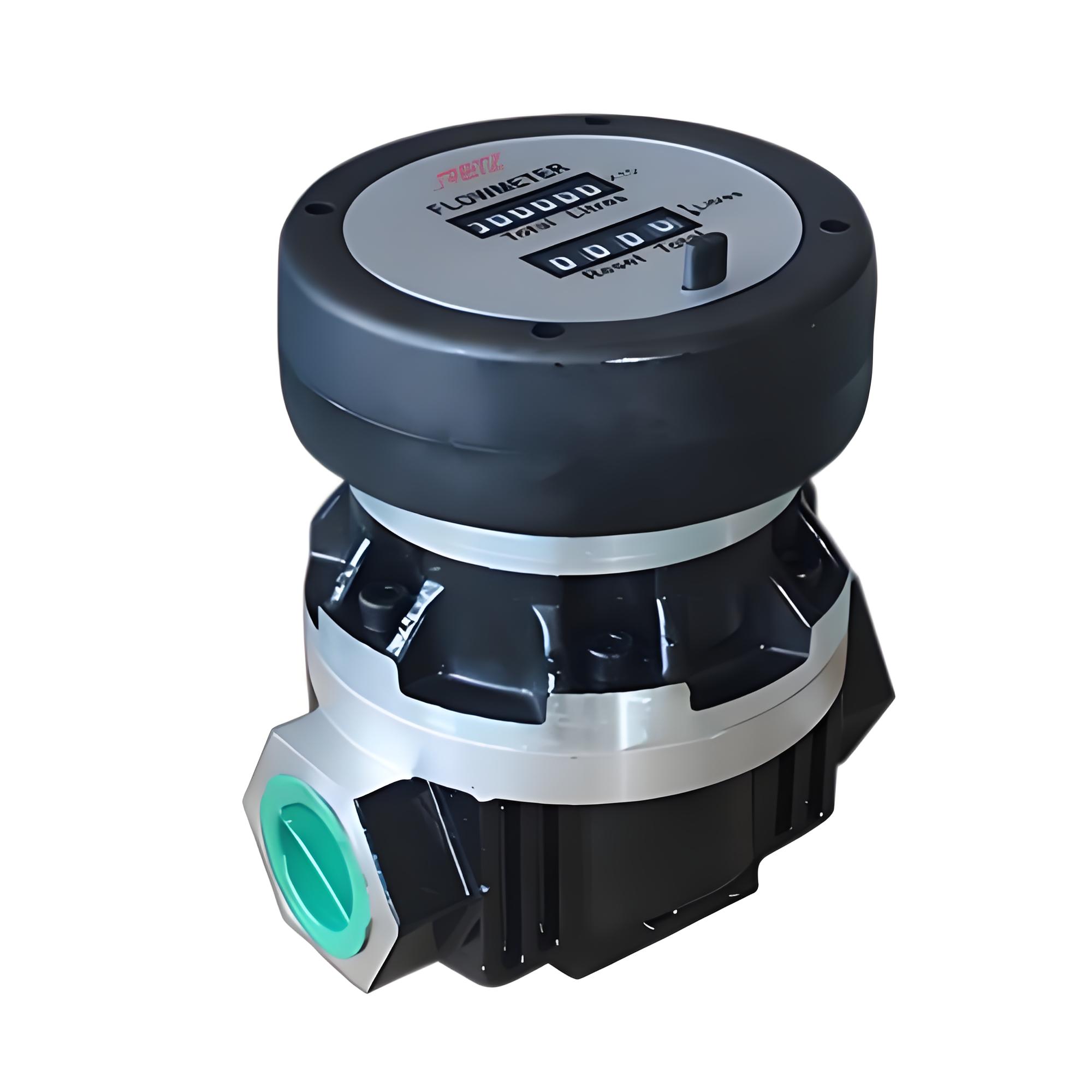

This gear flowmeter has multiple unique advantages. First, the hardened steel gear has good wear resistance and can adapt to the measurement of high-viscosity liquids for a long time. Second, the compact structure is easy to install and maintain, and can be installed in narrow spaces. Third, it has a wide viscosity adaptation range of 1-10000 mPa·s, which can meet the measurement needs of most high-viscosity liquids. It also supports digital display, which can directly display real-time flow and cumulative flow on-site, facilitating on-site debugging and observation.
Detailed specifications include: flow measurement range covers 0.01-100 l/min, with an accuracy grade of ±0.3% of reading, which is suitable for high-precision metering of small-flow high-viscosity liquids. The operating pressure ranges from PN5 to PN10, adapting to conventional pipeline pressure conditions. The working temperature ranges from -10℃ to +80℃, suitable for most industrial production scenarios. The gear is made of hardened steel or 304 stainless steel, which has good wear resistance and corrosion resistance. It supports thread and flange connection, and the interface specifications range from G1/4 to G2. Multiple power supply options are available, and the digital display can clearly show real-time flow, cumulative flow and other data.
This high-viscosity gear flowmeter is mainly suitable for lubricating oil metering of mechanical equipment, resin metering of plastic production lines, paint metering of coating production lines, and fuel metering of power generation equipment. Typical application cases include: measuring the flow of lubricating oil in the hydraulic system of engineering machinery, measuring the flow of resin in the production of plastic products, measuring the flow of paint in the coating production line, and measuring the fuel flow of diesel generator sets. It can also be used in the metering of chemical viscous materials, providing accurate flow data for industrial production.
