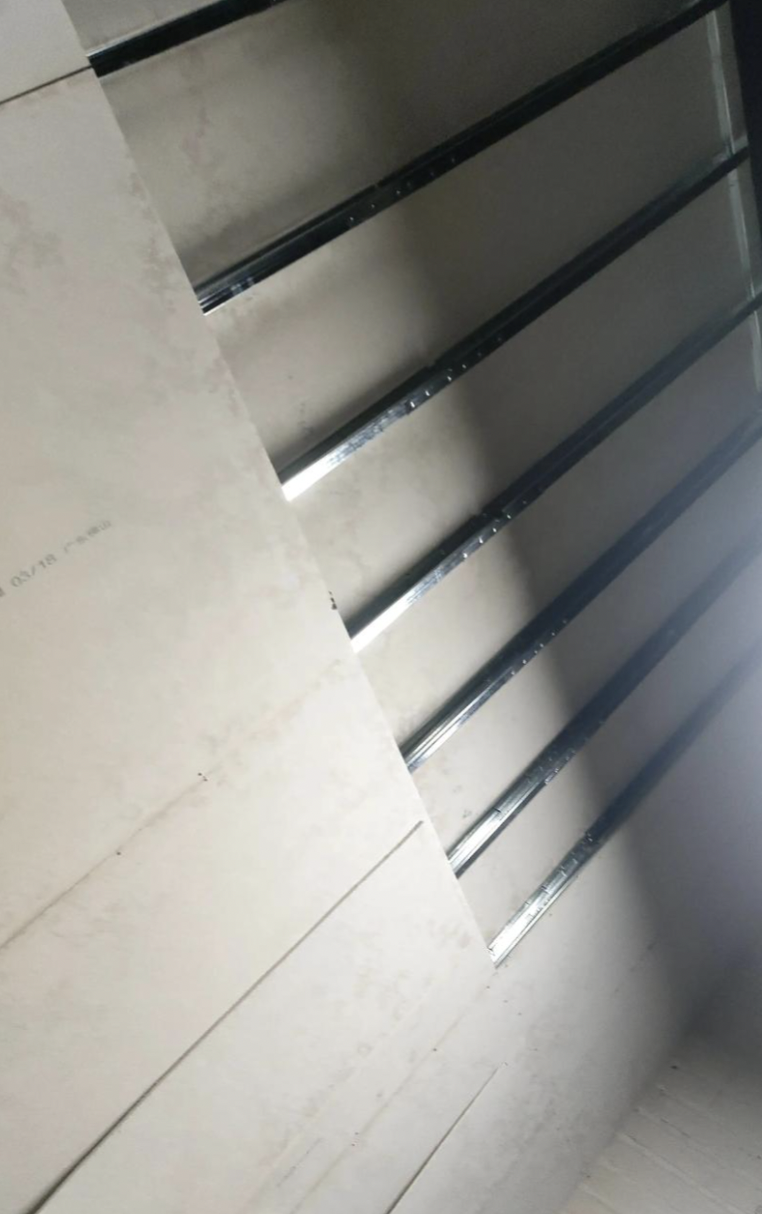

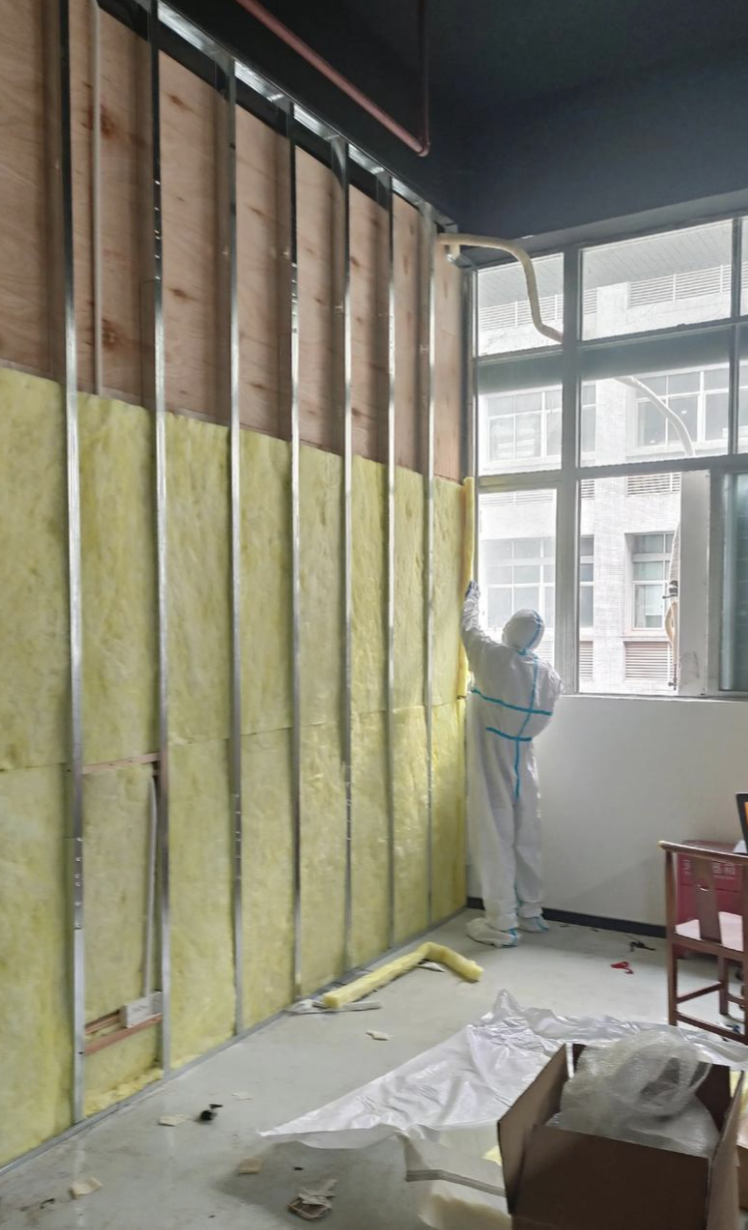

The core highlight of this prefabricated fireproof wall panel system is the prefabricated production mode. All components are processed in the factory, and only splicing and installation are required on site. The installation efficiency can reach 10 square meters per day, which is 80% higher than that of traditional dry wall construction. The light steel keel is used as the structural support, and the fireproof board is used as the surface layer. The overall structural stability is strong, which can bear a load of ≥100kg/㎡, and has 8-level seismic resistance, suitable for use in earthquake-prone areas. It has excellent fire resistance performance, with a fire resistance duration of 3-4 hours, and the sound insulation performance is more than 50dB, which can effectively isolate indoor noise and improve the quietness of indoor space. All components are made of environmentally friendly materials, reaching the E0-level environmental protection standard, and will not release harmful gases, adapting to the design requirements of green buildings.
Different thicknesses (75mm, 100mm, 150mm) and sizes can be customized according to project needs. The conventional partition wall height can reach 3m, and the length can be cut according to on-site needs. The light steel keel is made of Q235 galvanized steel with a thickness of 0.6mm, and the surface layer can choose fireproof gypsum board or MGO board with a thickness of 12mm/15mm. The overall sound insulation performance is more than 50dB, and the fire resistance duration can reach 3-4 hours, complying with fire protection and building structure standards such as ASTM E119 and GB 50016. Complete installation accessory kits including keels, connectors, sealants, etc. can be provided, without additional on-site material procurement, simplifying the construction process.
It is mainly applicable to high-end commercial office buildings, data center computer rooms, precision instrument production workshops, hospital operating rooms, high-end hotel guest rooms and other scenarios with extremely high requirements for construction efficiency, structural stability, fire resistance and sound insulation. It can complete the partition wall installation quickly, and has excellent fire resistance performance, which can effectively block the spread of fire and protect indoor equipment and personnel. Due to its detachable and reusable characteristics, it can also be used in temporary exhibition venues, temporary office places and other scenarios that require rapid construction and demolition, reducing material costs.
