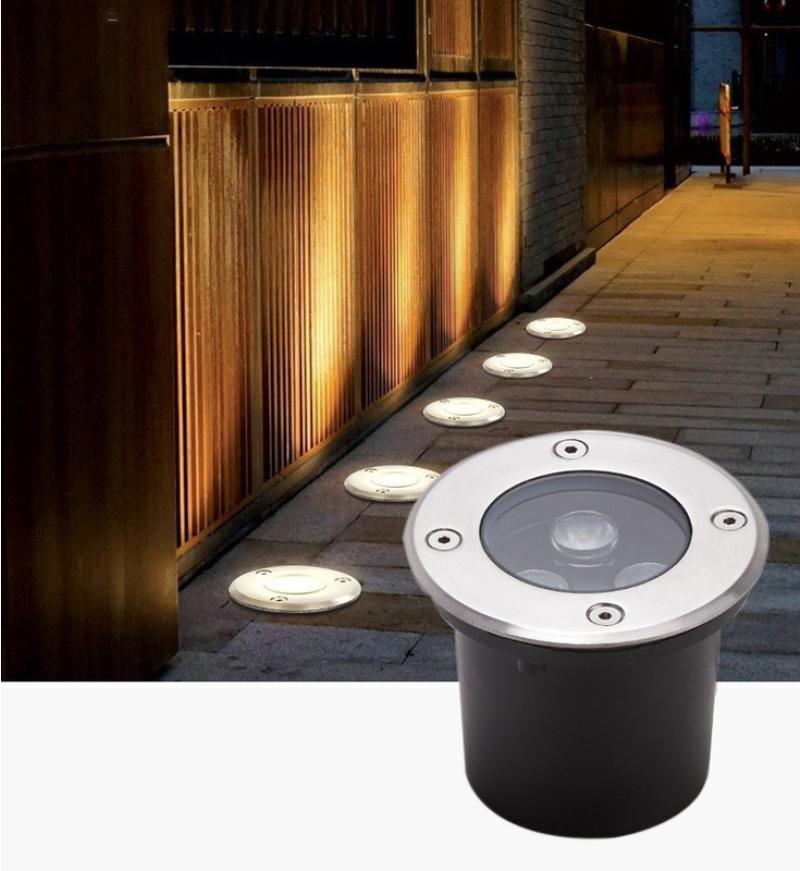

Recessed in-ground lights are installed below ground level,flush with the surface,combining decorative and lighting functions.They are widely used for flood or accent lighting in landscape greenbelts,pathway edges,architectural facade wall washing,and sculpture features.

Key attributes

Housing Material

Stainless Steel 304/316 body, tempered glass face cover

Optical Lens

Optical-grade PMMA lens

Light Source Type

Surface-Mount Device (SMD) LEDs

Driver Power Supply

Narrow beam (e.g., 15°) or wide beam (e.g., 60°)

Mounting Method

Recessed into concrete foundation in-ground

Input Voltage

DC 12V/24V

Protection Rating

IP67 / IP68

Power Factor

>85%

Correlated Color Temperature

2700K

Smart Control

Highlights landscapes or path boundaries

Housing Material

Stainless Steel 304/316 body, tempered glass face cover

Optical Lens

Optical-grade PMMA lens

Light Source Type

Surface-Mount Device (SMD) LEDs

Driver Power Supply

Narrow beam (e.g., 15°) or wide beam (e.g., 60°)

Mounting Method

Recessed into concrete foundation in-ground

Input Voltage

DC 12V/24V

Protection Rating

IP67 / IP68

Power Factor

>85%

Correlated Color Temperature

2700K

Smart Control

Highlights landscapes or path boundaries

Customer reviews

Product Description

Product Features:

Made from high-grade stainless steel and thickened tempered glass,offering extreme pressure and impact resistance(typically over 1-ton load capacity).Precision sealing achieves high waterproof/dustproof ratings,allowing prolonged underwater operation.Low-voltage models ensure safety.Optional RGBW color changing and dimming functions enable dynamic scene effects with control systems.

Product Specifications:

Common shapes include round and square.Power ranges from 3W to 36W.Various beam angles available.Installation depth varies by model,requiring adequate pre-set depth and heat dissipation space.Surface can have anti-glare treatment.

Product Applications:

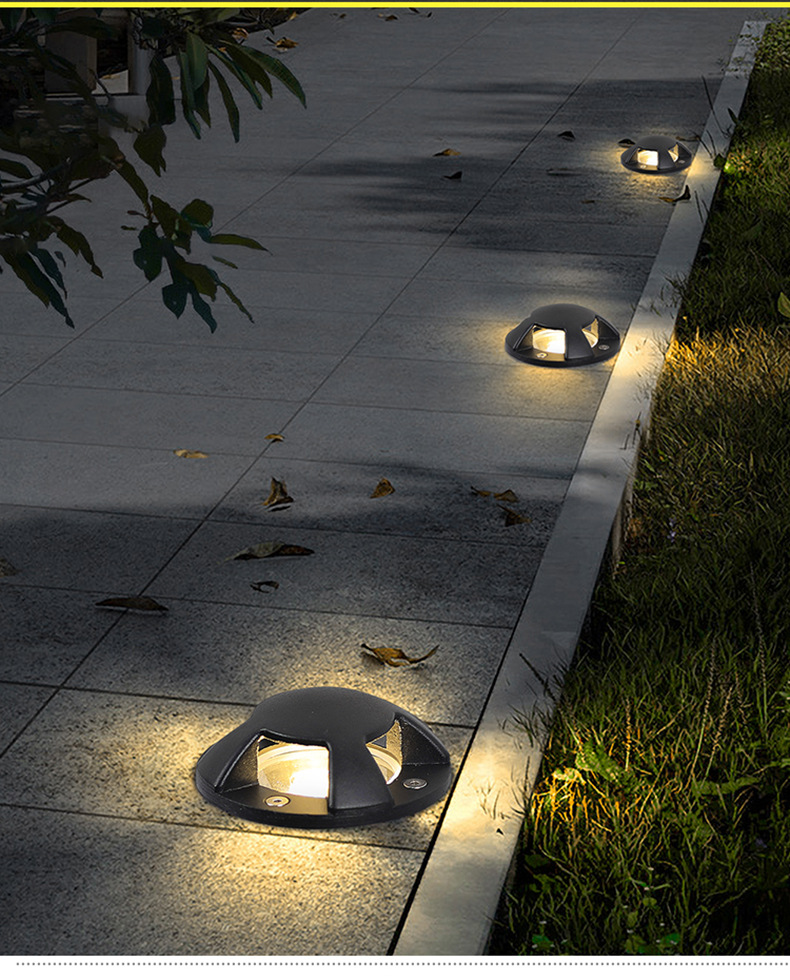

Mainly used for ground guidance lighting in commercial plazas,parks,villa courtyards,and pedestrian streets;upward wall washing for building bases/walls;projection lighting for trees and flags;underwater or perimeter lighting for pools and water features.Effectively enhances nighttime landscape layering and safety.

Frequently Asked Questions (FAQ)

Q：Can it withstand vehicle traffic?

A：Heavy-duty in-ground lights for roadways use thickened tempered glass and 304/316 stainless steel, with static loads often exceeding 5 tons. Refer to the product's load rating (e.g., EN124 standard).

Q：Will it leak if submerged in water long-term?

A：No. High-grade products are IP68 rated, using silicone gaskets and sealed conduit entries, allowing long-term submersion to a specified depth, suitable for water features.

Q：Can the beam angle be adjusted?

A：Yes. Different beam angle lenses (e.g., 15° narrow, 60° wide) can be selected. Some high-end models allow minor post-installation aiming adjustments for precise wall washing or tree grazing.

Q：Will the surface temperature be hot enough to burn skin?

A：Well-designed products, under safe voltage and rated power, typically have surface temperatures below 60°C, under the brief contact burn threshold. However, prolonged touching is not advised.

Q：What are the installation depth and foundation requirements?

A：A sufficiently deep footing (often ≥400mm) is required. The inner diameter should exceed the light's body. A gravel base aids drainage. The footing's top must be flush with the final finished grade.

Q：How to choose between Low Voltage (12V/24V) and High Voltage (220V)?

A：Safe low voltage is mandatory for areas with direct human contact (pools, plazas). High voltage is an option for decorative accents with long wiring runs, but requires professional installation and RCD protection.
