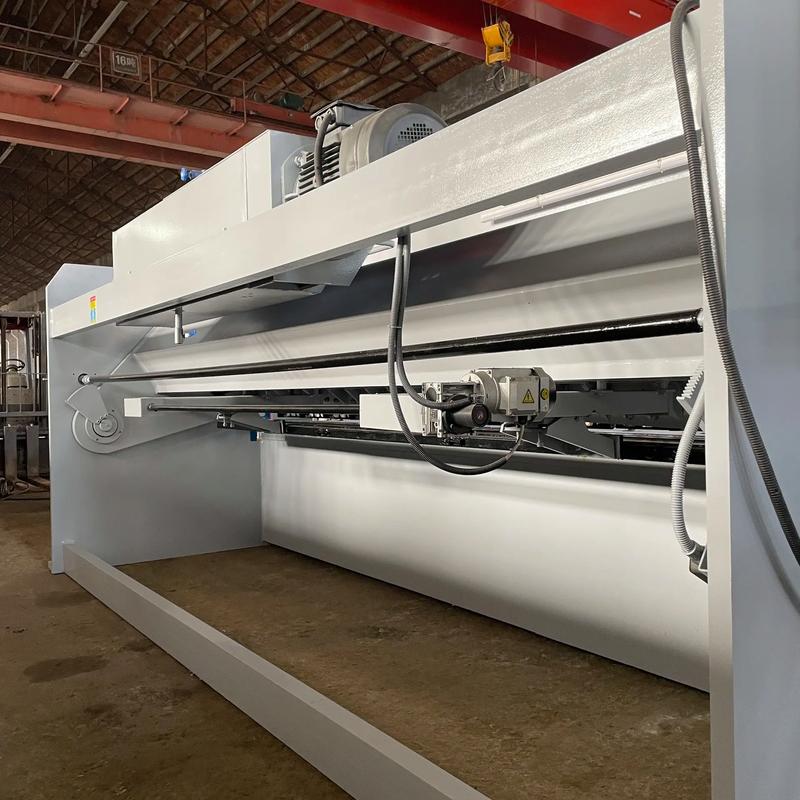

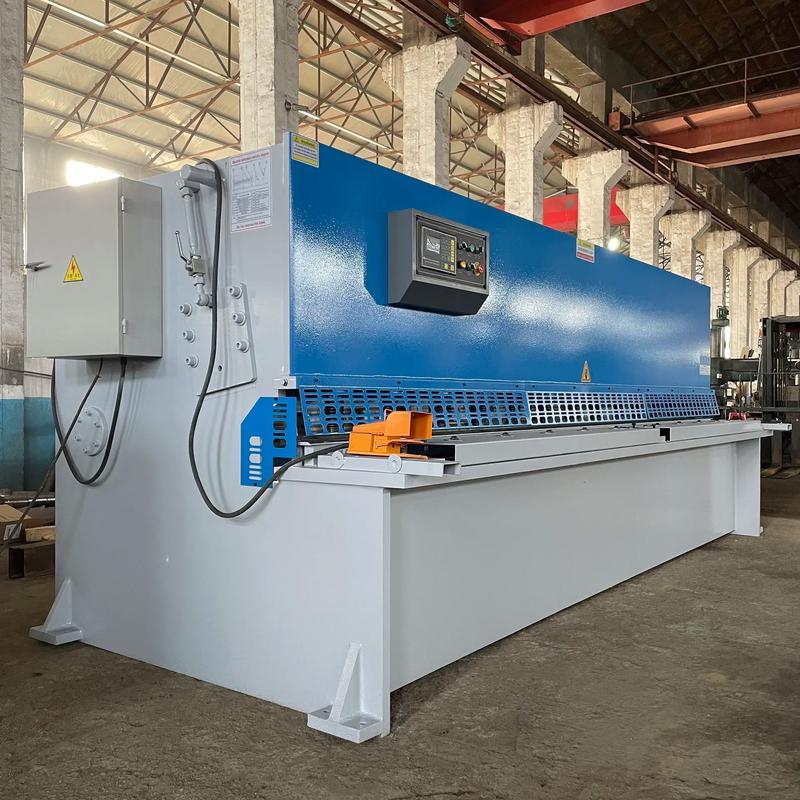

It adopts PLC touch screen CNC system, which can preset more than 100 processing procedures and automatically adjust punching position and shearing size. It is equipped with an automatic hydraulic feeding rack, which can continuously feed without manual intervention. The high-strength Q355 body structure improves deformation resistance by 60%, and the cutter adopts vacuum quenching process, extending the service life to 8000 hours. Built-in intelligent fault diagnosis system can real-time feedback equipment operating status, reducing downtime maintenance time, and saving 30% of labor costs compared with traditional heavy-duty equipment.
Processing sheet material: low-carbon steel, stainless steel plate, galvanized steel sheet, manganese steel plate; Processing thickness range: 3mm-12mm; Maximum punching size: 80*80mm; Maximum shearing width: 1500mm; Automatic feeding length: 0-2000mm; Worktable size: 2500mm (length) × 1800mm (width) × 1200mm (height); Main motor power: 15KW, hydraulic system pressure: 20MPa; Control mode: 10-inch touch screen PLC control system; Punching and shearing cycle speed: 10-15 times/minute; Total net weight: 6800kg; Packaging size: 3200*2400*1500mm; Safety protection: fully enclosed protective cover, emergency stop button, grating safety sensor; Cutter material: Cr12MoV vacuum quenched die steel.
It is suitable for large-scale wire mesh manufacturing enterprises, heavy-duty engineering machinery supporting factories, building curtain wall processing plants, industrial filter equipment manufacturers. It can produce heavy-duty equipment protective nets, building steel mesh, industrial filter grilles, container skeleton nets and other large high-specification steel mesh products, adapting to mass scaled production needs and supporting 24-hour continuous stable operation.
