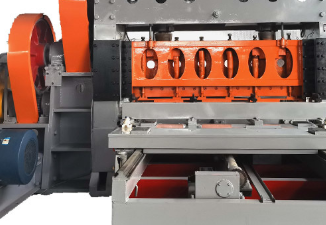

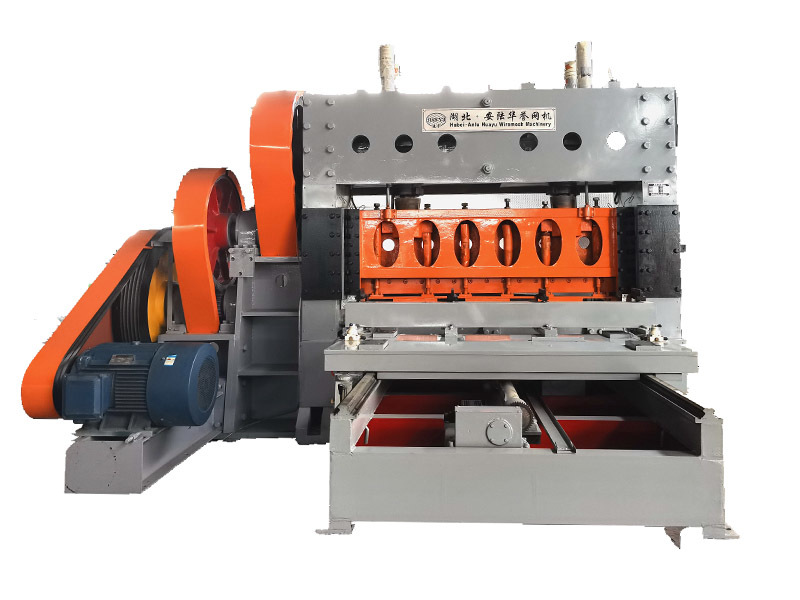

It adopts a lightweight cast frame and manual hydraulic control system, which can quickly access the standard civil power supply without complex power installation. It is equipped with a forklift-compatible base, which can be quickly transferred to any operation site by forklift. The maximum processing thickness can reach 2mm, adapting to the processing requirements of thin-plate steel mesh. The body weight is only 320kg, and it can be moved by a single person through the roller base. Compared with traditional portable stamping equipment, it has higher processing accuracy and better mesh consistency, solving the problem of insufficient accuracy of on-site manual processing. At the same time, it is equipped with a safety protection handle to avoid the risk of hydraulic clamp injury during operation, complying with CE safety certification standards.
Maximum processing sheet thickness of 2mm, maximum processing width of 800mm, punching cycle speed of 15 times per minute, main drive motor power of 1.5KW, total net weight of 320kg, overall dimensions of 1200mm in length, 800mm in width and 1300mm in height. Applicable steel types include cold-rolled steel, galvanized thin sheet and aluminum alloy thin sheet, supporting two standard mesh hole processing of diamond and square. The control mode is manual hydraulic control, supporting two power supply modes of 220V civil single-phase power and 380V industrial three-phase power, passing CE safety certification, 2 sets of standard mesh molds are standard configured, and it is equipped with a moving roller base and traction hook.
It is suitable for temporary protective mesh processing at construction sites, small steel mesh processing in outdoor metal maintenance stores, small grille plate production for container modification, and outdoor advertising sign metal mesh processing, and can also be used for temporary exhibition protective fence processing. It adapts to the flexible production needs of mobile processing individual industrial and commercial households and outdoor construction teams, and can carry out processing business without a fixed workshop.
