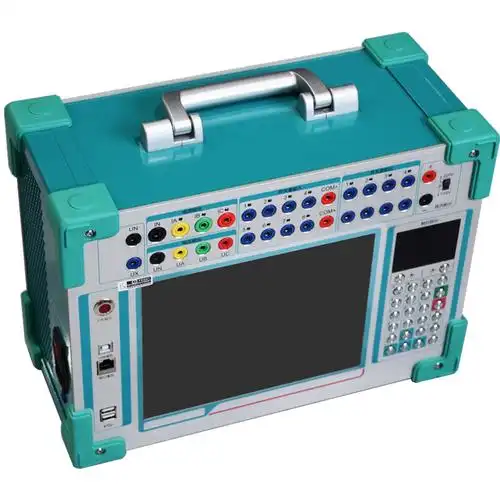

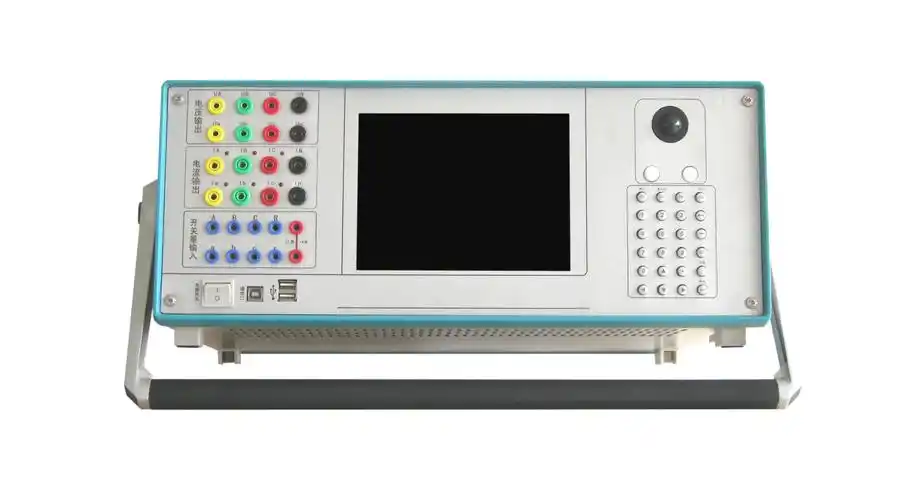

This intelligent relay protection tester has multiple core innovative advantages to solve the pain points of traditional power grid testing. First, it is equipped with AI fault diagnosis algorithm, which can automatically analyze the test data and identify the fault types and hidden dangers of relay protection devices, reducing the professional requirements for operation and maintenance personnel. Second, it supports WiFi and 5G remote data transmission, which can automatically upload test reports to the cloud management platform, realizing real-time data sharing and archiving among multiple teams. It has a 15.6-inch large touch screen, which can display real-time test data and fault analysis results. In addition, it supports multi-device networking testing, which can complete the joint debugging of multiple relay protection devices at the same time, greatly improving the testing efficiency of large-scale power grid projects.
The product specifications of this intelligent cloud-connected relay protection tester are as follows: overall dimension is 420mm*350mm*180mm, net weight is 12.5kg. It supports dual power supply modes: AC 220V ±10% and DC 12V external power supply. The display is a 15.6-inch TFT touch screen with a resolution of 1920*1080. The built-in storage can store up to 10000 sets of test data. The test channel configuration includes 12 current channels (0~100A) and 12 voltage channels (0~1200V), with a measurement accuracy of 0.03 level. The standard communication interfaces include USB 2.0, Ethernet, WiFi and 5G module, and the protection grade is IP54. It also supports remote debugging and control through the cloud management platform.
This intelligent cloud-connected relay protection tester is suitable for large-scale power grid construction, intelligent substation debugging and large-scale power equipment maintenance projects. It can be used for the type test and commissioning of relay protection devices in 110kV and above substations, the joint debugging of multiple relay protection devices in intelligent power grids, and the centralized management of test data through the cloud platform. It can also assist large power grid enterprises to realize the standardization and digitization of relay protection testing work, improve the management level of power equipment maintenance, and reduce the operation and maintenance costs of power systems.
