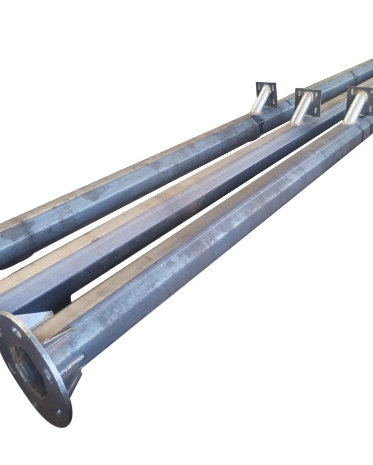

Crafted from high-quality Q235B low carbon steel, this octagonal pole boasts exceptional structural rigidity to withstand heavy loads and strong winds up to Grade 12. Its double-layer surface treatment—hot-dip galvanization with a thickness of over 85μm followed by electrostatic spraying of 60μm—creates a robust barrier against rust, acid rain, and UV radiation, ensuring a corrosion resistance life of more than 25 years. The modular design allows for quick on-site installation with embedded bolt fixation, reducing construction time by 30% compared to traditional poles. Additionally, the tapered octagonal shape minimizes wind resistance, while the uniform gray finish blends seamlessly with urban landscapes, eliminating visual clutter. It also pre-reserves wiring channels to accommodate smart lighting system upgrades, future-proofing urban lighting infrastructure.
The pole has an overall height of 10 meters, with a tapered octagonal cross-section that narrows from 280mm at the base to 120mm at the top. The wall thickness maintains a consistent 3.5mm throughout the main body, ensuring uniform load-bearing capacity. The flange plate measures 600*600*16mm, made of high-strength carbon steel to provide a stable connection with the concrete foundation. The hot-dip galvanization process adheres to GB/T 13912-2002 standards, with zinc coating thickness meeting national anti-corrosion requirements. The electrostatic spraying layer uses weather-resistant polyester powder, with a surface glossiness of 80±5 units. The pole’s total weight is 185kg, and it can support a maximum lamp load of 150kg. Wiring channels with a diameter of 50mm are pre-installed along the inner wall to facilitate cable routing for LED lamps and smart control devices.
This product is ideally suited for large-scale municipal lighting projects, including urban primary and secondary roads, central business district pedestrian streets, urban squares, and residential community main roads. It is a preferred choice for municipal engineering contractors, urban management bureaus, and real estate developers engaged in urban infrastructure construction. In urban main roads, it can mount high-power LED street lamps to cover a lighting area of up to 120 square meters per pole, ensuring clear visibility for vehicles traveling at 60-80km/h. In pedestrian streets and squares, it can be paired with decorative LED lanterns to create a warm, safe night-time environment. It is also compatible with smart lighting control systems, supporting remote dimming and fault monitoring to reduce energy consumption and maintenance costs.
