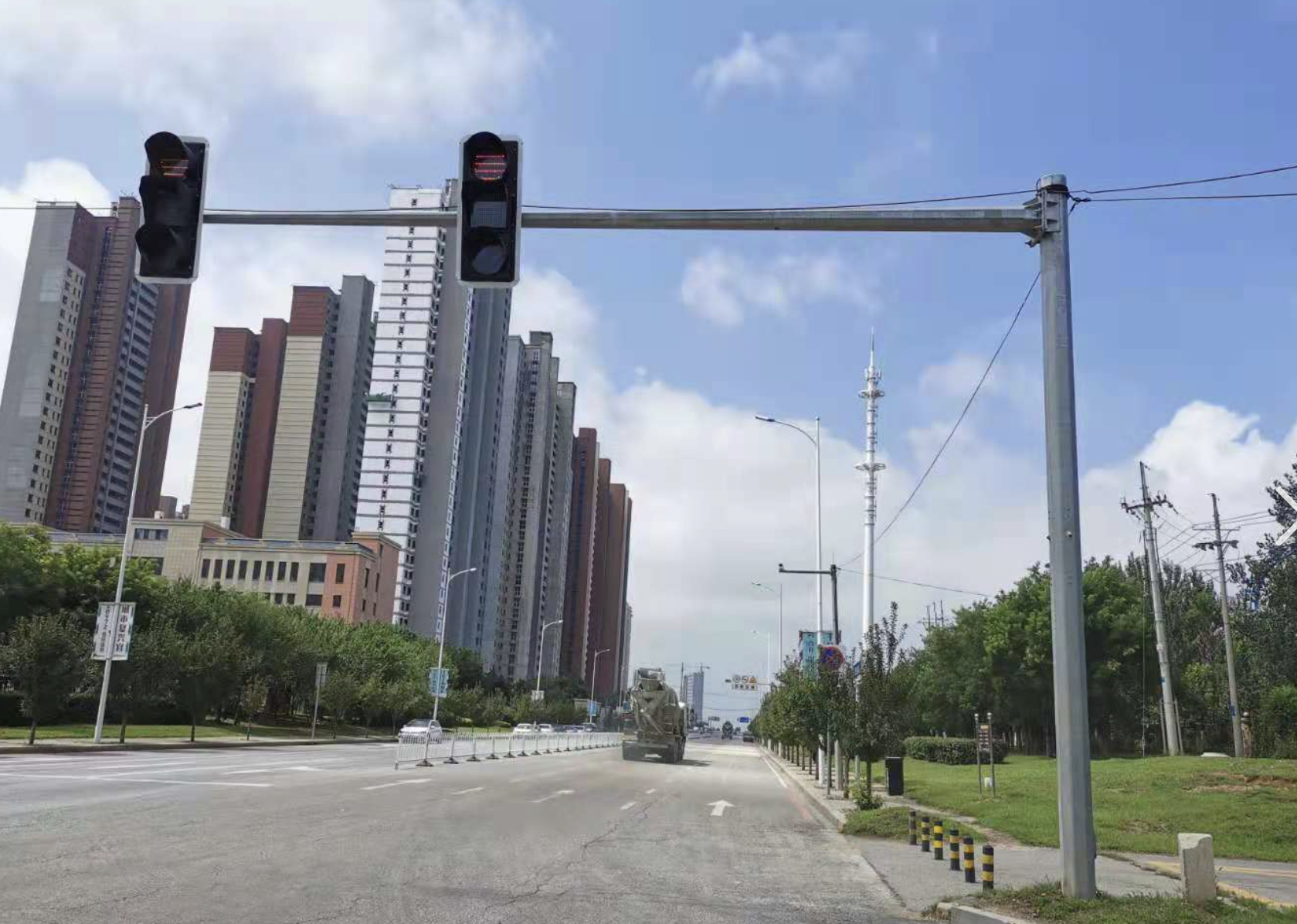

This traffic signal pole stands out with its octagonal structure, which offers superior load-bearing capacity compared to round poles, making it ideal for supporting multiple heavy devices like high-resolution surveillance cameras and large LED traffic lights. The hot-dip galvanization process creates an 80-micron thick zinc layer that penetrates every weld and crevice, greatly reducing rust and corrosion risks in coastal or industrial areas. The additional polyester powder coating not only enhances aesthetic appeal but also provides an extra barrier against UV radiation and chemical erosion. The dual-arm design with adjustable mounting brackets allows flexible positioning of traffic signals and signs to optimize visibility for drivers from all directions. Its reinforced flange base with 12 high-strength anchor bolts ensures firm fixation even during extreme weather events like typhoons or heavy snowstorms. The integrated access door with lockable design ensures safe and convenient inspection of internal wiring, reducing the need for specialized maintenance tools and minimizing downtime.
The pole features a standard height of 12 meters, with customizable options ranging from 8 to 15 meters to adapt to different road widths and traffic volumes. Each arm measures 6 meters in length, with adjustable angles between 0° and 90° to accommodate various signal placement requirements. The wall thickness of 8 mm is engineered to withstand wind speeds of up to 45 m/s (12-grade wind), providing stable support for up to 150 kg of equipment per arm. The main pole diameter tapers from 350 mm at the base to 200 mm at the top, ensuring optimal structural balance and material efficiency. The flange plate is 600 mm x 600 mm x 20 mm, with 12 M30 anchor bolt holes for secure installation on reinforced concrete foundations. Internal wiring slots with a width of 100 mm and height of 80 mm accommodate up to 20 cables, including power lines, signal cables, and data transmission wires. The total weight of the pole (excluding accessories) is 1,200 kg, and the surface finish is available in RAL colors like traffic gray, black, or custom hues as per client requirements. All welding joints are ground smooth and inspected via ultrasonic testing to ensure structural integrity, and the product undergoes a 48-hour salt spray test to validate corrosion resistance.
This heavy-duty octagonal signal pole is primarily used in high-traffic urban arterial roads, busy intersections, and central business districts where multiple traffic control devices need to be installed simultaneously. It is an essential component for smart city traffic management systems, supporting the integration of traffic lights, adaptive signal controllers, and AI-powered surveillance cameras to enable real-time traffic flow optimization. Municipal engineering departments rely on this pole for road safety improvement projects, such as upgrading outdated signal systems or installing new intersections in rapidly developing urban areas. It also suits industrial zones and port areas, where strong wind resistance and corrosion protection are critical for maintaining uninterrupted traffic operations. Additionally, it can be deployed in large-scale event venues like stadiums or exhibition centers to manage temporary traffic surges, providing reliable support for temporary signal and monitoring setups. The customizable design makes it adaptable to various urban planning scenarios, from narrow city streets to wide multi-lane expressways.
