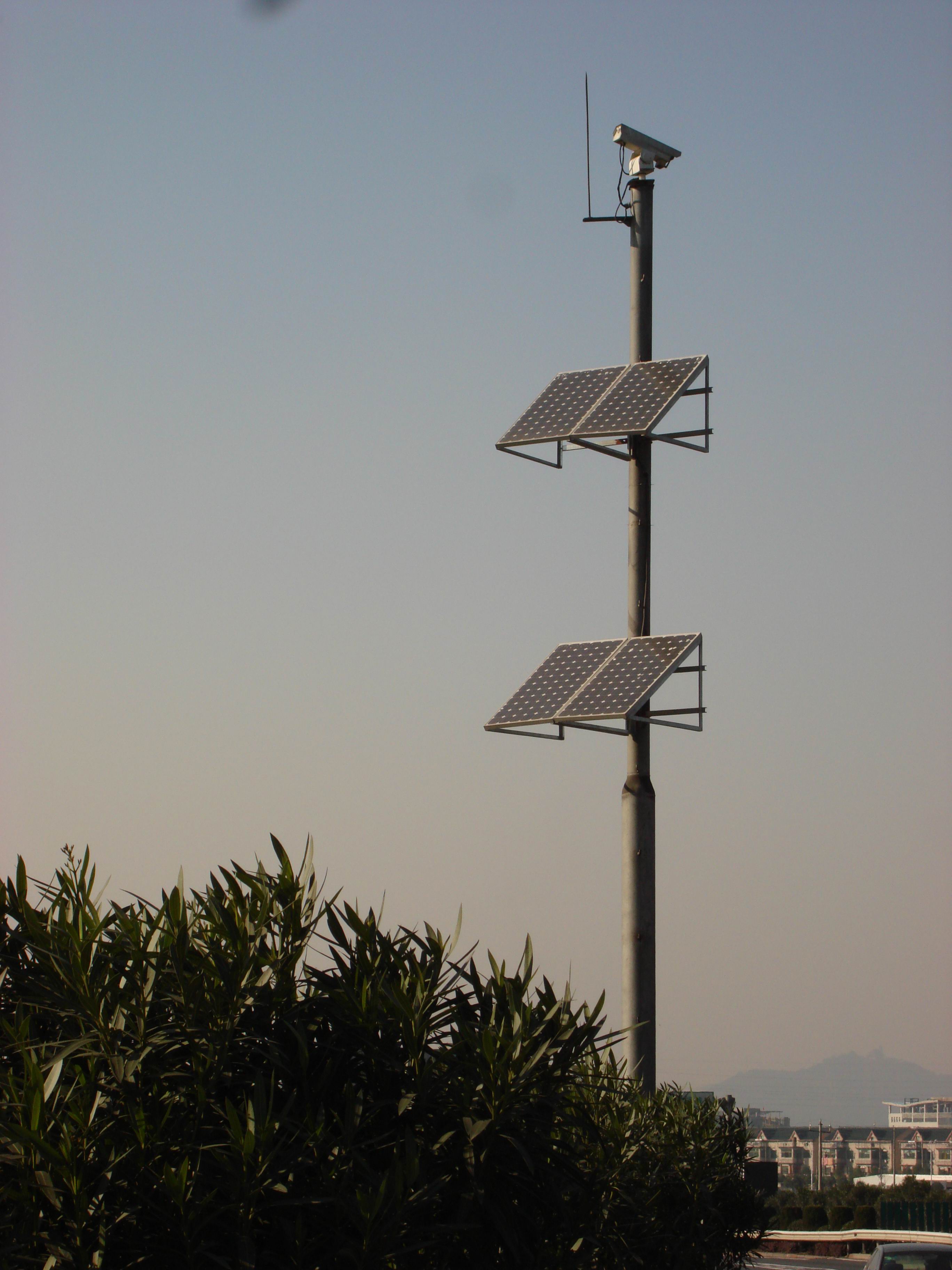

The key features of this solar-powered monitoring pole include its self-sustaining power system, which consists of a 20W monocrystalline solar panel and 100Ah lithium-ion battery, providing up to 7 days of continuous power for low-power IP cameras even in rainy or cloudy conditions. Its lightweight aluminum alloy and carbon fiber composite construction weigh only 65kg, making it easy to transport and install without heavy machinery. The ground screw installation method eliminates the need for concrete foundations, reducing installation time by 60% and minimizing environmental impact. Its anodized coating meets ISO C3 mild corrosion resistance standards, protecting against rust and corrosion in rural and forested areas. The integrated PIR motion sensor detects human or animal movement within a 15-meter range, triggering camera recording and sending real-time alerts to mobile devices via Wi-Fi or cellular networks. Its IP65 protection grade ensures resistance to rain and dust, while its 20-year service life provides long-term reliability in remote outdoor environments. The pole also features adjustable camera mounting brackets, allowing flexible positioning to cover wide areas, and its moss green color blends seamlessly with natural landscapes, avoiding visual disruption to park visitors or wildlife.
The Solar-powered Low-energy Park Surveillance Pole has a total height of 6 meters, with a tapered pole body made of aluminum alloy and carbon fiber composite, featuring an upper diameter of 110mm and a lower diameter of 160mm, and a wall thickness of 4mm for optimal strength-to-weight ratio. The pole weighs 65kg, with a ground screw mounting system that requires no concrete foundation, reducing installation time and environmental impact. It is equipped with a 20W monocrystalline solar panel with a conversion efficiency of 22.5%, providing sufficient power to charge the 100Ah lithium-ion battery. The battery has a cycle life of 2000+ times, ensuring reliable power supply for up to 20 years. The integrated PIR motion sensor has a detection range of 15 meters and a detection angle of 120 degrees, triggering camera recording and real-time alerts. The adjustable camera mounting bracket supports a maximum load of 15kg, compatible with most low-power IP cameras and wireless Wi-Fi cameras. The pole's anodized coating has a thickness of 15-20μm, meeting ISO C3 mild corrosion resistance standards. The IP65-rated junction box houses all electrical components, ensuring safe operation in temperatures ranging from -30°C to 60°C. The pole is painted with RAL6005 moss green polyester powder coating, with a thickness of 50-60μm for enhanced weather resistance and landscape integration.
This solar-powered monitoring pole is ideally suited for remote outdoor areas without grid power access, including city parks, national forests, wildlife reserves, rural roads, and farmland. It is a park managers looking to enhance security for visitors and protect natural resources from vandalism or theft, as well as for environmental conservation organizations monitoring wildlife activity. Rural communities can use it to monitor remote roads and properties, reducing the risk of theft and trespassing. It is also suitable for use in construction sites and temporary event venues, where temporary surveillance coverage is needed without complex wiring. The pole's lightweight design and ground screw installation make it easy to deploy in remote locations, while its self-sustaining power system eliminates the need for grid connection, reducing energy costs and environmental impact. Its moss green color blends seamlessly with natural landscapes, avoiding visual disruption to park visitors or wildlife, and its PIR motion sensor provides real-time alerts, enhancing security and reducing false alarms. Additionally, it can be customized to meet specific project requirements, such as adjusting pole height, upgrading solar panel power, or adding additional sensors for environmental monitoring.
