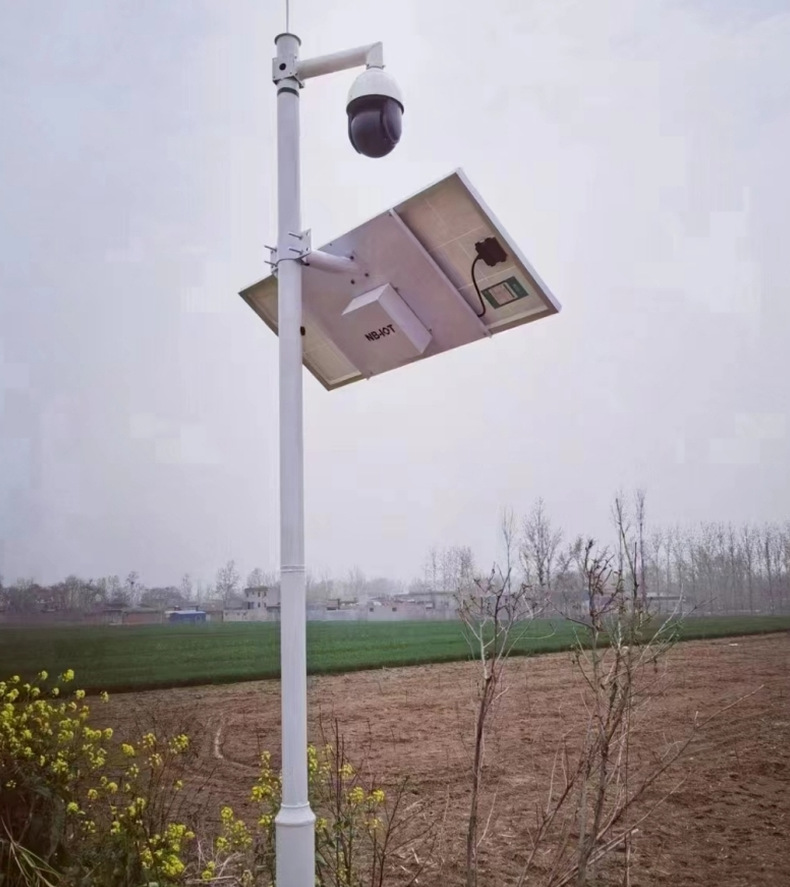

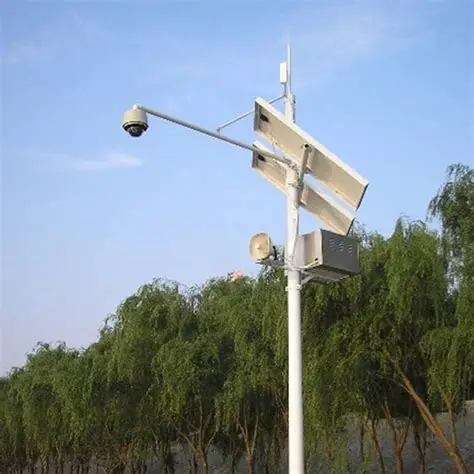

The biggest feature of this monitoring pole is its fully independent solar power supply system, which is equipped with a 150W monocrystalline silicon solar panel and a 50Ah lithium iron phosphate battery, which can provide continuous power for the 10W HD dome camera for 72 hours even in continuous rainy days. Adopting Q235 carbon steel material, it has sufficient strength to support the upper camera equipment, and the hot-dip galvanization + electrostatic spraying surface treatment can effectively resist corrosion and rust, ensuring a service life of more than 10 years. The installation method of embedded anchor cage is simple and fast, and the entire installation can be completed in 2 hours with simple tools, which is very suitable for small-scale residential area transformation projects. In addition, the pole is equipped with a built-in surge protection device, which can effectively protect the camera and power supply system from lightning damage in thunderstorm weather. The IP65 protection grade ensures that the internal components are not affected by rain and dust, and can operate stably in outdoor environments.
The overall height of the pole is 6 meters, with a cylindrical structure, the diameter of the bottom is 180mm, the diameter of the top is 120mm, and the wall thickness is 4mm, which can provide stable support for the 2kg HD dome camera. The base anchor cage adopts 4 M16 threaded steel bars with a length of 1.2 meters, which needs to be embedded in a 1-meter-deep concrete foundation to ensure the stability of the pole. The internal wiring channel has a diameter of 30mm, which can accommodate the power cable of the camera and the solar panel. The wind resistance grade reaches Grade 10, which can withstand strong winds of up to 28m/s, suitable for most residential areas in inland cities. The solar panel has a conversion efficiency of 22%, which can quickly store electric energy in sunny days, and the lithium iron phosphate battery has a cycle life of more than 2000 times, which is durable. The working voltage of the whole system is DC12V, which is safe and reliable, avoiding the risk of electric shock during installation and use.
This low-power solar monitoring pole is mainly suitable for residential security scenarios, including ordinary residential quarters, villa areas, rural homesteads, factory dormitory areas, and school dormitory areas. In residential quarters, it can be installed at the community entrance, unit building entrance, underground parking lot entrance, and other key positions to monitor the entry and exit of personnel and vehicles, and provide evidence for security incidents. In rural areas, it can be installed at the village entrance, farmyard periphery, and orchard areas to prevent theft of agricultural products and livestock. In addition, it is also suitable for temporary construction sites, outdoor storage yards, and other temporary monitoring scenarios, because it does not need wiring and can be quickly installed and put into use. For old residential quarters without monitoring facilities, this product can realize the transformation of security monitoring without destroying the original building structure and road surface, which is economical and practical. It can also cooperate with the community's smart property system to realize remote viewing and alarm push functions through mobile phones.
