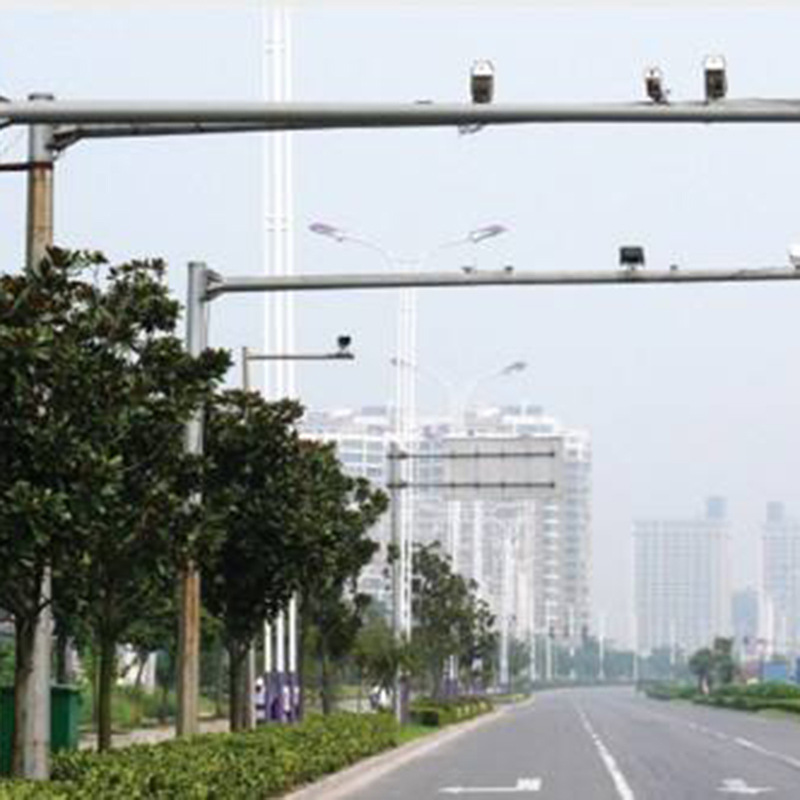

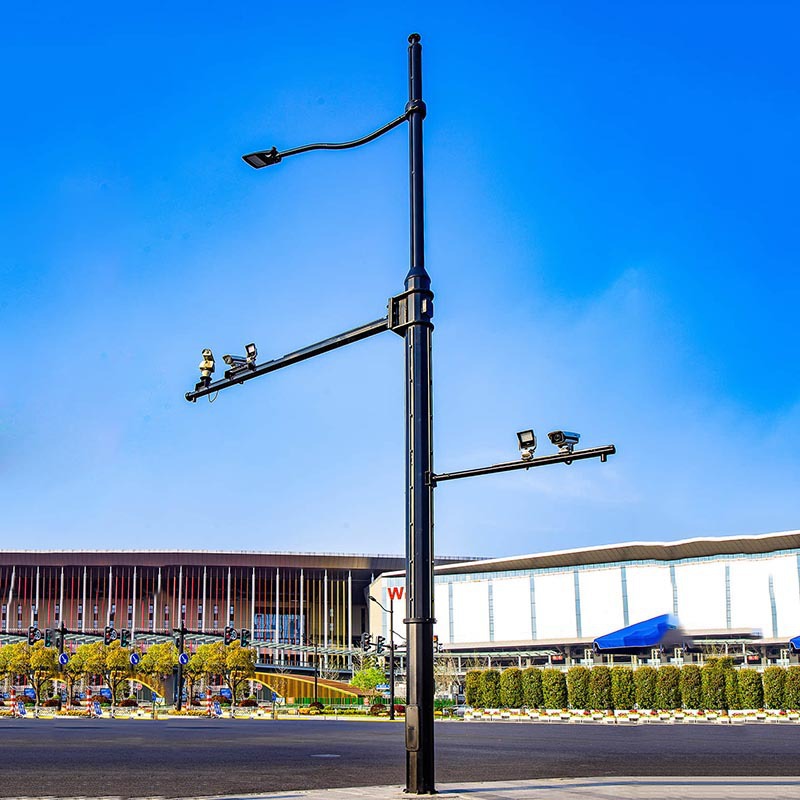

Smart Integrated Traffic Monitoring Pole

Basic Info

Designed exclusively for urban intelligent traffic management, this integrated monitoring pole combines high-definition video surveillance, real-time traffic flow detection, and illegal behavior capture functions into one streamlined structure. It addresses key pain points of traditional surveillance poles, such as complex wiring, single-function limitations, and poor adaptability to high-traffic scenarios. Ideal for urban trunk roads, highway entrances and exits, tunnel portals, and busy intersections, it empowers traffic management departments to achieve automated data collection, real-time incident response, and efficient traffic scheduling. With robust construction and multi-functional integration, it serves as a core supporting facility for smart city transportation systems, significantly reducing manual patrol costs and enhancing overall road safety and smoothness.

Key attributes

Material

High-grade Galvanized Steel

Overall Height

8m

Cantilever Arm Length

3m

Wind Resistance Rating

Grade 12

Protection Rating

IP67

Interface Type

RJ45 + RS485

Installation Method

Flange Embedded Foundation

Compatible Devices

HD Dome Camera + Traffic Flow Detector

Surface Treatment

Hot-dip Galvanizing + Electrostatic Spraying

Warranty Period

5 Years

Customer reviews

Jennifer · Retail Store Owner

The vandal-resistant design of these surveillance poles gives me peace of mind for my downtown location. The smooth surface prevents climbing attempts, and the tamper-proof fasteners have deterred would-be thieves. The pole's vibration damping feature keeps camera footage stable even during windy days. For the price, the build quality exceeds expectations.

Sophia Rossi · Port Authority Engineering Supervisor

The corrosion resistance of the port&wharf high mast lights exceeded expectations.After two years in the salty,humid harbor environment,the lamp bodies and coatings show no significant rust.Their high protection rating(IP66)and excellent wind resistance design(>40m/s)ensure all-weather safety lighting for the operational apron with minimal failure rate.

John Smith · Security Manager

The installation of these monitoring poles has significantly enhanced our surveillance capabilities. The sturdy construction ensures durability even in harsh weather conditions, and the height provides an unobstructed view of the entire perimeter. The ease of installation and the ability to integrate with existing CCTV systems make them a valuable addition to our security infrastructure.

Product Description

Product features:

The smart integrated traffic monitoring pole boasts a one-piece welded structure that eliminates redundant assembly parts, reducing installation time by 30% compared to traditional split-type poles. Its high-grade galvanized steel material undergoes double anti-corrosion treatment, ensuring long-term durability in harsh outdoor environments with acid rain, extreme temperatures, and heavy dust. The built-in multi-interface design supports simultaneous connection of HD cameras, traffic flow sensors, and LED warning signs, realizing multi-dimensional data interaction. It also features an intelligent lightning protection system that can withstand 10kV surge voltage, avoiding equipment damage from thunderstorms. Unlike ordinary poles, it is pre-configured with a wiring channel that hides all cables, preventing external interference and improving overall aesthetic appeal in urban landscapes.

Product specifications:

This monitoring pole has an overall height of 8 meters, with a 3-meter cantilever arm extending horizontally to ensure optimal surveillance coverage of road sections. The main pole has an outer diameter of 219mm at the bottom and tapers to 140mm at the top, with a wall thickness of 6mm, providing exceptional structural stability against strong winds up to 12 levels (wind speed of 32.7-36.9 m/s). The surface is treated with hot-dip galvanizing (coating thickness ≥85μm) followed by electrostatic spraying (coating thickness ≥60μm), meeting national anti-corrosion standards. It supports both RJ45 Ethernet and RS485 serial communication interfaces, with a working voltage range of AC220V/DC12V. The flange base measures 500*500*16mm, requiring a 600*600*800mm concrete foundation for secure installation. All components are IP67 rated, ensuring full protection against dust ingress and temporary submersion in water up to 1 meter depth.

Product application:

This product is primarily applied in urban intelligent transportation scenarios, including busy trunk roads, ring roads, and highway interchanges where real-time traffic monitoring and incident response are critical. It is also suitable for tunnel entrances and exits, where visibility is low, and continuous surveillance helps detect traffic jams, accidents, or vehicle breakdowns promptly. Additionally, it can be deployed in key urban areas such as commercial centers and school zones to monitor traffic violations like illegal parking and running red lights, ensuring pedestrian safety and smooth traffic flow. In smart city projects, it integrates with city-level traffic management platforms to provide data support for traffic flow prediction and signal optimization, making it an indispensable tool for modern urban traffic governance.
