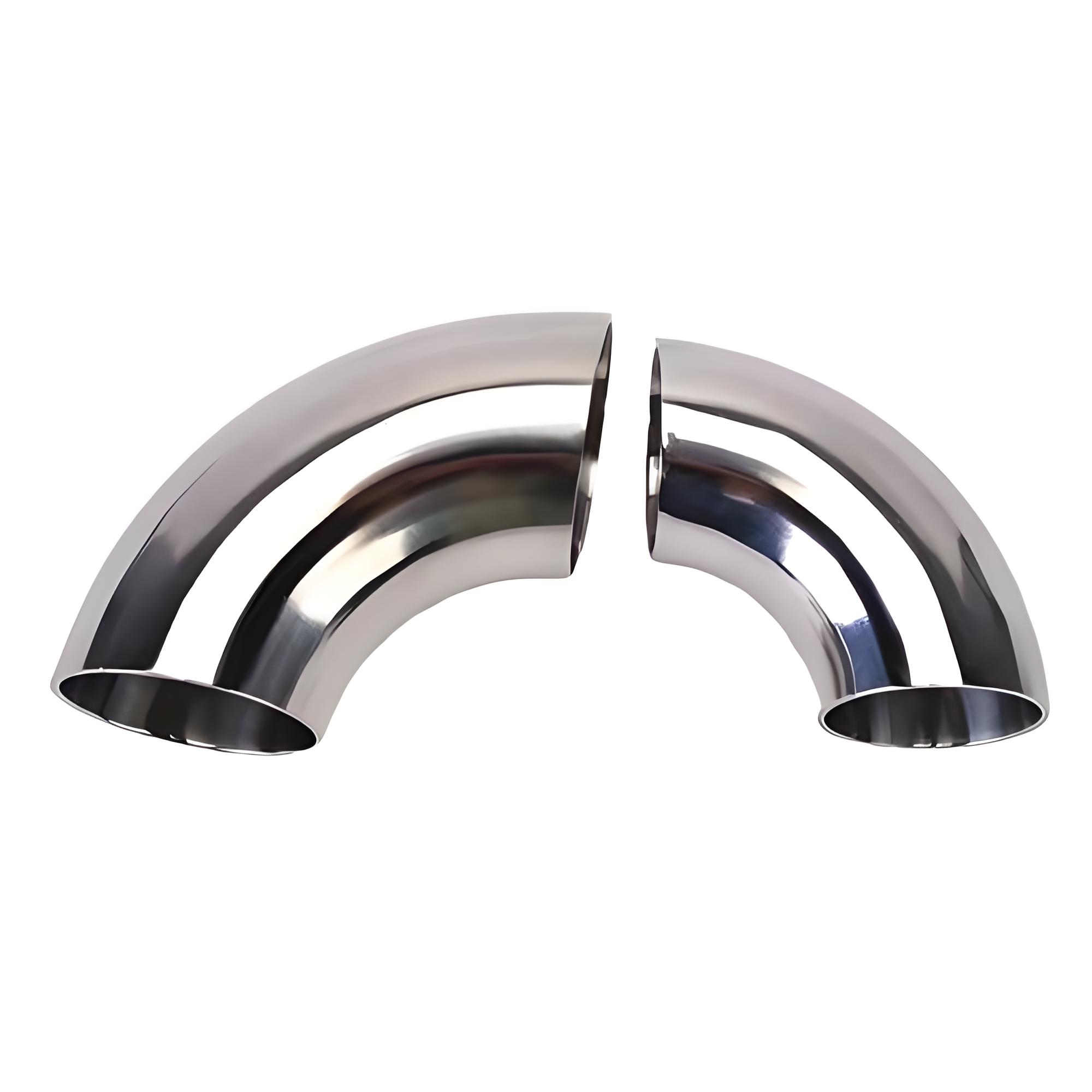

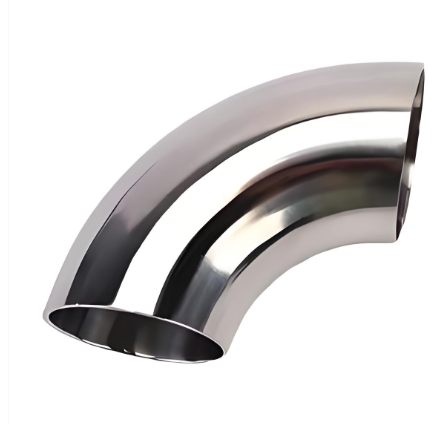

The core advantages of this 316 stainless steel right angle elbow include its 316 marine grade stainless steel material, which has excellent resistance to seawater corrosion and pitting corrosion, making it suitable for marine and high-corrosion industrial scenarios. The socket weld connection design conforms to ANSI B16.11 standards, providing excellent sealing performance and high connection strength, suitable for high-pressure operating conditions. The pickled and passivated surface treatment improves the surface corrosion resistance and aesthetics, eliminating the need for additional painting. All products undergo non-destructive testing before leaving the factory , extending the service life. It has a wide range of nominal diameter options, adapting to most standard seamless steel and stainless steel pipe specifications.
This 316 stainless steel right angle elbow provides nominal diameter options ranging from DN15 (1/2 inch) to DN100 (4 inch). The wall thickness ranges from 2mm to 7mm depending on the nominal diameter, with a precise 90-degree bending angle to ensure smooth flow of conveying media. The socket depth conforms to ANSI B16.11 standards, ensuring reliable connection with seamless steel and stainless steel pipes. The surface roughness is controlled at Ra≤1.6μm after pickling and passivation. All products undergo hydraulic pressure tests and non-destructive testing before leaving the factory to ensure reliable quality. The overall weight ranges from 0.3kg for the DN15 specification to 6.2kg for the DN100 specification.
This 316 stainless steel right angle elbow is mainly applicable to ship ballast water pipelines, fuel pipelines, seawater desalination systems, offshore oil drilling platform process pipelines, chemical industry acid-base liquid conveying pipelines, coastal sewage treatment systems, and high-temperature high-corrosion industrial production pipelines. It complies with ABS and BV ship classification society certification standards, making it suitable for harsh marine engineering and high-corrosion industrial scenarios, providing reliable and durable pipe connection solutions.
