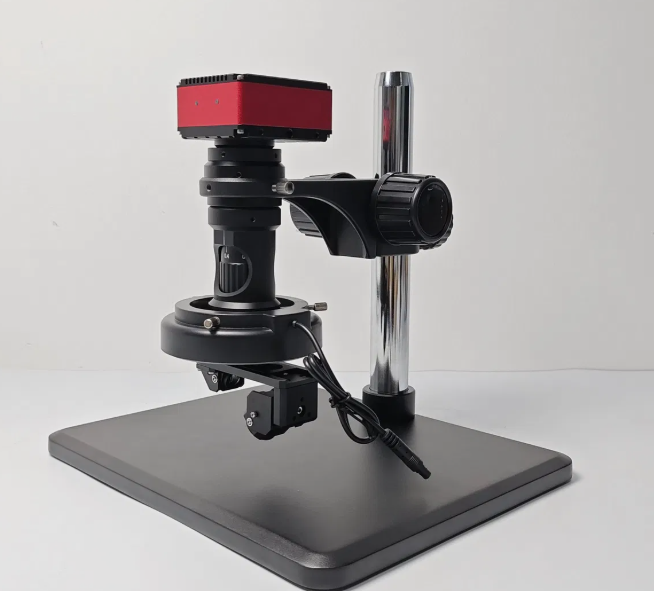

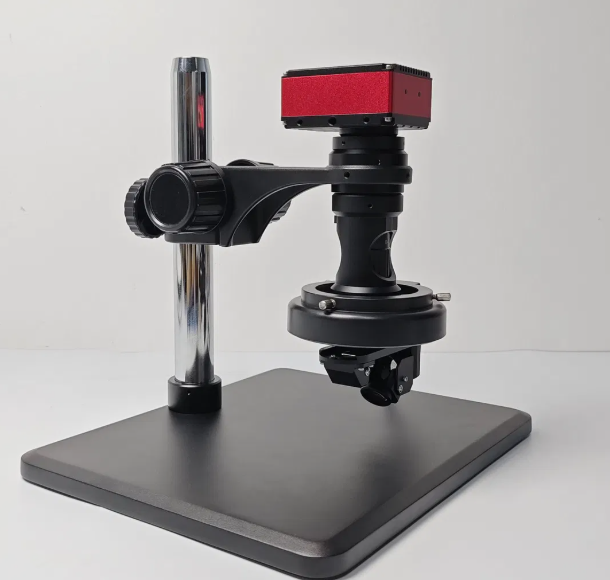

The core advantage lies in the minimalist operation interface and high cost performance positioning. It adopts stereoscopic parallax scanning technology, allowing users to observe real three-dimensional microscopic images directly through the screen without additional 3D glasses, and can switch between 2D/3D imaging modes to meet different observation needs. The adjustable annular LED fill light and 3D auxiliary illumination can adapt to observation samples with different reflectivity, avoiding local overexposure or dark areas. It supports real-time screen projection through an external display, and can also directly store the captured images to the built-in storage or export them to a computer, solving the problem that traditional microscopes cannot retain three-dimensional image records, suitable for student experiment courses and manual jewelry detail inspection.
The adjustable magnification range is 10x-200x, adopting stereoscopic parallax scanning 3D imaging scheme, with native resolution of 1920*1080P, supporting real-time high-definition imaging, photo taking and video recording. The working distance ranges from 30mm to 120mm, which can adapt to observation samples of different sizes. The fuselage adopts an aluminum alloy base and ABS engineering plastic shell, with a total weight of about 1.8kg and dimensions of 220mm (length) * 180mm (width) * 150mm (height). It supports AC 100-240V mains power or 5V/2A USB power supply, with built-in 32GB local storage, compatible with Windows 7 and above, Mac OS 10.12 and above operating systems, and equipped with dual interfaces of USB-A and HDMI, which can connect to external devices such as computers and monitors.
It is mainly applicable to middle school physics/biology experiment teaching, small electronic component maintenance and inspection, manual jewelry detail inspection, stamp and coin appraisal and other scenarios. It can provide a low-cost 3D microscopic observation solution for educational institutions, helping students intuitively understand three-dimensional microscopic structures, and also help small workshops quickly check part defects and details.
