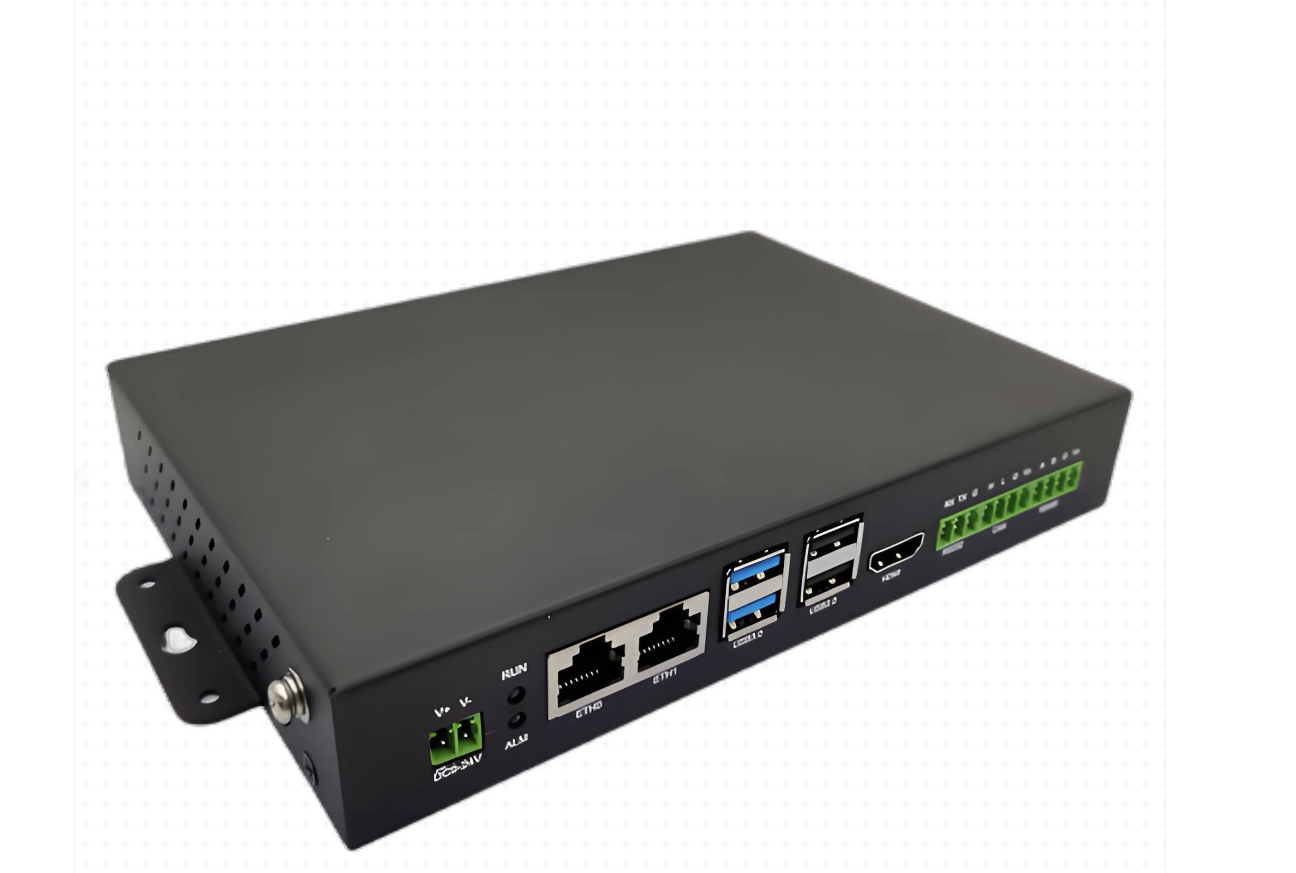

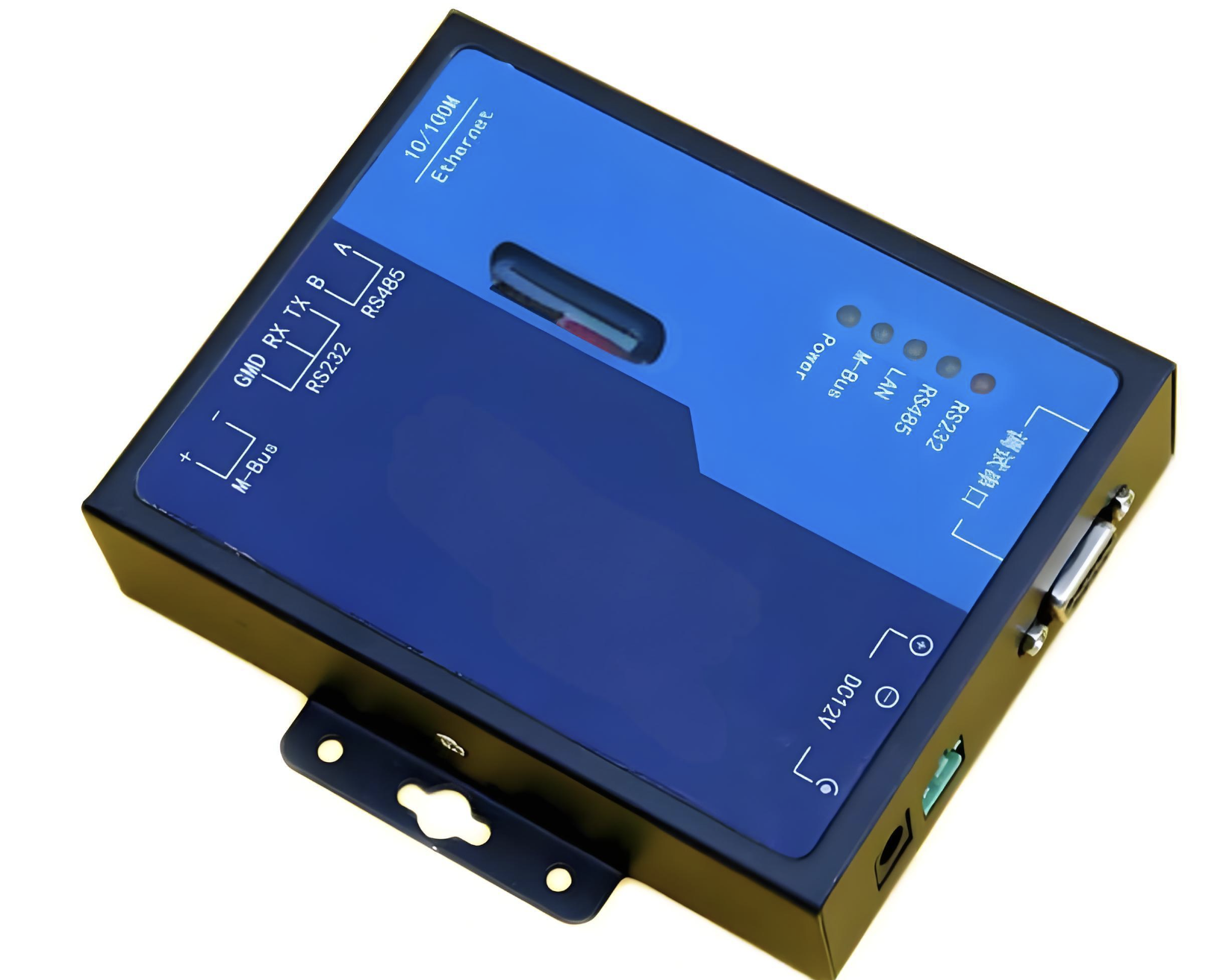

It supports multiple mainstream industrial communication protocols such as Modbus, MQTT, and LoRaWAN, compatible with measuring instruments of different brands and types. It can connect up to 256 measuring instruments at the same time, meeting the measurement needs of large parks. It adopts AES-256 data encryption technology to ensure the security and privacy of meter reading data. It is equipped with an 8-inch LCD touch screen, which can locally view meter data and gateway operating status. It supports two power supply modes of AC220V and DC24V, adapting to the power supply conditions of industrial scenarios. It supports remote firmware upgrade and operation and maintenance, reducing later maintenance costs, and provides full industry standard API interfaces, which can quickly connect to the enterprise's existing management system.
Size: 280mm×220mm×80mm, Weight: 1.2kg, Working Voltage: AC220V (±10%)/DC24V (±5%), Communication Interfaces: RJ45×2, RS485×4, Max Connected Meters: 256 Units, Data Encryption Standard: AES-256, Working Temperature: -40℃~70℃, Protection Grade: IP65, Storage Capacity: 128GB, Communication Bandwidth: 100Mbps, Working Humidity: 5%~90% (Non-condensing).
It is suitable for large factory production measurement management, unified management of multi-enterprise measurement in industrial parks, energy consumption measurement of port and terminal equipment, and measurement management of urban smart municipal facilities. It realizes unified collection, storage and upload of data of multiple types and brands of measuring instruments, helping enterprises realize intelligent analysis and management of measurement data.
