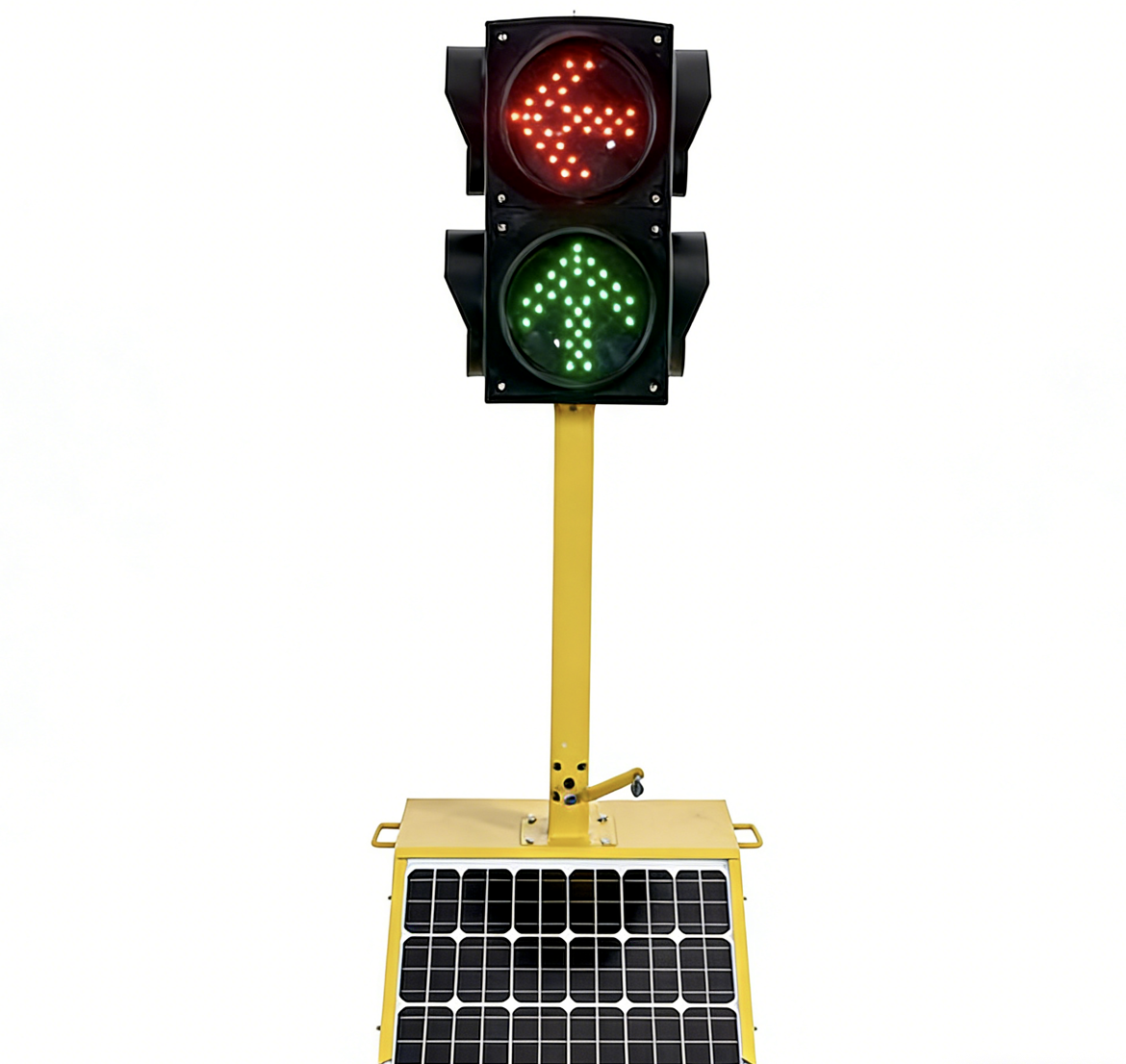

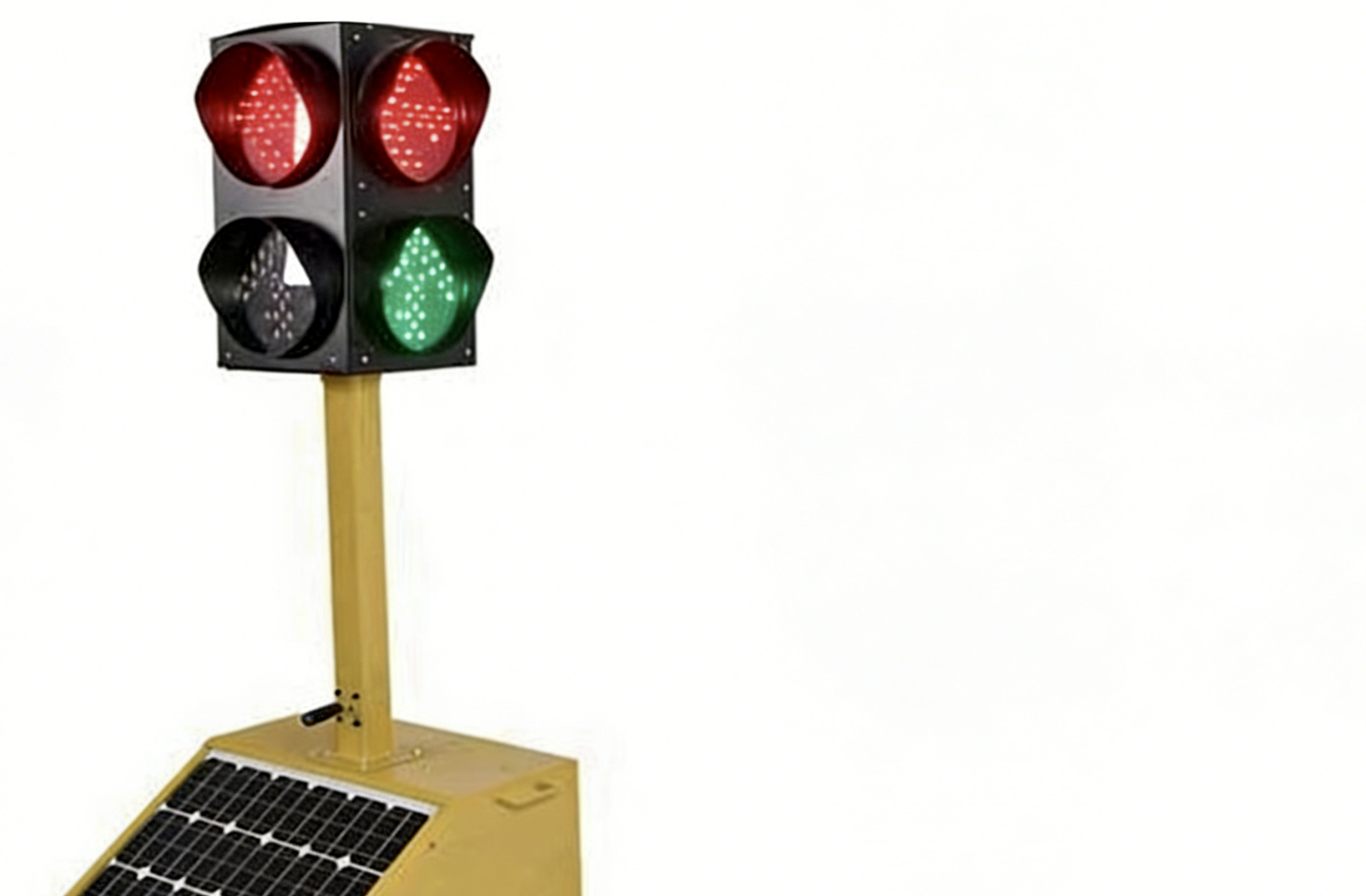

The key advantage of this pole is its retractable and foldable design, which reduces its storage size to 2 meters in height and 1 meter in width, enabling easy transportation in a standard pickup truck or utility vehicle. The high-strength aluminum alloy pole weighs only 350 kg, making it easy to set up and move by a small team of 2-3 workers without heavy lifting equipment. The rolling base with lockable casters allows smooth movement on paved roads and construction sites, with brakes that secure the pole in place during operation. The solar-powered system includes a 100W solar panel and a 12V 100Ah lithium-ion battery, providing continuous operation for up to 7 days without sunlight, ensuring reliable performance in all weather conditions. The anodized aluminum finish provides corrosion resistance, while the galvanized steel base prevents rust formation in muddy or wet construction environments. Additionally, the pole features quick-connect mounting brackets for temporary traffic lights and warning signs, reducing setup time to less than 30 minutes.
The pole has a telescopic height range of 4 to 8 meters, with a locking mechanism at each 1-meter interval to secure the desired height. The foldable single arm extends 3 meters horizontally, with a hinge that allows it to be folded parallel to the pole for transportation and storage. The aluminum alloy pole has a wall thickness of 4 mm, with a diameter that tapers from 180 mm at the base to 120 mm at the top, ensuring structural stability at maximum height. The galvanized steel base measures 600 mm x 600 mm x 10 mm, with four 10-inch lockable casters for mobility. The solar panel is mounted on a 360° adjustable bracket to optimize sunlight absorption, with a built-in charge controller to protect the battery from overcharging. The system can power up to two standard LED traffic lights or a variable message sign, with a low-battery alert indicator to notify users of power levels. The pole’s wind resistance rating of 10 grade ensures stable operation during moderate wind conditions, with the base designed to add additional weight (via water or sand filling) for enhanced stability in stronger winds. All components are IP65 rated for water and dust protection, suitable for outdoor use in rain, snow, and dust storms.
This retractable temporary signal pole is widely used in road construction sites, where it guides traffic around work zones and protects construction workers from oncoming vehicles. It is also deployed at accident sites to redirect traffic and prevent secondary collisions while emergency services respond to the incident. Event organizers use it for special events like outdoor concerts, sports games, and farmers’ markets, managing temporary traffic flow in parking lots and access roads. It is suitable for remote rural areas where grid power is unavailable, providing temporary traffic control during road repairs or bridge maintenance. Additionally, it can be used in disaster relief scenarios, such as after hurricanes or floods, to manage traffic in areas with damaged permanent traffic infrastructure. The solar-powered system makes it ideal for long-term temporary use, such as in housing developments under construction, where traffic control is needed for several months until permanent signals are installed.
