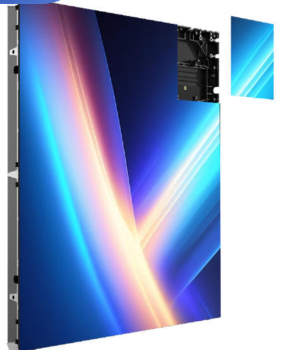

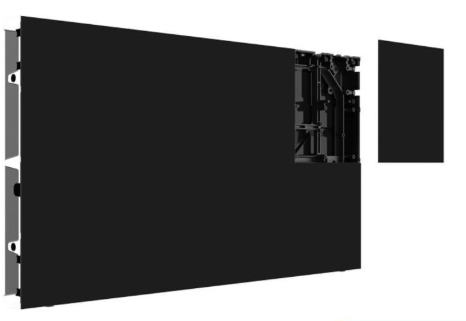

Mini LED Display P0.7

Basic Info

An ultra-high-definition display using Mini LED technology, suitable for high-end commercial display, professional monitoring, etc.

Key attributes

origin

china

LED Chip Size

<100μm

Packaging Method

COB / IMD

Substrate Material

Ceramic Substrate

Drive IC

Dedicated Mini LED Drive

Dimming Method

Local Dimming

Number of Zones

>10,000 zones per m²

Color Management

Hardware 3D LUT

Calibration Method

Spectrophotometer Calibration

Signal Interfaces

12G-SDI

Customer reviews

Project Director Chen · Office Director

As part of our smart streetlight project, these pole-mounted displays have operated very stably for over a year. The auto-dimming feature prevents light pollution at night, receiving positive public feedback. Through the cloud platform, we can centrally publish municipal notices, emergency alerts, and traffic information with high management efficiency. Their rugged design has also effectively resisted vandalism.

Thomas Wright · Colorist

This Mini LED monitor has become our new grading suite standard. The local dimming delivers exceptional contrast, allowing us to accurately judge highlight and shadow details in HDR content. The color accuracy is outstanding. We have not experienced any image retention common to OLEDs, even during long grading sessions, which is crucial for handling demanding projects.

Sophia Williams · Showroom Manager

We applied this transparent screen to our storefront windows. Its high light transmittance barely affects interior daylighting or the view from inside during the day. When playing product videos, the dynamic cars appear to integrate with the street scene, attracting numerous potential customers for inquiries. The thin installation did not compromise our original architectural design aesthetic.

Product Description

Product Features:

This display utilizes Mini LED chips with COB packaging,enabling a smaller,denser pixel layout for a seamless viewing experience.It achieves a high contrast ratio of 1,000,000:1 for deep blacks,and a peak brightness of 1,500 cd/m²for good visibility in various lighting conditions.Motion clarity is supported by a 120Hz refresh rate.Quantum dot technology delivers a wide DCI-P3 99%color gamut for vibrant and realistic colors.Full-array local dimming allows for precise brightness control in independent zones to enhance contrast.The design is streamlined with a thickness of only 25mm and a fanless cooling system for quiet operation.It supports 8K resolution at 120Hz for displaying high-definition content on a single screen and offers a long lifespan,typically rated up to 100,000 hours.

Product Specifications:

Pixel Pitch:0.7mm

Pixel Density:2,040,816 dots/㎡

Brightness:800-1,500 cd/m²(Peak)

Contrast Ratio:1,000,000:1

Color Gamut:DCI-P3 99%

Refresh Rate:120Hz

Response Time:<1ms(GtG)

Color Depth:12-bit

HDR Support:HDR10+,Dolby Vision

Maximum Input:8K 120Hz

Cabinet Thickness:25mm

Weight:Approx.40 kg/㎡

Power Consumption:Max 400W/㎡,Average 150W/㎡

Operating Temperature:0°C to+40°C

Product Applications:

Ideal for settings that demand high image quality,such as premium commercial spaces,luxury retail,art galleries,design studios,and film post-production suites.

In luxury retail environments,it can effectively showcase product details with high fidelity.

For art galleries and museums,it enables accurate color reproduction for displaying digital artworks.

In professional design and film post-production,it serves as a color-accurate reference monitor for 4K/8K video editing and color grading.

It is also suitable for virtual production stages,acting as a high-resolution background wall for film and television shooting.

The display supports high dynamic range(HDR)content,making it well-suited for presenting HDR films and games with enhanced contrast and color detail.

Frequently Asked Questions (FAQ)

Q：What's the difference between Mini LED and regular fine-pitch LED?

A：Key differences are chip size (<100μm) and packaging (COB/IMD). This enables higher pixel density (2.04M dots/m²), higher contrast (million-level), and better reliability.

Q：What does a 1,000,000:1 contrast ratio mean?

A：It means black levels. Through precise local dimming (>10,000 zones/m²), micro-areas can be independently controlled, achieving "blazing highlights and pure blacks" for highly three-dimensional images.

Q：Is it suitable for high-end retail stores?

A：Perfectly suited. Ultra-high resolution showcases luxury product details impeccably; wide gamut (DCI-P3 99%) and accurate color (ΔE<1) faithfully reproduce product colors, elevating brand prestige.

Q：Does it support 8K resolution?

A：Yes, it supports native 8K@120Hz signal input. A single screen can display full 8K UHD content without tiling, making it ideal for future 8K content monitoring and digital art.

Q：Why does the surface look smooth without a pixelated feel?

A：COB packaging integrates LED chips directly onto the substrate under a uniform optical layer, eliminating the "grainy" look of traditional SMD displays for a seamless, comfortable viewing experience.

Q：Are there specific content creation or optimization requirements for the Mini LED P0.7 display?

A：It is recommended to use content with a resolution of 8K or higher, preferably in HDR format (HLG or PQ) to fully leverage its high dynamic range advantages. During production, pay attention to preserving highlight and shadow details, avoiding large areas of pure black or overexposure to showcase its local dimming and ultra-high contrast performance.
