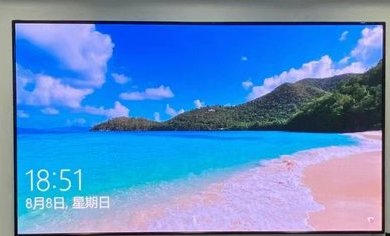

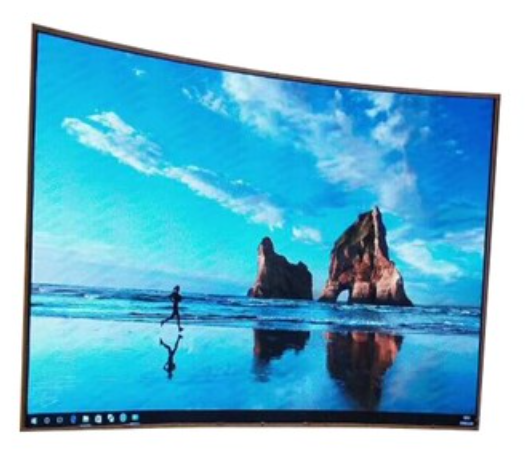

Indoor Full-Color LED Display P2.5

Basic Info

A cost-effective indoor commercial display suitable for retail stores, corporate lobbies, exhibition halls, and other venues.

Key attributes

origin

china

Package Type

SMD 2020

Pixel Pitch

2.5mm

Pixel Density

60,000 pixels/m²

LED Chip Brands

Epistar

Drive IC

Macroblock

PCB Material

FR-4 Double-sided Fiberglass Board

Mask Material

Black PC + Anti-UV Coating

Cabinet Material

Die-cast Aluminum

Power Supply Brands

Createlink

Customer reviews

Project Director Chen · Office Director

As part of our smart streetlight project, these pole-mounted displays have operated very stably for over a year. The auto-dimming feature prevents light pollution at night, receiving positive public feedback. Through the cloud platform, we can centrally publish municipal notices, emergency alerts, and traffic information with high management efficiency. Their rugged design has also effectively resisted vandalism.

Thomas Wright · Colorist

This Mini LED monitor has become our new grading suite standard. The local dimming delivers exceptional contrast, allowing us to accurately judge highlight and shadow details in HDR content. The color accuracy is outstanding. We have not experienced any image retention common to OLEDs, even during long grading sessions, which is crucial for handling demanding projects.

Sophia Williams · Showroom Manager

We applied this transparent screen to our storefront windows. Its high light transmittance barely affects interior daylighting or the view from inside during the day. When playing product videos, the dynamic cars appear to integrate with the street scene, attracting numerous potential customers for inquiries. The thin installation did not compromise our original architectural design aesthetic.

Product Description

Product Features:

The P2.5 full-color LED display uses SMD 3-in-1 surface-mount packaging technology,offering moderate brightness and vibrant,uniform colors.It features intelligent brightness adjustment,automatically adapting to ambient light to extend lifespan.The surface uses a matte black mask design to improve contrast and reduce glare.It supports multiple video interfaces,including HDMI,DVI,SDI,and DP,ensuring strong compatibility.Its modular design offers optional front or rear maintenance and flexible installation.The screen features seamless splicing and supports various creative shapes like curves and cylinders.Built-in temperature sensors and over-temperature protection ensure safety and reliability.

Product Specifications:

Resolution:160,000 pixels per square meter

Brightness:800-1200 cd/m²

Power Consumption:Max 550W/m²,Average 250W/m²

Viewing Angle:Horizontal 160°/Vertical 160°

Grayscale:14-bit

Refresh Rate:1920Hz

Display Colors:4.39 Trillion colors

Cabinet Dimensions:576x576x80mm

Weight:28 kg/m²

Lifespan:80,000 hours

Protection Rating:IP30

Operating Temperature:-10℃to+50℃

Control Method:Sending Card+Receiving Card

Scanning Method:1/8 Scan

Optimal Viewing Distance:3-20 meters

Product Applications:

Extensively used in shopping malls,brand stores,corporate image walls,exhibition halls,stage backdrops,hotel banquet halls,and other indoor commercial display settings.In retail environments,it can play promotional information and brand videos to attract customer attention.In corporate lobbies,it can display welcome messages,meeting guides,and company news.It supports simultaneous input from multiple sources and split-screen display of different content,making it suitable for information dissemination,advertising,and event showcases.Various installation methods include wall-mounting,ceiling suspension,and floor-standing.

Frequently Asked Questions (FAQ)

Q：Indoor Fine-Pitch LED Display P1.25

A：It offers a seamless view, higher brightness, and superior contrast without needing darkened rooms. It supports 4K/8K signals and multi-window display, ensuring clearer video conferences and better data visualization for modern smart conference rooms.

Q：What is the optimal viewing distance for a P1.25 fine-pitch screen?

A：The recommended viewing distance is 1.5 to 15 meters. Within this range, pixelation is virtually unnoticeable, providing an immersive HD viewing experience ideal for mid-to-large meeting rooms and command centers.

Q：What is its power consumption and heat generation like?

A：Featuring efficient, energy-saving design, its average power consumption is about 220W/m². Distributed drive technology and excellent heat dissipation ensure low-temperature operation and stable 24/7 performance for control room monitoring.

Q：Does the P1.25 screen require a professional team for installation and maintenance?

A：Its front-maintenance modular design allows for easier installation. However, for optimal results and safety, professional technicians are recommended for setup, calibration, and ongoing maintenance.

Q：What signal input interfaces does it support?

A：It offers strong compatibility, supporting mainstream HD interfaces like HDMI, DVI, DP, and SDI for easy connection to computers, video conferencing systems, cameras, and image processors.

Q：How is color and brightness uniformity across the entire screen ensured?

A：Each unit undergoes factory point-by-point brightness and chroma calibration, ensuring uniformity exceeds 98%. Advanced control systems also support remote recalibration for long-term color accuracy.
