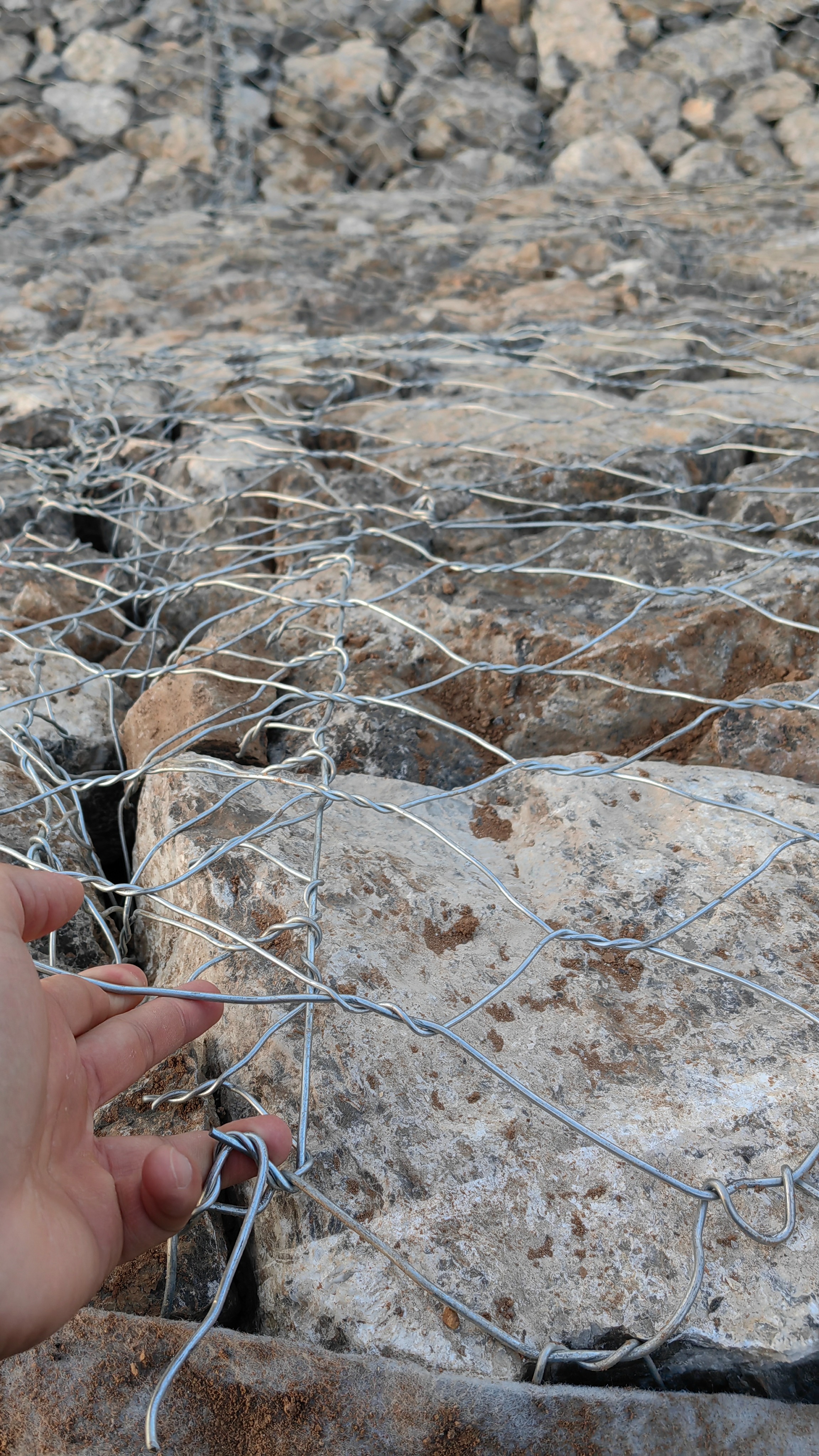

The core advantages of this slope protection cable net are as follows: first, the high tensile strength of more than 800MPa can effectively disperse the impact force of falling rocks and stabilize the slope soil, preventing landslides and rockfalls. Second, the galvanized coating on the surface improves the corrosion resistance, with a salt spray resistance of up to 1200 hours, which can be used stably in outdoor humid and rainy environments for a long time. In addition, the mesh size is large, which has good soil and stone retention performance, and can be installed quickly, reducing the construction cycle by 40% compared with traditional slope protection nets. At the same time, it has passed the GB/T 18226 national technical certification, which meets the domestic slope protection engineering standards.
Technical parameters of 304 stainless steel slope protection cable net: material is 304 stainless steel with zinc-galvanized coating, rope diameter optional range is 4mm, 5mm, 6mm; mesh size optional range is 150mm, 200mm, 250mm; tensile strength is not less than 800MPa; wind load resistance is not less than 150km/h; fire rating reaches Class A1; service life is 18 to 22 years under normal outdoor use; salt spray resistance test passes 1200 hours; installation uses anchor bolts and supporting steel beams to fix, and can be customized according to the slope angle and site size; temperature adaptation range is -40℃ to 120℃; unit weight is 2.5kg/㎡ to 4.3kg/㎡, which can be adjusted according to the rope diameter and mesh size; it has passed GB/T 18226 national technical certification.
This slope protection cable net is mainly applicable to mountain slope landslide prevention, highway and railway side slope support, river bank and lake shore reinforcement, open-pit mine slope protection and other scenarios. It can effectively prevent soil erosion, rockfalls and landslides, ensuring the safety of traffic routes and water conservancy projects. At the same time, it can also be used as a protective barrier for ecological restoration of mountainous areas, promoting the recovery of surface vegetation. In addition, it can be installed in combination with other slope protection materials such as geotextiles to improve the overall slope protection effect.
