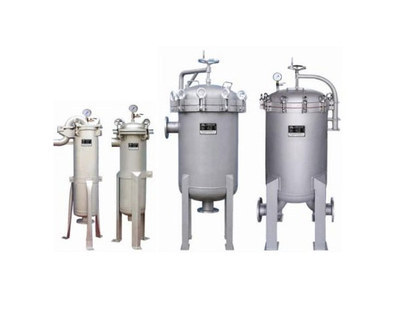

The most notable feature is its high filtration area per unit volume,enabling high flow with low pressure drop.Bag replacement is extremely quick and tool-free,minimizing downtime.Flow path design(side-in/side-out or top-in/bottom-out)ensures even flow distribution across the bag surface,preventing premature localized blinding.A differential pressure gauge can be fitted to monitor bag loading.It is cost-effective,using disposable bags that eliminate cleaning and cross-contamination risks.
Housings are typically manufactured to ASME BPE or DIN standards.Common configurations hold 1,2,4,6,8,12,or 24 bags.Connection sizes range from DN25 to DN200.Filtration ratings are wide,from 1 to 800 microns.Design ensures even flow distribution per bag,supported by an internal or external metal basket to prevent bursting under pressure.Maximum working pressure can exceed 1.0 MPa depending on housing design.
Primarily used to protect critical equipment such as heat exchangers,spray nozzles,pumps,and membrane systems.In paint and coating industries for filtering electrocoat paint and recirculating paints.In metalworking for coolant and rolling oil purification.In food&beverage for syrups,beverages,and process water.In chemical processing for solvent recovery and catalyst filtration.It serves as an essential"safety guard"in numerous processes.
