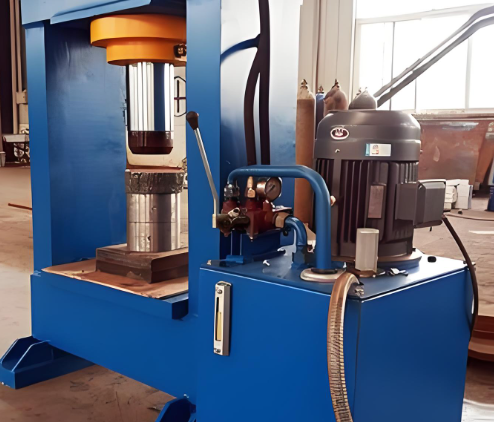

Equipped with a PLC touch screen control system, which can customize parameters such as stamping speed, pressure and stroke, and realize semi-automatic cycle operation, which can complete 0-30 stamping operations per minute, greatly improving production efficiency. The double-column steel frame is subjected to strict stress annealing treatment, with no deformation risk during long-term operation. Adopts a fast hydraulic circuit design, the no-load stroke speed can reach 100mm/s, and the working stroke speed can reach 20mm/s, improving the operation speed by 40% compared with traditional hydraulic presses. It is equipped with a fully closed protective cover, which effectively avoids workpiece splashing and hydraulic oil leakage, and meets CE safety standards. The touch screen can store 100 sets of operating programs, adapting to the mass production needs of different types of parts.
Rated pressure is 60 tons, workbench size is 1000mm×700mm, maximum stamping stroke is 250mm, no-load speed is 100mm/s, working speed is 20mm/s, stamping frequency is 0-30 times per minute, motor power is 11kW, net weight of the whole machine is 5800kg. The PLC touch screen has a resolution of 800×600, the protective cover size is 1100mm×800mm, the package adopts split industrial packaging, the whole machine has a 24-month warranty, and the hydraulic system has a 36-month warranty.
It is suitable for batch stamping and forming of hardware products, batch pressing and forming of auto parts, batch pressing of electronic accessories, and batch forming of daily necessities. It covers mass production scenarios in hardware, auto parts, electronics, daily necessities and other industries, and can greatly improve the production efficiency and production capacity of enterprises.
