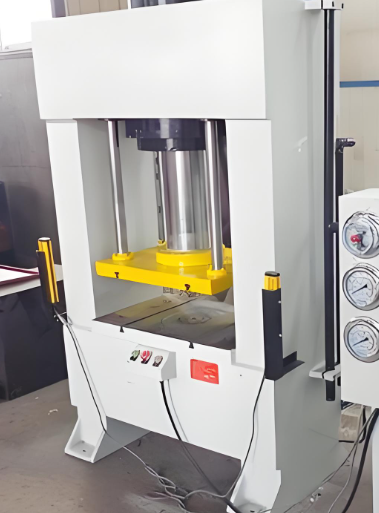

The core competitive advantage of this double column hydraulic press lies in its stable structure and intelligent control. The gantry double-column welded structure is treated with annealing to eliminate internal stress, ensuring no deformation during long-term heavy-duty use. The imported hydraulic seals and high-pressure oil cylinder ensure stable and reliable operation of the hydraulic system, without oil leakage during long-term use. The PLC touch screen can preset pressure, stroke and holding time, realizing automated stamping operations and improving production efficiency by 40% compared with manual operation. The photoelectric safety protection device can effectively prevent operators from entering the dangerous stamping area, reducing the risk of work accidents. It also adopts a closed-loop pressure control system, ensuring the accuracy of stamping pressure within ±1% error.
This double column industrial hydraulic press has the following detailed specifications: rated pressure of 50 tons, maximum stamping stroke of 300mm, workbench dimensions of 800mm in length × 600mm in width, adjustable workbench height of 0-150mm, overall dimensions of 1800×1200×2200mm, total weight of 850kg, hydraulic oil capacity of 25L, matching three-phase 380V/50Hz power supply, motor power of 4kW. The control mode supports PLC touch screen operation and manual backup operation, which meets the needs of different working scenarios. The safety configuration includes photoelectric protection device, emergency stop button, overload relief valve and over-temperature alarm, which fully protect the personal safety of operators. The body is made of Q235 carbon steel welded structure, which has high strength and impact resistance, and meets the needs of medium-sized heavy-duty processing. It has passed CE and ISO 9001 certifications, and meets international production standards.
This double column hydraulic press is widely used in medium-sized hardware processing factories, auto parts maintenance workshops, agricultural machinery manufacturing workshops and composite material processing plants. It can be used for stamping and forming of auto parts, straightening of thick metal plates, pressing and forming of composite materials, bearing pressing assembly of large parts and other processing needs. Compared with four-column hydraulic presses, it saves 30% of the occupied space, which is more suitable for medium-sized workshops with limited space. It can also be matched with a conveyor belt to realize automated production lines, improving production efficiency and reducing manual labor costs.
