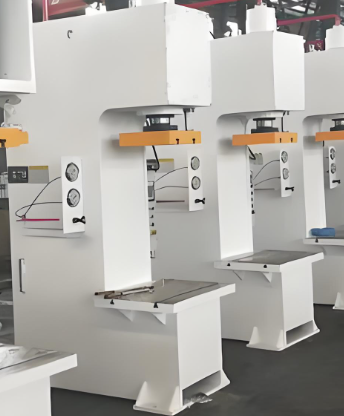

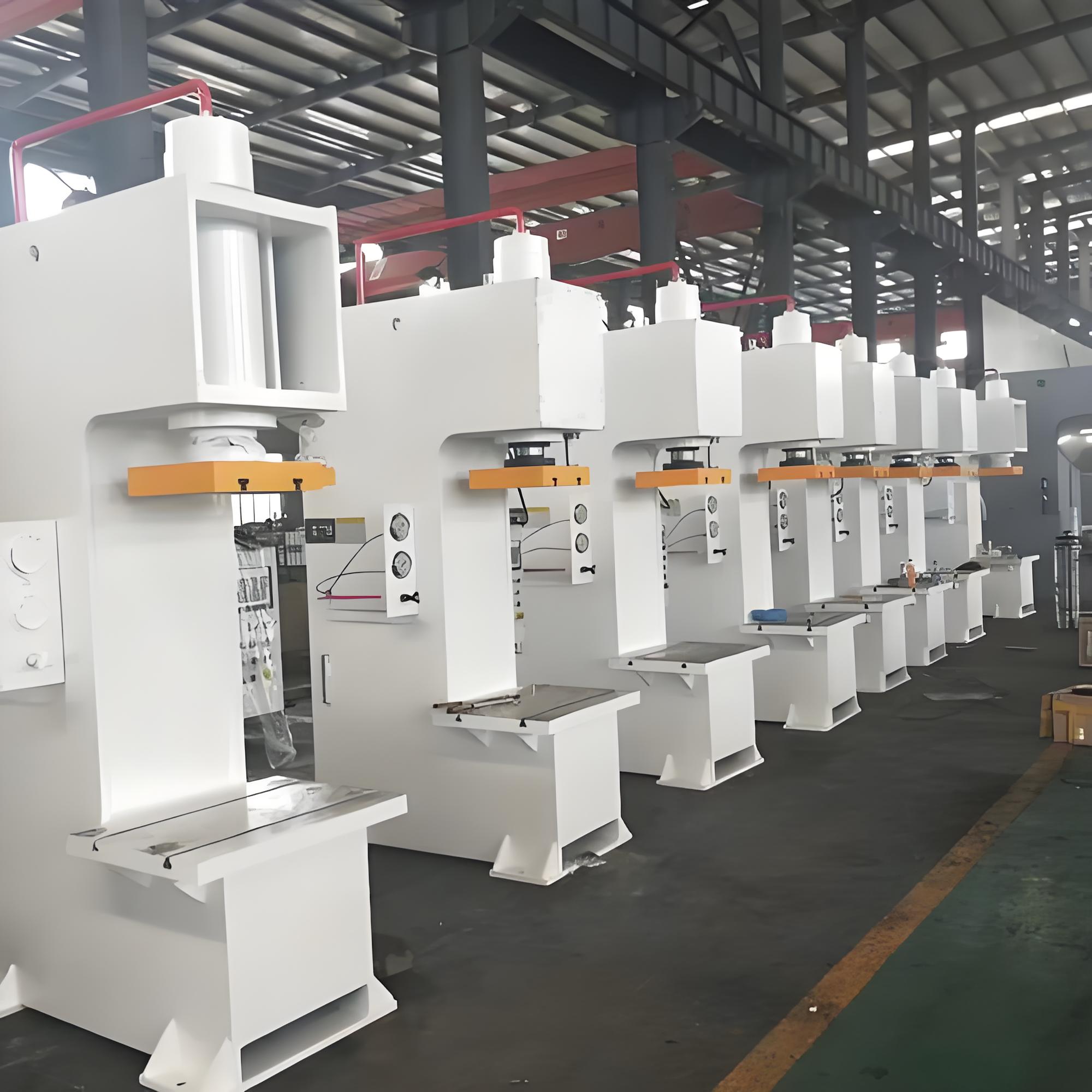

The open C-frame design breaks the limitation of top loading, allowing workers to access the workbench from the side, which is more convenient for placing and taking out large or irregular workpieces. The dual-mode operation supports electric drive for efficient mass processing and manual adjustment for fine-tuning, meeting the needs of different processing scenarios. The cast steel welded body has high structural strength and good stability, and the protective baffle can block hydraulic oil splashes and flying debris, ensuring operation safety.
The overall dimensions are 1200×800×1500 mm, with a net weight of 850 kg and gross weight of 920 kg. It uses a 2.2 kW three-phase asynchronous motor, with a working voltage of 220V 50Hz. The hydraulic oil uses ISO 46 anti-wear hydraulic oil, and the working oil temperature range is 20-60℃. The maximum adjustable pressure is 20000 kgf, and the stroke speed can be adjusted between 10-40 mm/s. The workbench is equipped with multiple fixed threaded holes for installing various auxiliary fixtures.
This vertical C-frame hydraulic press is widely used in shaft sleeve press-fitting, pipe bending and forming, hardware component correction, small mold stamping and maintenance store part processing. It can be used for press-fitting of motor shafts, bending of metal pipes, correction of deformed hardware parts and stamping of small molds, providing flexible and convenient processing solutions for side loading and processing scenarios.
