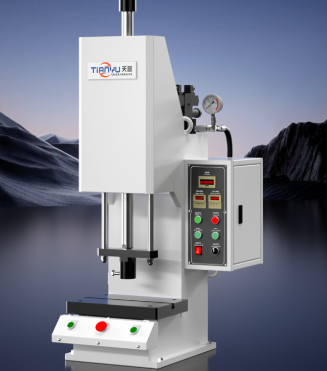

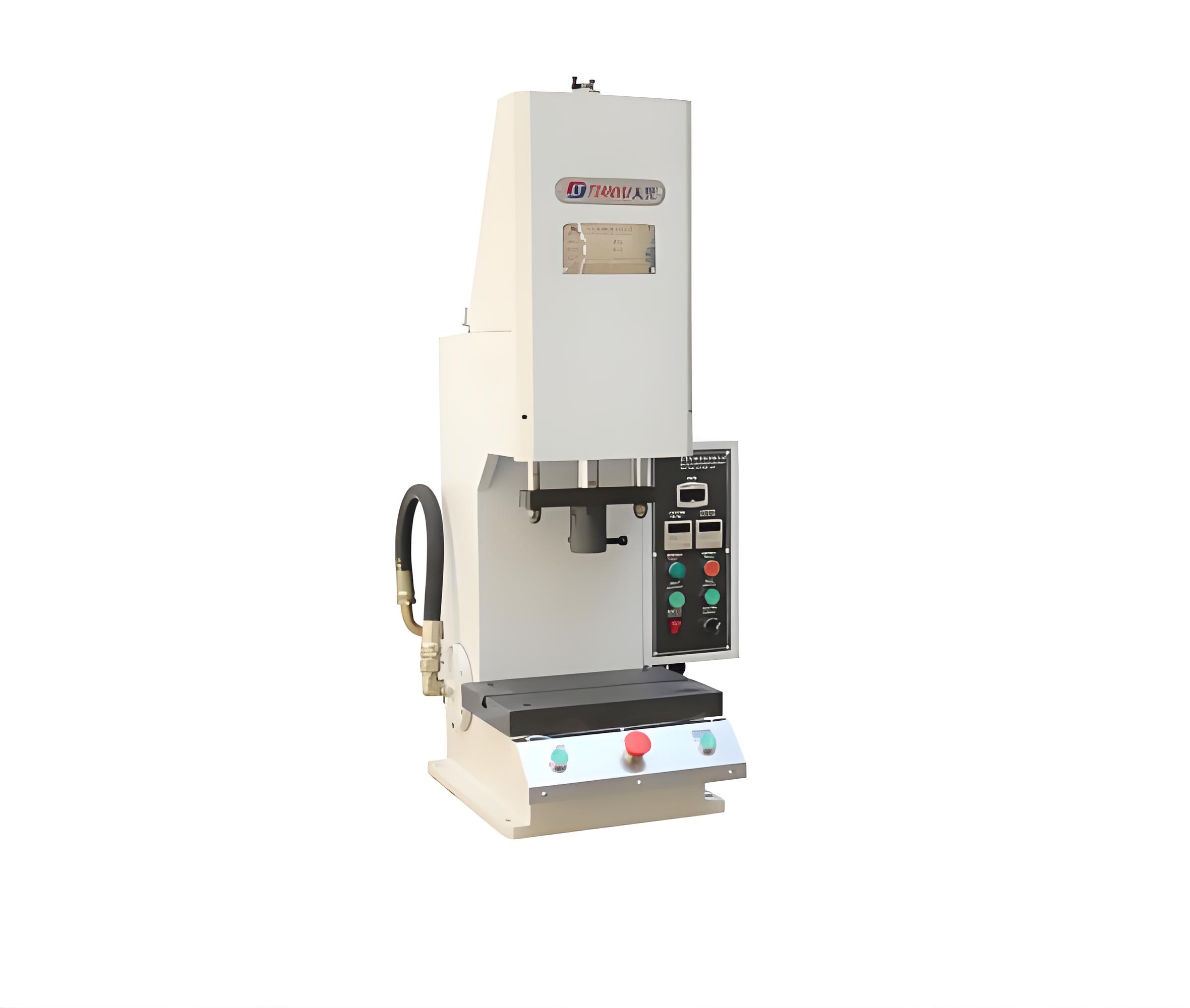

This mini hydraulic press adopts an integrally cast iron frame to ensure long-term structural stability, with 15% higher pressure transmission efficiency than similar products. It is equipped with dual-mode operation system, supporting electric foot pedal and manual operation to adapt to different operating habits. It is also configured with emergency stop button and protective baffle to avoid operational risks, with accuracy controlled within ±0.5% full scale to meet the precision requirements of small metal forming. No complex foundation installation is needed, only simple table fixation is required to put into use, greatly reducing the use threshold.
Rated pressure capacity is 12 tons, worktable size is 300mm in length × 250mm in width, column spacing is 280mm, body height is 650mm, total weight is 180kg, powered by 220V 50/60Hz single-phase power with 1.5KW motor power, using 46# anti-wear hydraulic oil, equipped with anti-slip worktable pad, gross weight per unit is 200kg with export wooden crate packaging, accuracy error ≤0.5%FS.
It is suitable for small parts stamping, riveting and bending operations in small metal processing factories, DIY handmade studios and auto repair shops, as well as wood panel pressing and bearing disassembly and assembly. It can be used for individual businesses, small workshops and metal processing teaching in student practical courses, and can efficiently complete small processing tasks with daily output within 50 pieces.
