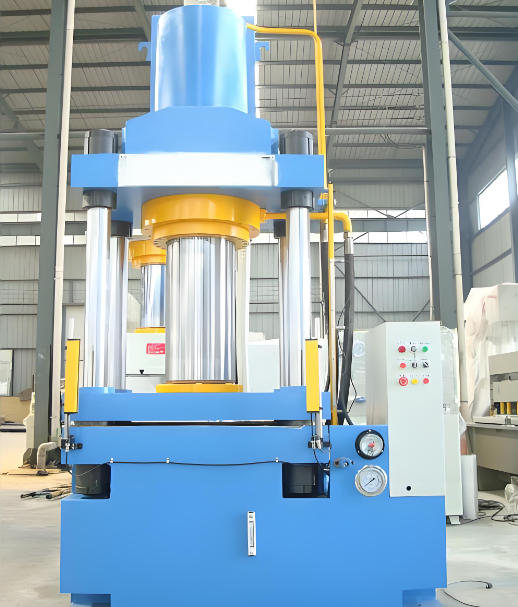

The core advantage of this four-column heavy-duty hydraulic press lies in its high load capacity and high precision. The four-column guide structure ensures that the stamping accuracy is within ±0.1mm, meeting the processing needs of high-precision large parts. It is equipped with a top-out cylinder with a rated pressure of 50 tons, which can automatically eject the processed parts without manual assistance, reducing labor intensity and improving production efficiency. The hydraulic system adopts imported high-pressure oil cylinders and sealed components, ensuring stable and reliable operation during long-term heavy-duty use. The DCS distributed control system can monitor pressure, temperature, flow and other parameters in real time, with fault self-diagnosis function, which greatly reduces the maintenance cost. Compared with traditional hydraulic presses, it saves 40% of energy consumption, and adopts environmentally friendly hydraulic oil, which meets EU REACH environmental protection standards.
This four-column heavy-duty hydraulic press has the following detailed specifications: rated pressure of 200 tons, maximum stamping stroke of 600mm, workbench dimensions of 1500mm in length × 1200mm in width, table spacing of 1800mm, top-out cylinder rated pressure of 50 tons, overall dimensions of 4500×3200×3800mm, total weight of 8500kg, hydraulic oil capacity of 120L, matching three-phase 380V/50Hz power supply, motor power of 15kW. The control mode supports DCS distributed control system and touch screen operation, which can realize fully automated production and preset multiple stamping processes. The safety configuration includes fully enclosed protective door, photoelectric protection device, emergency stop button, overload relief valve and over-temperature alarm, which fully protect the personal safety of operators. The body is made of cast steel welded structure, treated with annealing to eliminate internal stress, and has high strength and impact resistance. It has passed CE and ISO 9001 certifications, and meets international production standards.
This four-column heavy-duty hydraulic press is widely used in automotive manufacturing plants, aerospace parts processing plants, heavy hardware manufacturing plants and concrete product factories. It can be used for stamping and forming of auto body parts, forming of aerospace parts, straightening of thick metal plates, pressing and forming of concrete cushion blocks, forming of large composite materials and other processing needs. It can be matched with automated production lines to realize large-batch continuous production, meeting the production needs of large-scale industrial enterprises. It can also be used for special processing needs such as bending, pressing and forming of super-large parts, providing strong support for heavy-duty industrial processing.
