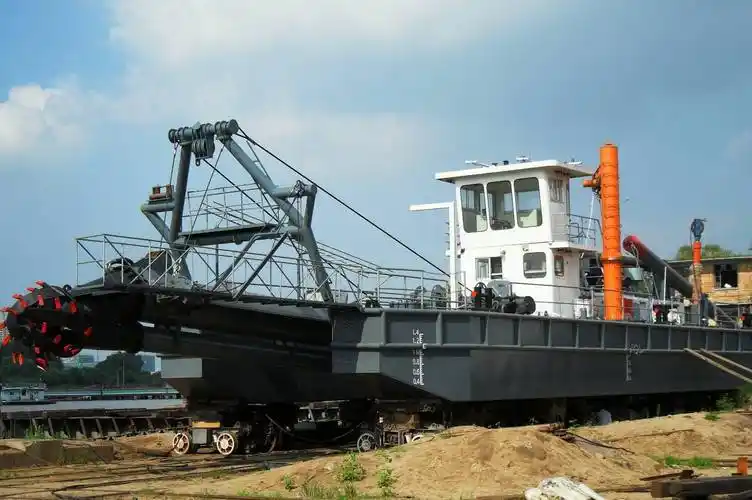

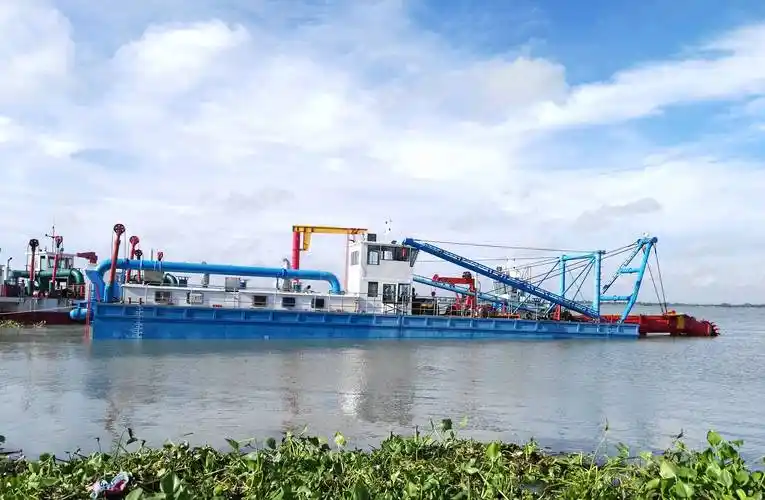

The modular dredging system features a quick-assembly design that can be fully assembled within 8 hours on-site, reducing construction preparation time by 70% compared to conventional large dredgers. All core components are designed to fit standard 40-foot shipping containers, enabling low-cost long-distance transportation via sea, rail or road. The system supports interchangeable dredge pumps ranging from 10 to 16 inches, allowing it to adapt to different sediment types and construction needs. Its IoT remote monitoring system enables real-time tracking of equipment status, dredging progress and fuel consumption, facilitating remote management and maintenance.
Single module dimensions: 12m (length) × 2.4m (width) × 2.6m (height); Maximum dredging depth: 25 meters; Rated dredging capacity: 600 cubic meters per hour; Main diesel engine power: 450 kW; Total operating weight: 120 tons; Fuel tank total volume: 10000 liters; Interchangeable pump diameter range: 10-16 inches; Maximum sediment discharge distance: 600 meters; Control mode: IoT remote monitoring + PLC automatic control; Hull thickness: 18mm; Assembly time: ≤8 hours per set
This modular dredging system is applicable to large-scale port deepening, offshore reclamation projects, inland river regulation, coastal deep-sea dredging and large-scale sediment removal projects. It is ideal for large engineering contractors, dredging rental companies and international waterway construction teams. Its scalable and transportable design makes it perfect for multi-area mobile construction projects, providing efficient and cost-effective dredging solutions for large-scale water area development and maintenance.
