Made of 6063-T5 aluminum alloy substrate, the anodized film thickness can reach 15-25μm, featuring exceptional weather resistance and passing 1000 hours of salt spray test without corrosion. The auxiliary fluorocarbon spraying process ensures high color fidelity and no long-term fading. Its lightweight design cuts the overall building load by 70% compared with traditional stone curtain walls. It supports custom shapes and colors to meet personalized architectural design needs, and meets EU ROHS environmental standards without releasing toxic substances.
Alloy grade 6063-T5, thickness range 1.5mm-6.0mm, standard width 1220mm-2000mm, standard length 2440mm-6000mm, anodized film thickness 15-25μm, tensile strength ≥200MPa, yield strength ≥160MPa, salt spray resistance ≥1000 hours, fire rating reaches GB8624 B1 level, panel flatness ≤0.1mm/m, surface gloss can be adjusted from 30% to 80% as required, with customizable edge treatment options.

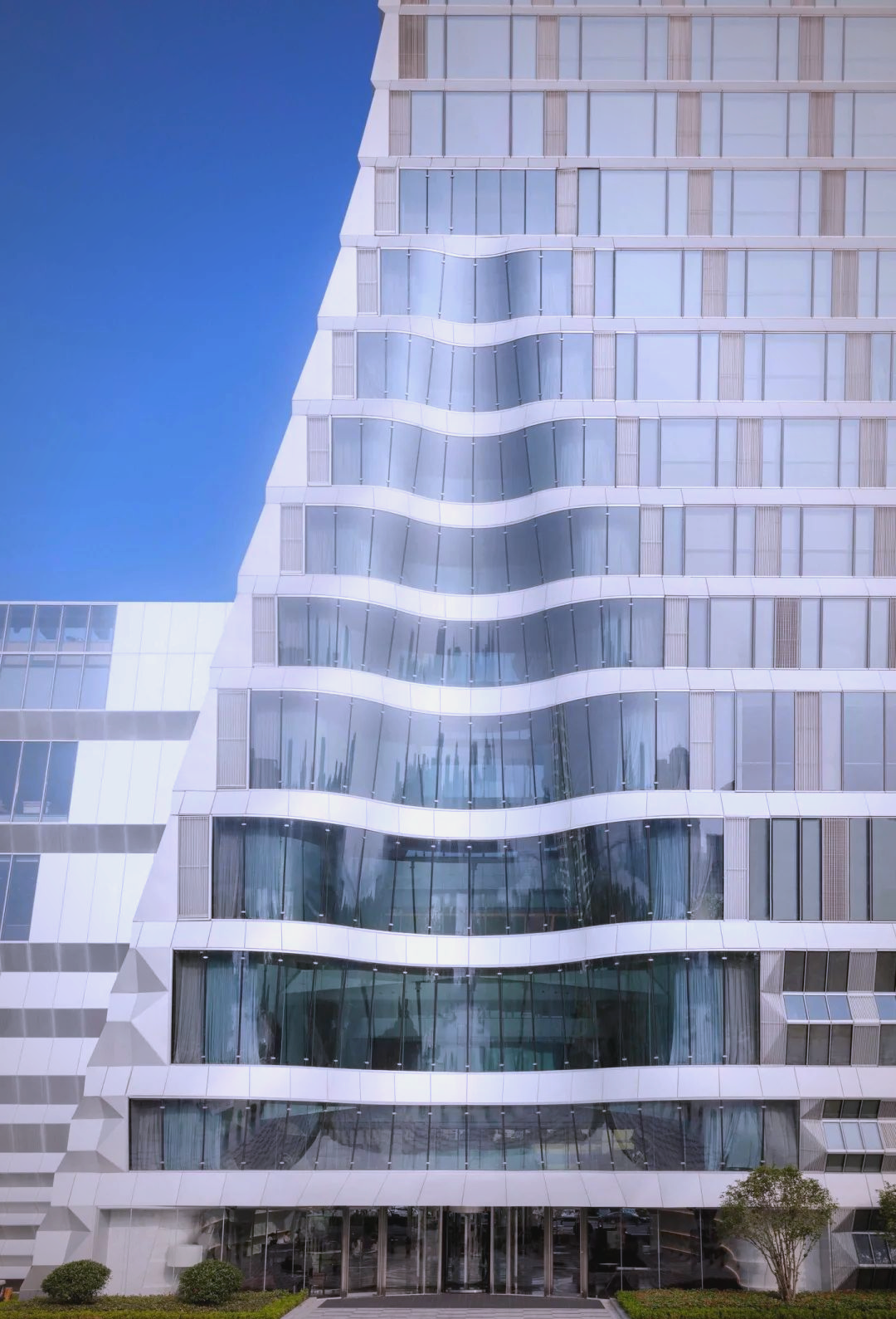

It is suitable for exterior wall curtain walls, indoor ceilings, elevator car decorations of commercial office buildings, high-end hotels, high-speed rail stations, convention and exhibition centers and other large buildings, and can also be used for outdoor signboards, daylighting roofs and outdoor facade renovation scenarios, meeting the requirements of modern green buildings for lightweight and environmental protection.
