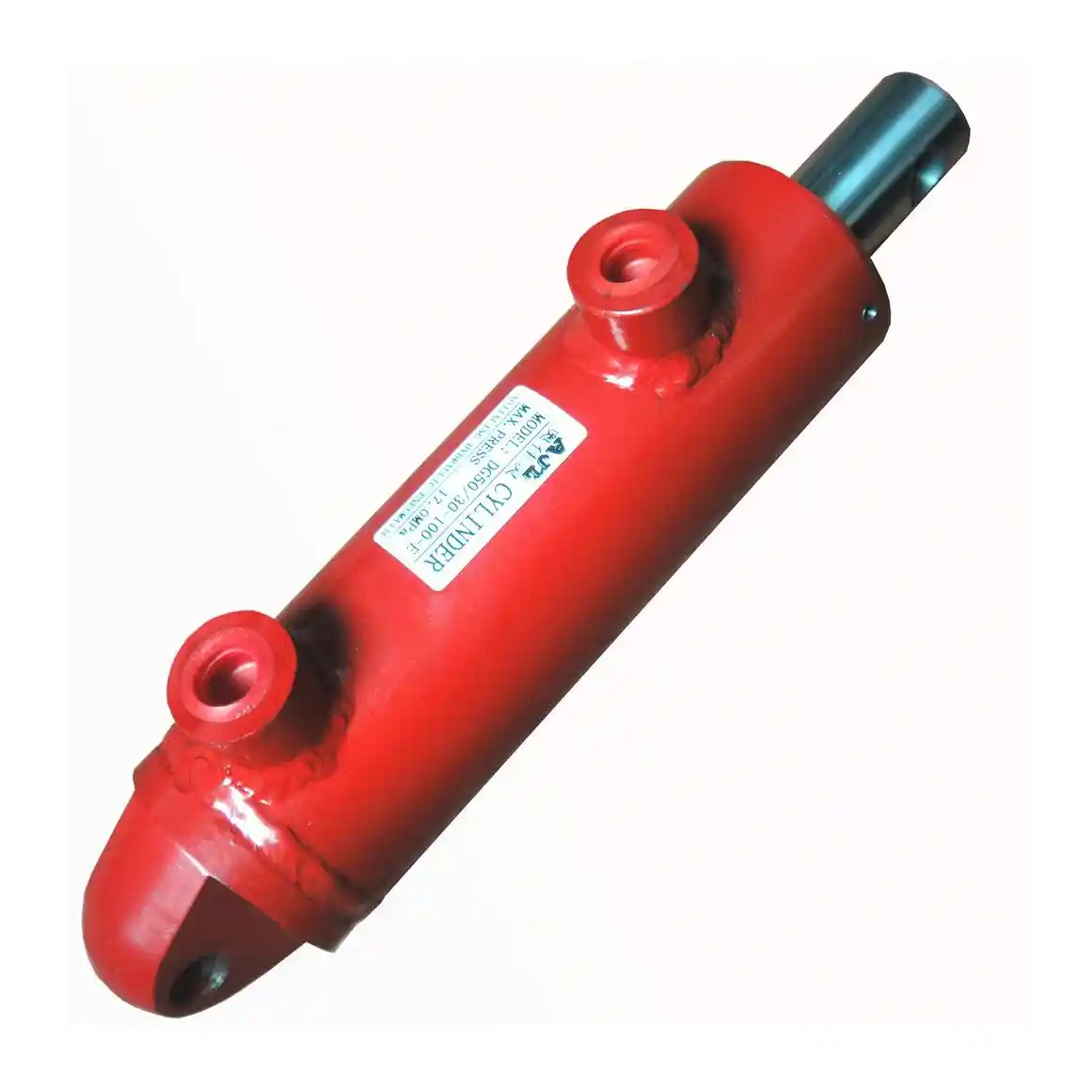

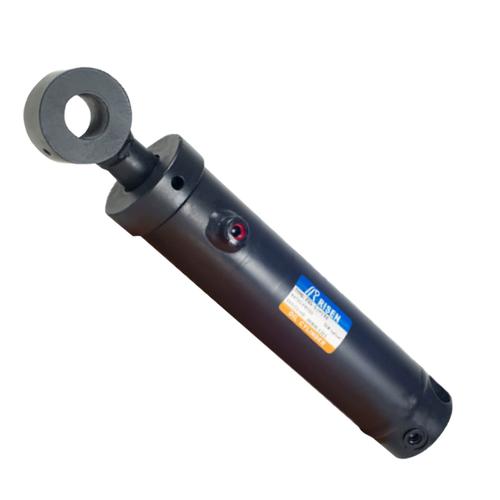

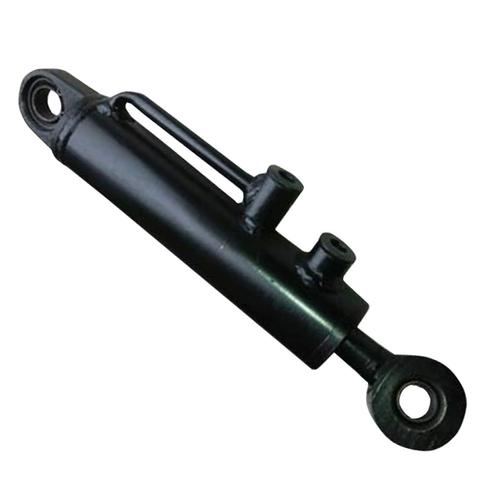

Product Features:
The core features of this product are its superior durability and load-bearing capacity. It uses high-tensile-strength cylinder barrel material and surface-hardened piston rods to effectively resist mechanical damage and corrosion. Internally, it is equipped with a combination of high-performance seals from imported or equivalent brands, significantly reducing the risk of internal leakage under high pressure. The cushioning design smooths out impact at the stroke ends, protecting the equipment. Furthermore, various mounting styles(such as clevis, flange, foot-mounted)provide great installation flexibility, and options like stroke length, port position, and sensor mounting can be customized as needed for strong adaptability.
Product Specifications:
The standard working pressure range is 16-25 MPa, with a maximum of 31.5 MPa. Bore sizes range from 40mm to 320mm,piston rod diameters cover 22mm to 220mm,and strokes can be customized as required, up to several meters. The piston rod surface is typically hard chrome plated to a minimum thickness of 0.04mm,providing excellent wear and corrosion resistance. All critical threads conform to ISO metric standards and are precisely machined to ensure connection strength. An optional built-in magnetic ring allows for the installation of position sensors to enable stroke monitoring.
Product Applications:
Primarily used in fields with extremely high demands for equipment force and stability. In the metallurgical industry, they are used for mill screw-downs, ladle lifting, and blast furnace top equipment. In mining machinery, they drive excavator arms and apply pressure in crushers. In pressure forming equipment, they serve as the main pressure cylinder providing thousands of tons of forming force. They are also commonly found in various ship deck machinery,large injection molding machines,and hydraulic gate hoists,serving as an indispensable core actuator component for heavy industrial equipment.
