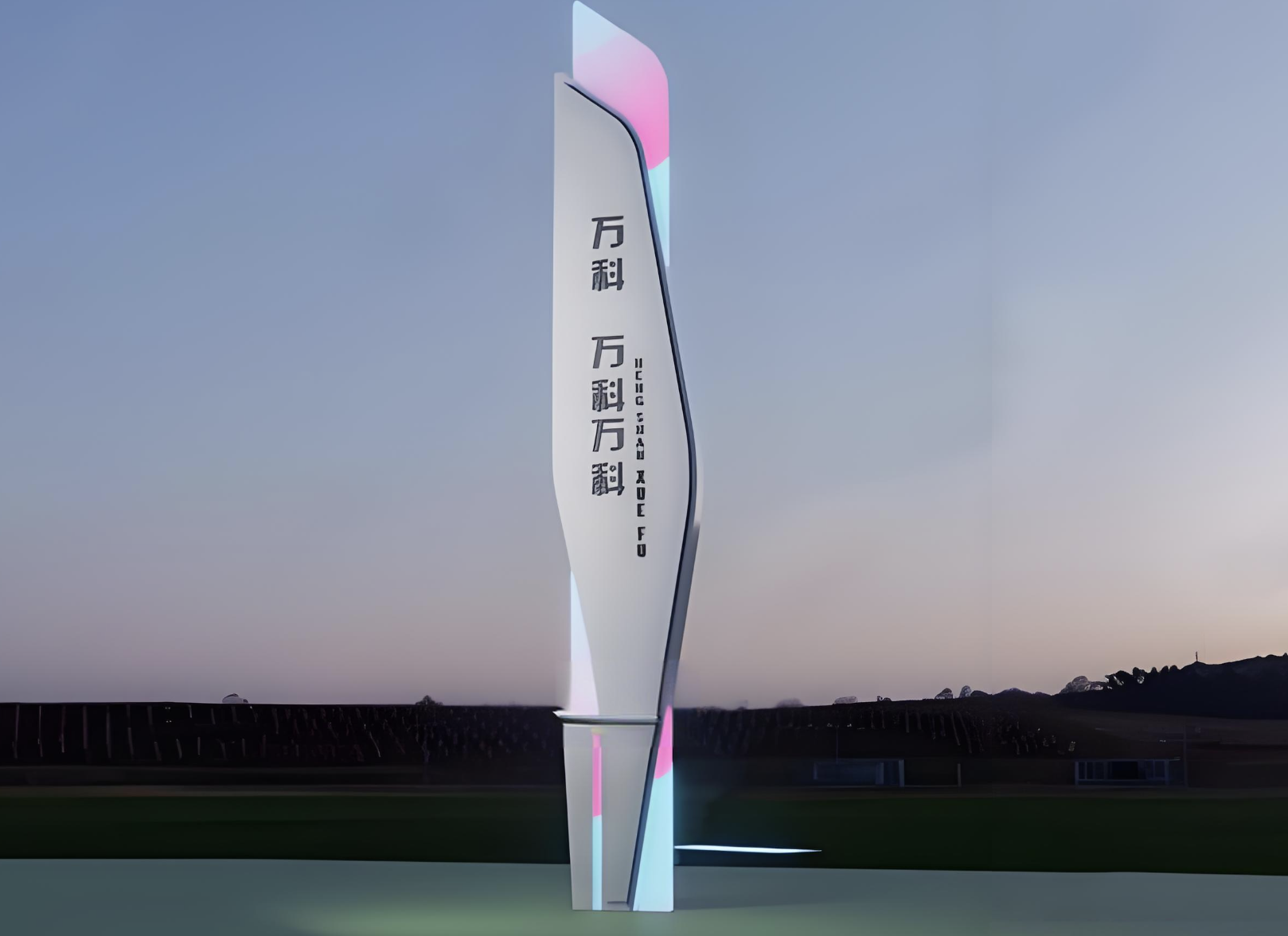

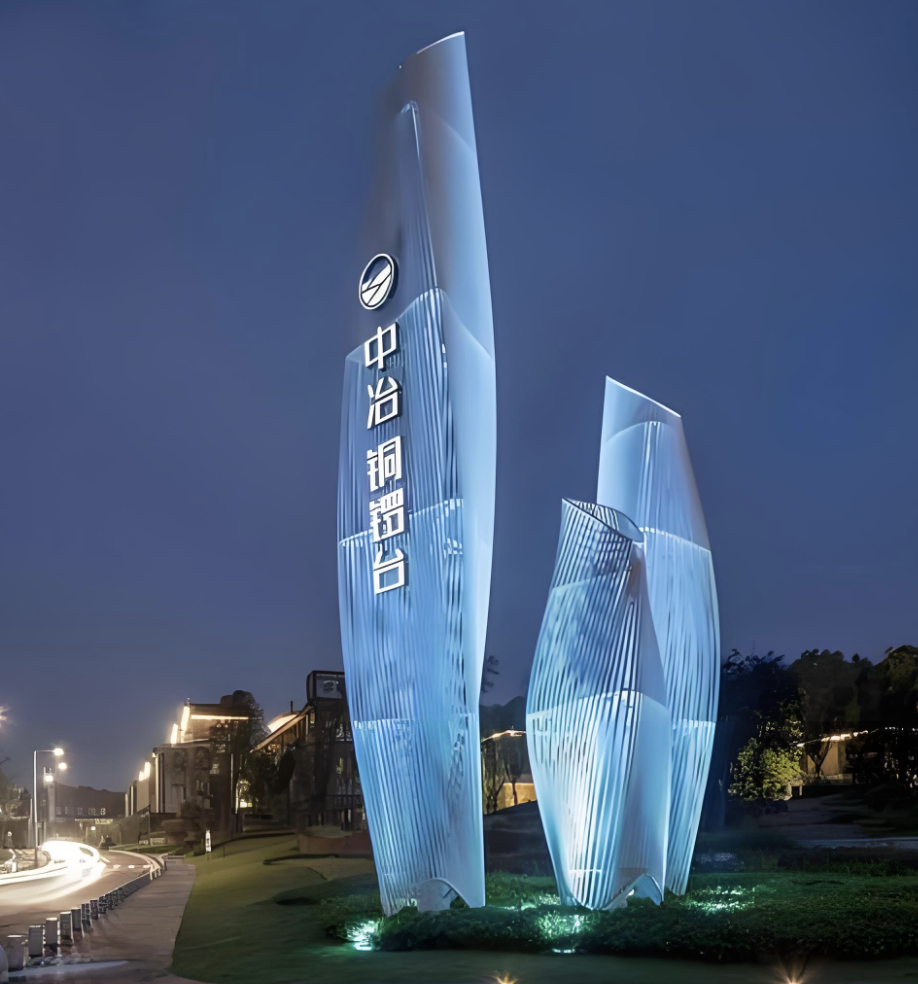

The core advantages lie in the super-high-rise design and extreme weather resistance, as well as intelligent functions. The 316L stainless steel material is treated with mirror brushing and anti-fingerprint treatment, presenting a high-end and atmospheric visual texture, and has excellent salt-fog resistance and acid rain resistance, with a service life of more than 25 years, far exceeding that of ordinary stainless steel signs. The super-high-rise design (12-15m) ensures clear recognition within a 3km range, becoming the core landmark of the city. The full-angle glow design (front + side + back) makes the sign clearly visible 360° without dead angles at night, solving the problem of insufficient brightness in some areas of traditional super-high-rise signs at night. The smart brightness adjustment function can automatically adjust the brightness according to the ambient light, saving energy and improving nighttime visual comfort. The remote monitoring function can monitor the light operation status in real time, facilitating later maintenance. The level 14 wind resistance ensures stable operation in typhoons and strong wind weather, providing a long-term reliable signage solution for municipal projects.
The height can be selected from 12m, 13m, 14m, and 15m. The main frame is welded with 150mm*150mm*6mm 316L stainless steel square tubes, and the panel is a 10mm thick tempered glass (light transmittance ≥90%), with surface mirror brushing treatment + anti-fingerprint coating. The power supply mode is AC380V municipal grid access, equipped with a dedicated distribution box and overload protection system, and the light source uses high-power SMD5050 LED beads with a luminous brightness of ≥1500lm/㎡, and the color temperature can be selected from 4000K neutral light or 6000K cold white light. The overall weight of the product is about 1200kg for the 12m model and about 1500kg for the 15m model. The wind resistance level is tested to reach level 14, which can withstand strong winds with a wind speed of ≥41.5m/s. The installation base is a 2.0m*2.0m*0.5m concrete pre-embedding, and it is hoisted on site with a crane of 50 tons or more, taking about 8-10 hours to install. The smart system supports remote monitoring of the light status, brightness adjustment and switch time through mobile APP or computer.
It is widely applicable to both sides of urban main roads, core areas of municipal squares, entrances of urban new areas, core zones of national-level development zones, and areas around high-speed railway stations, serving as the core urban landmark sign or core node of the regional wayfinding system. The target customers include municipal engineering bureaus, urban planning departments, national-level development zone management committees, etc. Typical usage scenarios include: serving as the core sign for urban regional division beside urban main roads, improving the city image and recognition in the core area of municipal squares, guiding vehicle and pedestrian flow at the entrance of urban new areas, displaying the brand image of the development zone in the core zone of national-level development zones, and serving as the city's portal sign around high-speed railway stations to improve the first impression of the city.
