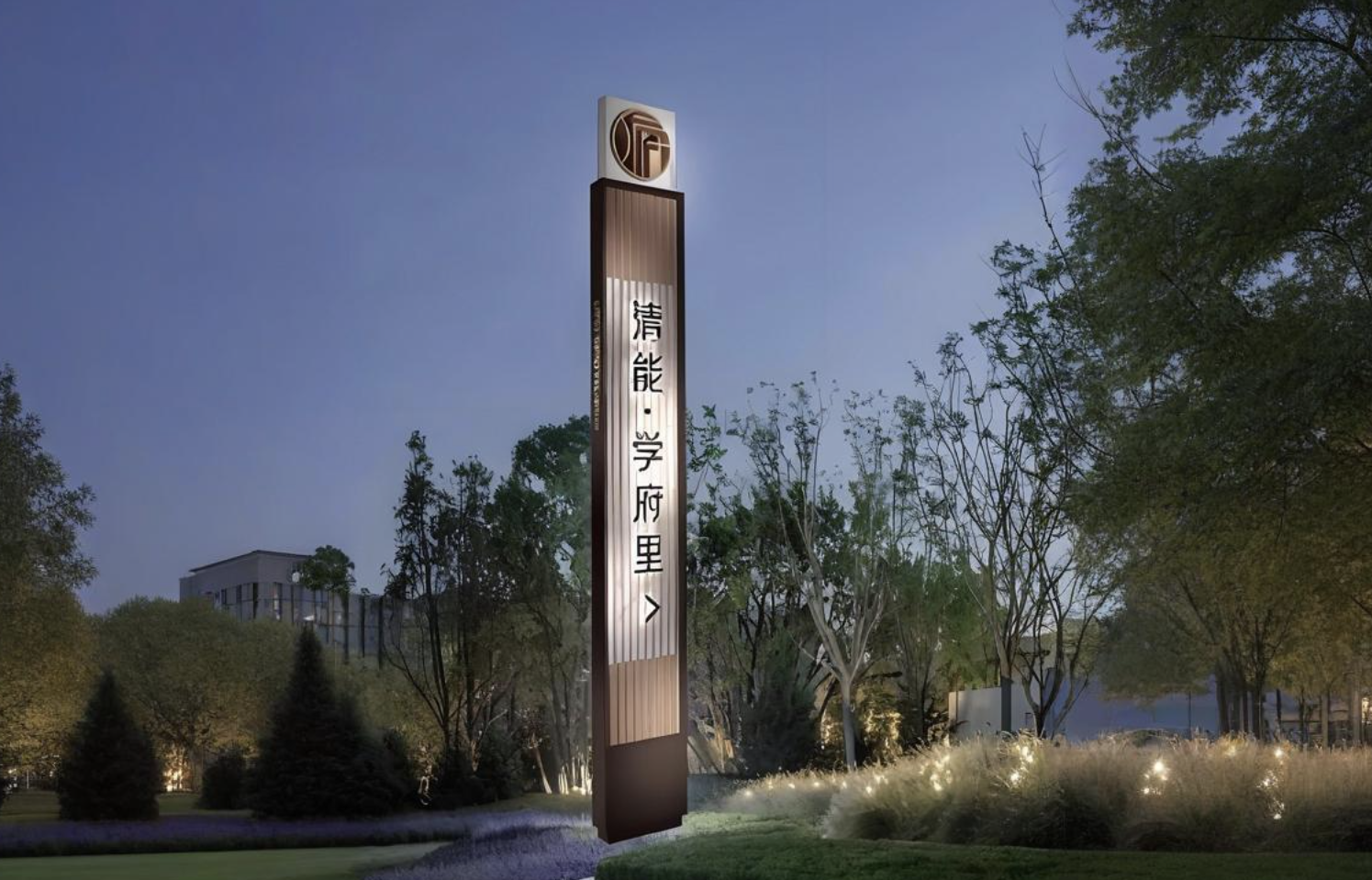

The core advantage lies in the modular assembly design. Compared with traditional welded landmark signs, the installation period is shortened by 60%, and the panels can be replaced as needed, reducing maintenance costs by 40% in the later stage. The solar power supply system is equipped with a 200W monocrystalline solar panel and a 120Ah large-capacity lithium battery, eliminating the need for external power wiring. The dual intelligent switches of light control and time control ensure automatic lighting at night and efficient energy storage during the day, fully adapting to outdoor scenarios without power access. The modern minimalist linear design combined with front + side dual glow effect presents a clean and neat visual texture during the day, creating a uniform and soft lighting atmosphere at night, solving the problem of insufficient nighttime recognition of traditional signs. In addition, the 6061-T6 aluminum alloy material is sprayed with fluorocarbon paint, which is salt-fog resistant and UV resistant, with a service life of more than 15 years, far exceeding that of ordinary carbon steel signs, providing customers with a long-term stable signage solution.
The height can be selected from 5m, 6m, 7m, and 8m. The overall frame is spliced with 60mm*60mm*3mm aluminum alloy square tubes, and the panel is a 3mm thick aluminum alloy single plate, with a fluorocarbon paint coating thickness of ≥60μm. The solar system is equipped with a 200W high-efficiency monocrystalline solar panel with a conversion efficiency of ≥23%, paired with a 120Ah lithium iron phosphate battery, which can provide continuous lighting for 72 hours on rainy days. The light source uses SMD3030 LED beads with a luminous brightness of ≥1200lm/㎡, and the color temperature can be selected from 3000K warm white light or 6000K cold white light. The overall weight of the product is about 280kg for the 5m model and about 450kg for the 8m model. The wind resistance level is tested to reach level 12, which can withstand strong winds with a wind speed of ≥32.7m/s. The installation base is a 1.2m*1.2m*0.3m concrete pre-embedding, and it is fixed to the main body of the sign with M20 bolts on site, taking only 2-3 hours to assemble.
It is widely applicable to modern industrial parks, commercial complexes, science and technology parks, urban central business districts and other scenarios, serving as the core entrance sign or regional wayfinding benchmark. The target customers include real estate developers, park operation management companies, commercial real estate operators, etc. Typical usage scenarios include: displaying the park name and image at the entrance of industrial parks, guiding passenger flow and enhancing brand recognition at the main entrance of commercial plazas, strengthening the sense of technology and modernity of enterprises in the core area of science and technology parks, and serving as a regional landmark sign beside the main road of urban new areas to help visitors quickly locate the venue while improving the visual grade of the overall environment.
