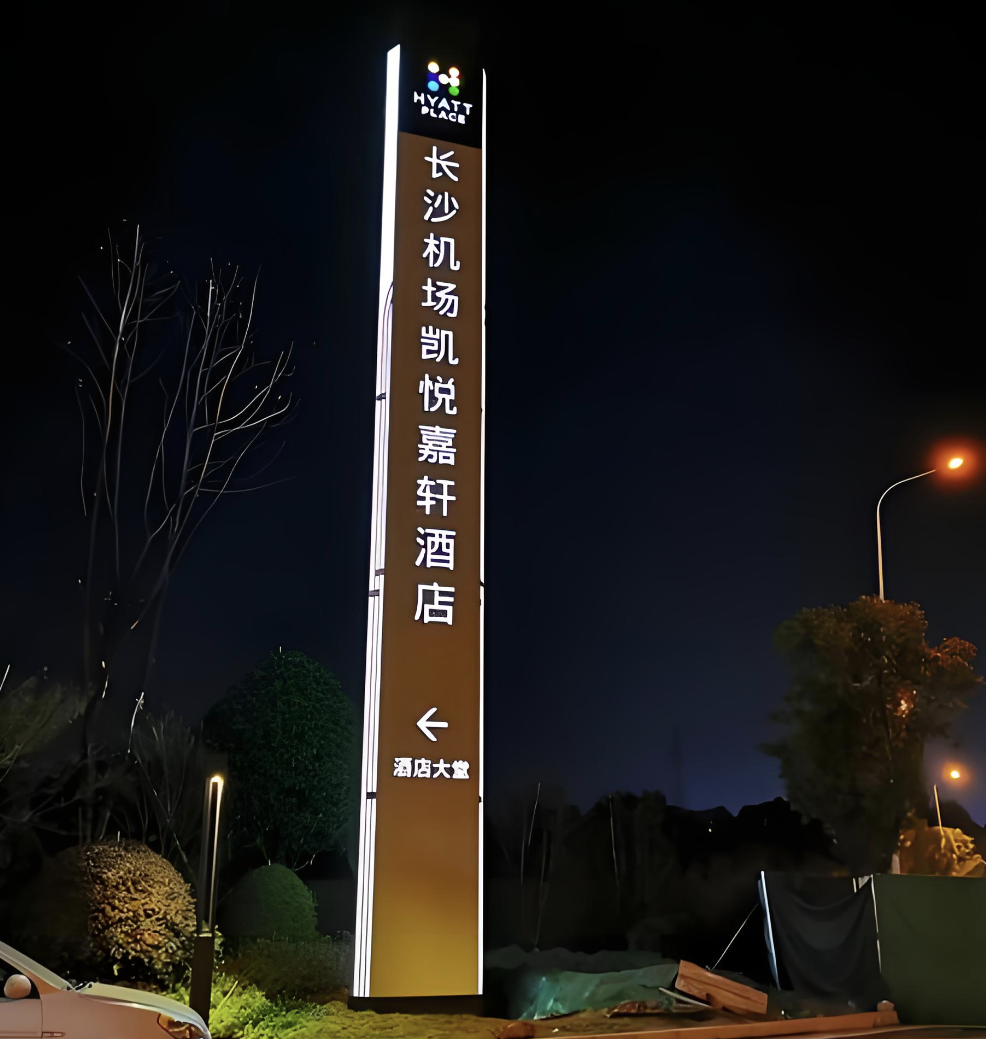

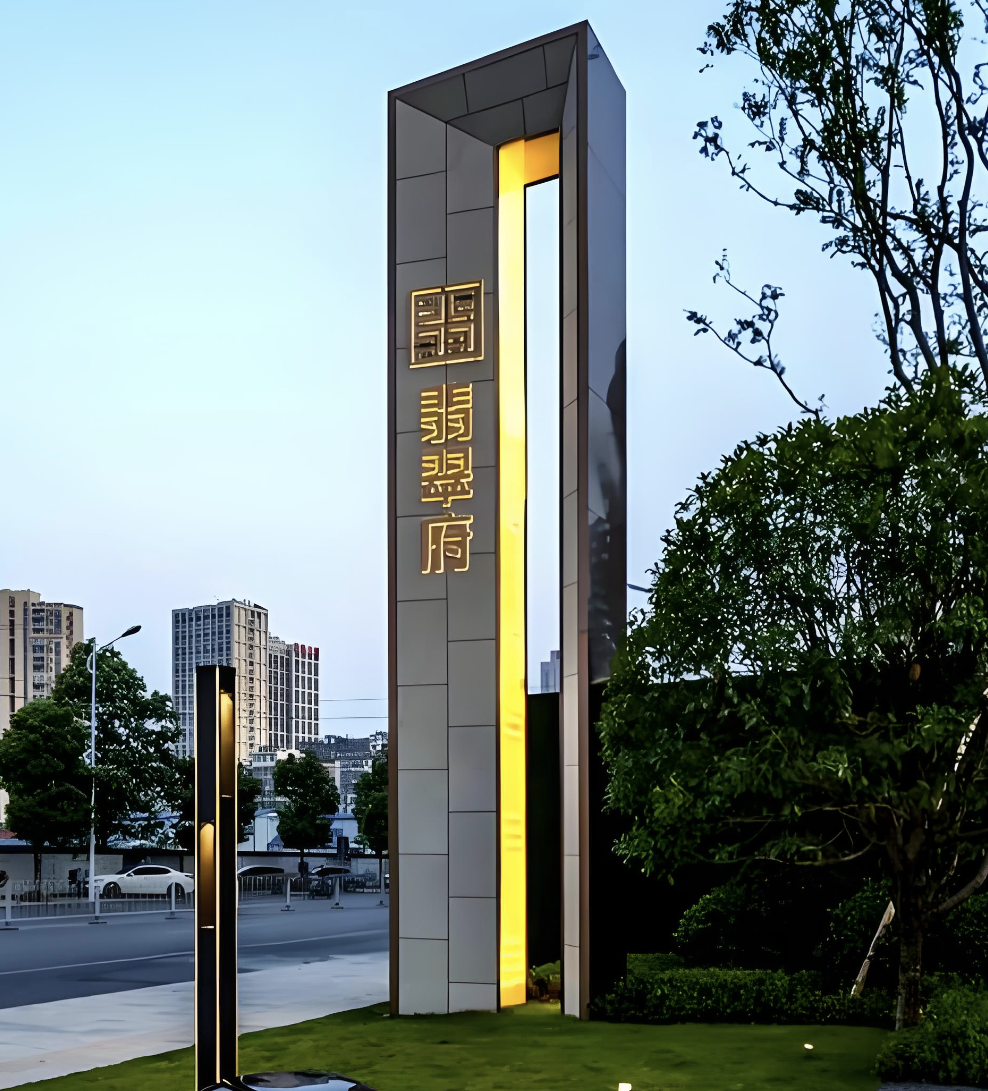

The 304 stainless steel construction provides excellent corrosion resistance, with a 2mm thick sheet and reinforced frame ensuring structural integrity for 22+ years. The edge-lit LED system uses high-power LEDs installed along the panel's edges, creating a uniform, bright illumination that spreads across the entire surface without hotspots. The anti-glare diffuser panel reduces light reflection and glare, making the sign comfortable to view during the day and night, which is critical for busy urban areas and transportation hubs. The brushed stainless steel surface combined with fluorocarbon coating adds a modern, industrial finish that resists scratches and fading, maintaining its appearance even in high-traffic environments. The sign has a wind resistance rating of 130 km/h, thanks to its reinforced frame and 1.5-meter deep concrete base, ensuring stability even in strong winds. The visibility range of 500 meters makes it ideal for highways, airport entrances, and large parking lots. Additionally, the sign can be customized with different text sizes, colors, and shapes to meet specific navigation needs, and the anti-glare settings can be adjusted based on the surrounding environment.
The sign has an overall height of 9 meters, with a 7-meter vertical panel and a 2-meter decorative top structure. The main panel is constructed from 2mm thick 304 stainless steel sheets, while the frame uses 60x60mm stainless steel square tubes for added structural support. The edge-lit system features 5050 SMD LEDs with a color temperature of 5000K, providing a brightness of 1500 lumens per square meter. The anti-glare diffuser panel is made from 8mm thick frosted acrylic, reducing glare by 40% compared to standard panels. The surface finish includes a 2-stage brushed process followed by a 2-layer fluorocarbon coating, ensuring a smooth, non-reflective surface with excellent UV resistance. The base is a 1.5x1.5x1 meter reinforced concrete foundation, anchored with 6 M24 expansion bolts for secure installation. The sign has a wind resistance rating of 130 km/h, tested in accordance with ASCE 7-16 standards. The internal wiring uses fire-resistant silicone cables, and the control system includes a dimming feature for adjusting brightness based on ambient light levels. The total weight of the sign is approximately 1500 kg, requiring professional installation with a heavy-duty crane.
This high-visibility landmark sign is ideal for busy urban areas, where it provides clear navigation for drivers and pedestrians, reducing traffic congestion and improving safety. Hospitals and emergency centers can use it to guide patients and visitors to the entrance quickly, even during peak hours. Schools and university campuses benefit from its anti-glare feature, ensuring the sign does not distract students or drivers in the surrounding area. Transportation hubs such as airports, train stations, and bus terminals can install this sign to guide passengers to the correct entrance or parking area, enhancing the overall travel experience. Highways and expressway entrances use this sign to provide clear direction for drivers, reducing the risk of accidents. Large shopping malls and parking lots can use it to mark entrances and exits, helping customers find their way easily. Additionally, it is suitable for industrial parks with heavy truck traffic, where visibility from a distance is critical for safe navigation.
