This corner guard features a steel core reinforced high-strength rubber structure, which can withstand impacts from 15-ton heavy forklifts without permanent deformation, providing 3 times longer service life than ordinary rubber corner guards. The high-intensity prismatic HIP reflective film has a reverse reflection coefficient of ≥600cd·lx⁻¹·m⁻², ensuring clear visibility in dimly lit warehouses and night shift operations, even from a distance of 80 meters. Its embedded base bolt fixing design ensures that it remains firmly in place during severe collisions, avoiding displacement or detachment that could cause secondary accidents. It holds OSHA and ISO 9001 certifications, confirming compliance with industrial workplace safety standards, and resolves the pain points of warehouse managers facing frequent rack pillar damage and production downtime caused by vehicle collisions.
This heavy-duty corner guard has an overall height of 1600mm, width of 180mm, and thickness of 35mm, with a total weight of 12kg, ensuring stability and resistance to displacement. The high-strength rubber body has a Shore hardness of 75±5, with a built-in 3mm-thick steel core for enhanced load resistance. The high-intensity prismatic HIP reflective film features two 65mm-wide orange strips, which are highly visible against the black rubber body and resistant to fading, peeling, and oil stains for ≥4 years. It uses an embedded base with 6 bolt holes (13mm diameter) for fixing, spaced 260mm apart, suitable for M10 anchor bolts. The temperature resistance range is -35℃ to 75℃, allowing stable use in both cold storage and high-temperature factory environments. Its heavy load resistance reaches ≤15 tons, capable of withstanding collisions from heavy forklifts and industrial trucks. The product comes with a 2-year warranty, and its expected service life is over 10 years under normal industrial use.

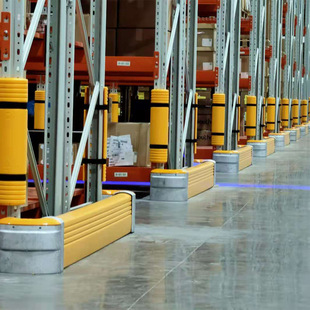

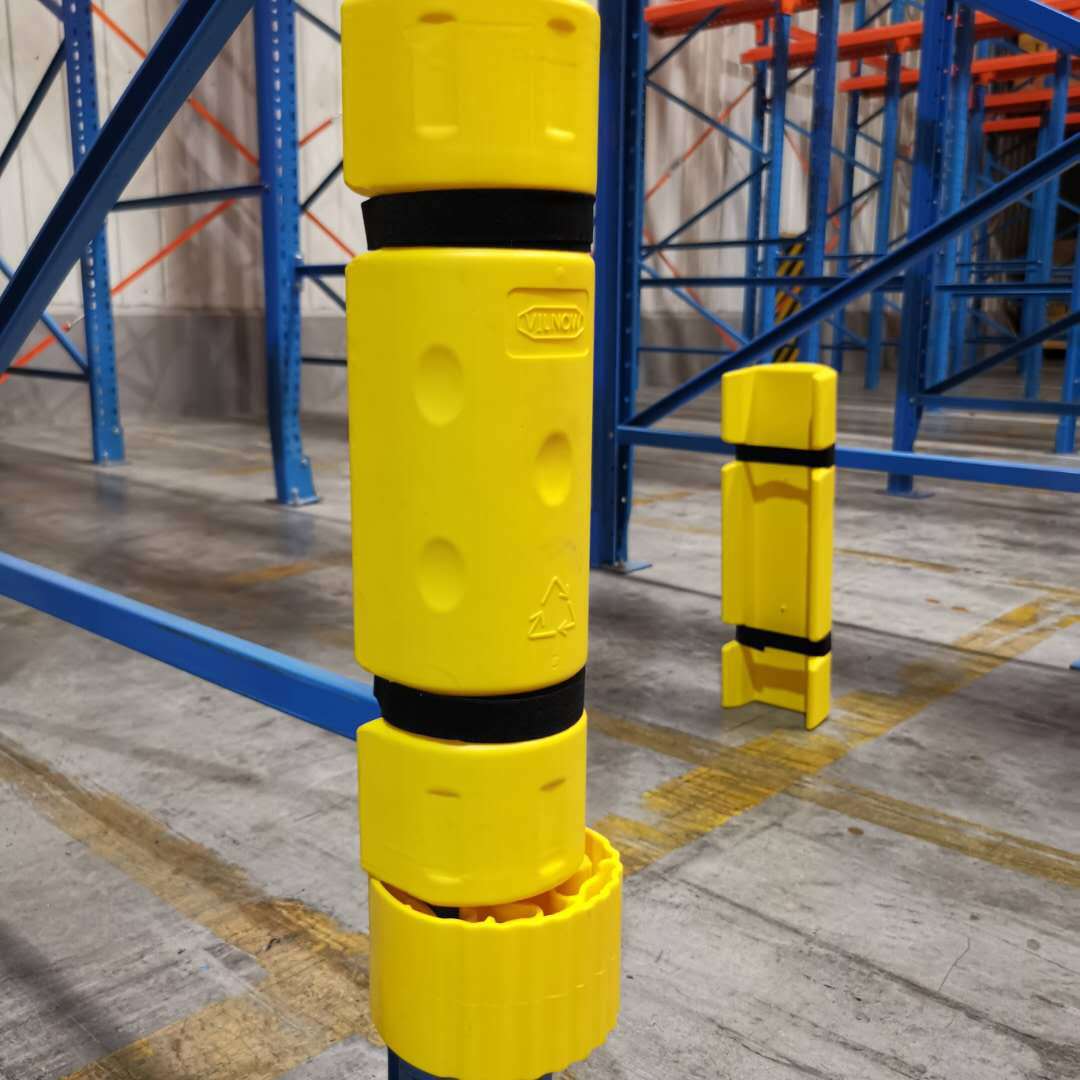

This road safety corner guard is mainly applicable to rack pillars, wall corners, and loading dock edges in industrial warehouses, logistics distribution centers, and manufacturing plants, where heavy forklifts and industrial vehicles operate frequently. It is also ideal for cold storage facilities, port container yards, and construction material warehouses, where vehicles carry heavy loads and operate in dimly lit environments. Additionally, it can be installed in large retail distribution centers' sorting areas and freight terminal access roads to protect sorting equipment and facility structures. Its robust construction and high visibility effectively reduce the risk of equipment and facility damage, minimize production downtime, and improve workplace safety compliance. It is a must-have safety device for industrial operations aiming to enhance efficiency and reduce operational risks.
