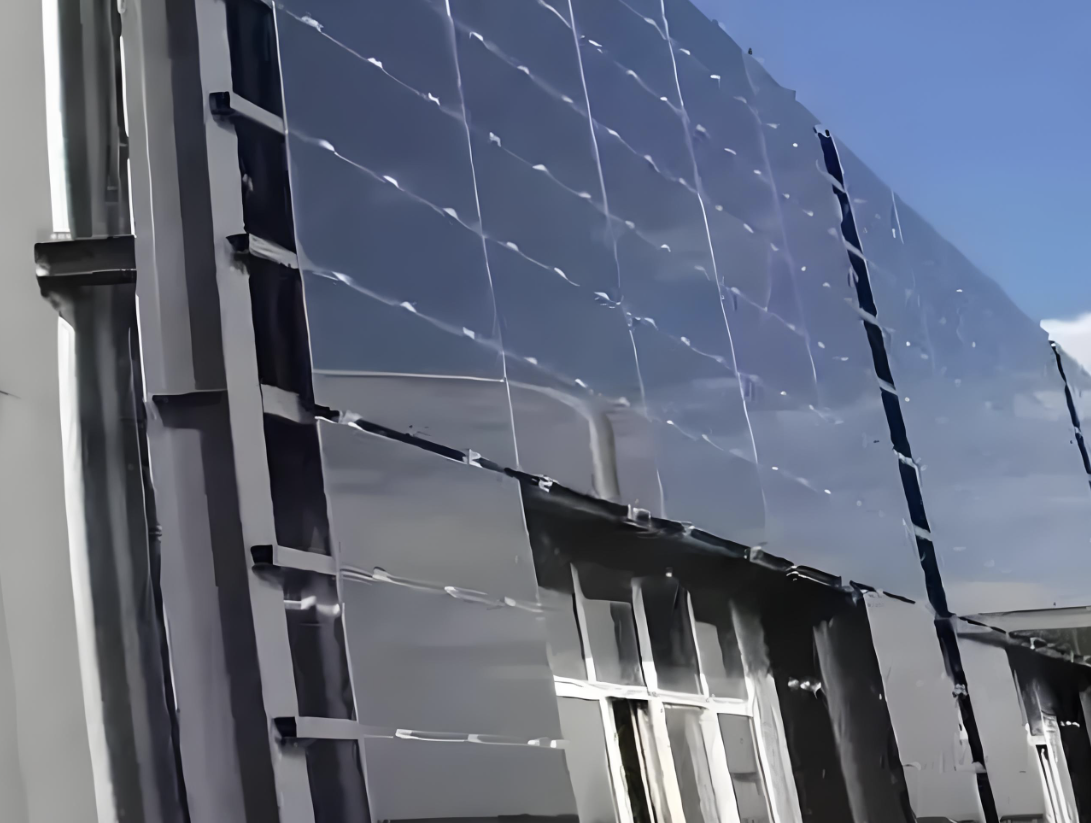

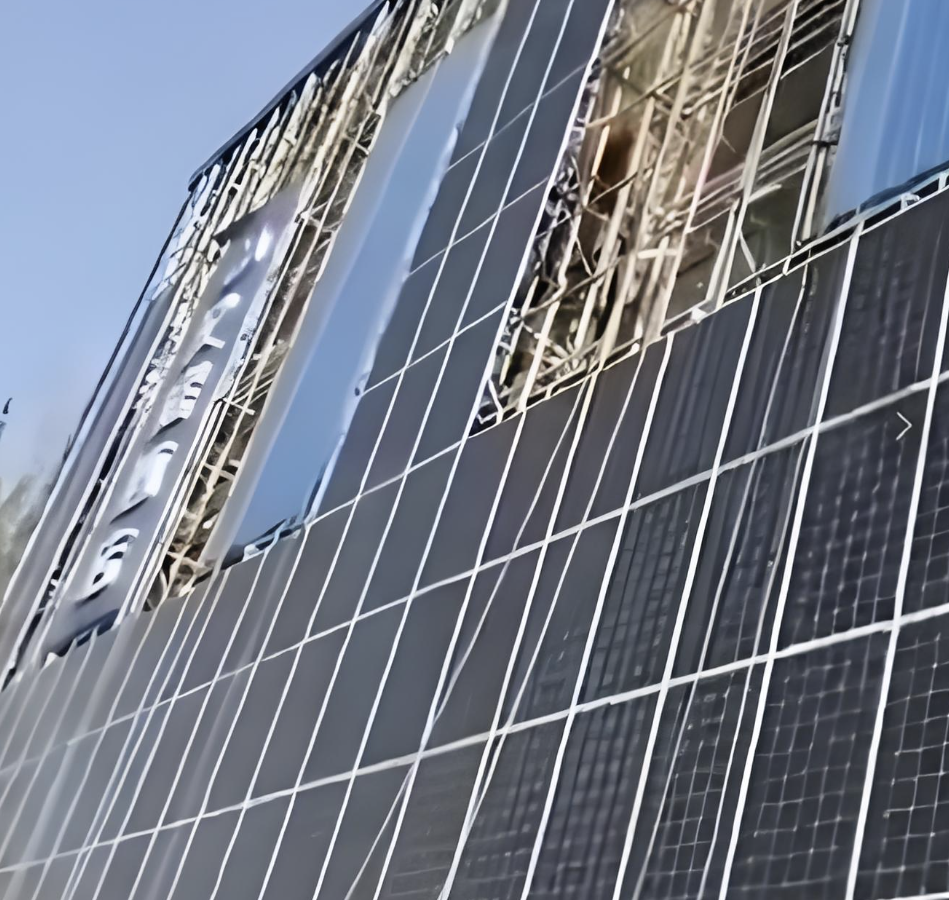

The double-sided PERC cell technology can make full use of reflected light from surrounding environments, increasing total power output by 15-20% compared to single-sided photovoltaic walls. The double-glass structure enhances impact resistance and corrosion resistance, and the concealed frame installation does not damage the overall architectural appearance. It has a 30-year service life, reducing long-term maintenance costs, and supports real-time power generation monitoring via an intelligent management system. It meets global green building certification standards such as LEED and BREEAM.
The panel consists of 6mm+6mm ultra-white tempered glass, with double-sided cell size of 166mm×166mm. The frame is made of 6063-T6 aluminum alloy, with total weight of 30kg per square meter. The operating temperature range is -40℃ to 85℃, with front-side rated power of 330W per square meter and back-side rated power of 290W per square meter. The maximum single panel size is 2600mm×1300mm, with RS485 intelligent monitoring interface.
This product is suitable for waterfront commercial buildings, office buildings near airports, office buildings around urban squares and BIPV demonstration projects. It is ideal for buildings requiring high energy self-sufficiency rates, providing clean electricity for on-site office equipment, lighting and air conditioning systems, and helping buildings achieve carbon neutrality goals.
